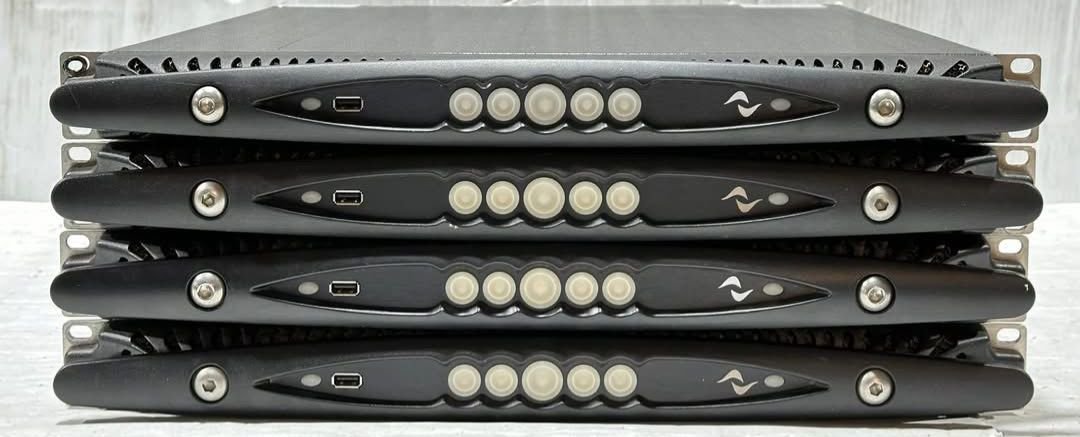

Powersoft X4 Dante – Professional 4-Channel DSP Amplifier

Powersoft X4 Dante Powerful 4-Channel Professional Amplifier

The Powersoft X4 Dante is a powerful professional four-channel amplifier designed for demanding touring, live sound, sound reinforcement and professional installation applications. Combining high-output amplification, integrated digital signal processing, advanced loudspeaker management, network control and Dante audio networking, the Powersoft X4 Dante provides a comprehensive amplification platform for modern professional audio systems.

Designed as part of the Powersoft X Series, the X4 combines power amplification and loudspeaker management in a single professional platform. Instead of relying on separate amplifiers, external DSP processors and multiple control systems, the X4 brings essential amplification and processing functions together in one rack-mounted unit.

The Powersoft X4 is available in a DSP version and a DSP plus Dante version. The Dante version adds redundant Brooklyn II based Dante networking, providing professional audio-over-IP connectivity alongside the amplifier’s analog and AES3 inputs.

With up to 5,200 W per channel at 2 ohms, 3,000 W per channel at 4 ohms and 1,600 W per channel at 8 ohms, the Powersoft X4 is designed to provide substantial output power for demanding loudspeaker systems.

The amplifier can also operate in bridge mode, providing up to 10,400 W at 4 ohms and 6,000 W at 8 ohms.

Professional Powersoft X4 Dante Amplifier

The Powersoft X4 Dante is designed for professional users who require high output, flexible signal routing and advanced loudspeaker management in a compact amplification platform.

The four-channel architecture allows the amplifier to power multiple loudspeaker sections from a single unit. Depending on the system design, the four channels can be assigned to different loudspeakers, frequency sections or system zones.

The X4 can therefore be used in a variety of professional configurations.

For example, a sound system may use separate amplifier channels for left and right main loudspeakers, subwoofers or additional fill systems. The exact configuration depends on the loudspeaker system, impedance requirements and system design.

The amplifier also supports bridge operation between channel pairs when higher output power is required for compatible loudspeaker loads.

High-Power 4-Channel Amplification

The Powersoft X4 provides four output channels with substantial power capability.

At 8 ohms, each channel can deliver up to 1,600 W.

At 4 ohms, each channel can deliver up to 3,000 W.

At 2 ohms, each channel can deliver up to 5,200 W.

The amplifier also supports bridge operation, providing up to 6,000 W at 8 ohms and 10,400 W at 4 ohms.

The total peak output of the X4 is specified at up to 20,000 W when all channels are driven under the manufacturer’s test conditions.

This level of output makes the Powersoft X4 suitable for professional loudspeaker systems requiring significant amplifier headroom and high power density.

System designers should always match amplifier output and impedance requirements to the manufacturer’s specifications for the connected loudspeakers.

Integrated DSP Loudspeaker Management

One of the major advantages of the Powersoft X4 Dante is the integration of a complete DSP platform within the amplifier.

The DSP architecture provides a wide range of signal processing functions that can be used to configure and optimize professional loudspeaker systems.

The X4 provides input processing, routing, mixing, equalization, delay, gain, polarity, crossover and limiter functions.

This means that the amplifier can perform many of the functions that would traditionally require a separate external loudspeaker processor.

For professional production companies and system engineers, integrating amplification and processing into the same platform can simplify system design and reduce the number of rack components required.

Advanced Signal Processing

The Powersoft X4 DSP provides multiple stages of signal processing.

The system supports IIR and FIR filters as well as raised-cosine filters.

Input processing can include up to 2 seconds of delay, while time alignment can provide up to 100 milliseconds of delay.

These capabilities allow system engineers to align loudspeakers, configure crossover points and shape frequency response according to the requirements of the sound system.

The amplifier also provides gain and polarity adjustment, allowing the system to be configured according to the requirements of the connected loudspeakers.

Professional Limiter Processing

The Powersoft X4 includes multiple limiter functions designed to help manage loudspeaker power and protect the connected system.

The platform provides peak limiters, RMS voltage and RMS current limiters and TruePower limiting.

TruePower limiting is designed to manage the actual power delivered to the loudspeaker rather than relying exclusively on conventional voltage-based limiting.

This can be particularly useful in professional sound reinforcement applications where loudspeaker protection and consistent performance are important.

Active DampingControl

The Powersoft X4 also features Active DampingControl.

This technology is designed to provide control over the interaction between the amplifier and connected loudspeaker load.

The result is an amplification platform designed to provide precise control and consistent performance across demanding professional loudspeaker systems.

Professional Audio Quality

The Powersoft X4 is designed to provide high-quality audio reproduction alongside its high power output.

The published specifications include a dynamic range of 114.3 dB and a damping factor greater than 5,000 at 8 ohms between 20 Hz and 500 Hz.

The amplifier has a published frequency response of 5 Hz to 30 kHz at -3 dB with a 1 W output at 8 ohms.

These characteristics provide the technical foundation for high-quality professional sound reinforcement.

The amplifier is suitable for applications where both substantial power output and accurate signal reproduction are required.

Dante Audio Networking

The Powersoft X4 Dante version adds Dante audio networking to the amplifier platform.

Dante is a professional audio-over-IP technology developed by Audinate and is widely used in modern professional audio networks.

The X4 Dante version uses a redundant Brooklyn II based Dante interface and provides 16 Dante input channels through two RJ45 connections according to Powersoft’s published documentation.

This allows digital audio signals to be transported through a compatible Ethernet-based audio network instead of relying entirely on traditional analog cabling.

For modern professional sound systems, this can provide significant flexibility in system architecture.

Dante Primary and Secondary Connections

The Powersoft X4 Dante provides two network connections for the Dante interface.

The Dante version supports primary and secondary network connections, allowing system designers to build appropriate network configurations depending on their requirements.

Redundant network configurations can be particularly useful in professional environments where system reliability and continuous audio operation are important considerations.

The exact network configuration should be designed according to the Dante network requirements and the wider infrastructure of the sound system.

Dante Integration for Professional Sound Systems

Dante networking can simplify signal distribution in professional audio environments.

Instead of running individual analog signal cables between every source and amplifier location, compatible Dante devices can exchange digital audio over a network.

This can be particularly useful in large venues, touring systems, theatres, corporate event environments and fixed installations.

The Powersoft X4 Dante can therefore be positioned within a professional audio network while receiving digital audio from compatible Dante-enabled equipment.

This provides system designers with additional flexibility when planning signal distribution.

AES3 Digital Audio

In addition to Dante and analog connectivity, the Powersoft X4 supports AES3 digital audio.

AES3 provides another digital signal path for professional audio systems.

This allows the X4 to be integrated into systems that use AES3-compatible digital audio equipment.

Having analog, AES3 and Dante connectivity available gives system designers multiple options for integrating the amplifier into different signal architectures.

Flexible Input Sources

The Powersoft X4 platform supports multiple selectable input sources.

Powersoft states that the X Series can provide up to four different selectable input sources per channel.

This provides additional flexibility when designing redundant or multi-source professional audio systems.

Depending on the configuration, system designers can select the appropriate input source for each amplifier channel.

This flexibility can be particularly useful for touring systems, installed sound systems and professional productions where multiple signal paths may be available.

Advanced Channel Routing

The X4 provides flexible channel routing rather than a simple fixed input-to-output architecture.

The amplifier’s non-boolean channel routing and signal grouping capabilities allow the system engineer to create more advanced signal distribution configurations.

This means that input signals can be routed and grouped according to the requirements of the connected loudspeakers.

For complex professional sound systems, flexible routing can reduce the need for additional external signal distribution equipment.

Loudspeaker Management

The Powersoft X4 is more than a conventional power amplifier.

It is designed as a complete loudspeaker management platform that combines amplification, DSP, routing and monitoring functions.

System engineers can configure the amplifier according to the requirements of the loudspeaker system.

Crossover filters can divide frequency ranges between different loudspeaker sections.

Equalization can be used to shape the response of the system.

Delay can be used for time alignment.

Limiters can manage the signal delivered to the loudspeakers.

Gain and polarity controls can be used during system configuration.

Together, these functions provide a comprehensive environment for professional loudspeaker management.

ArmoníaPlus Integration

The Powersoft X4 is designed to integrate with Powersoft’s ArmoníaPlus software platform.

ArmoníaPlus provides a professional environment for configuring, controlling and monitoring compatible Powersoft amplifier systems.

This allows system engineers to manage amplifier settings and monitor system operation from a computer-based control environment.

For professional production companies with multiple Powersoft amplifiers, software-based management can simplify the process of configuring and monitoring an entire amplifier inventory.

Remote Monitoring and Control

The X4 includes Ethernet connectivity for amplifier control.

The system also supports Wi-Fi connectivity for remote control and monitoring through the dedicated web app according to Powersoft’s product information.

This allows professionals to monitor and manage amplifier systems without needing to access the front or rear panel of every amplifier physically.

Remote control can be particularly useful when amplifiers are installed in racks or positioned in locations that are difficult to access during an event.

Touring Applications

The Powersoft X4 Dante is designed for demanding touring applications where high power, compact rack space and flexible system control are important.

Touring sound systems frequently require large amounts of amplifier power while maintaining manageable rack sizes.

The X4 combines four high-power output channels with integrated DSP and network connectivity.

This allows production companies to build high-performance amplifier racks without requiring a separate external DSP processor for every system.

The Dante version also provides an efficient method for integrating the amplifier into a networked digital audio infrastructure.

Live Concert Sound

The Powersoft X4 is suitable for professional concert sound systems where substantial amplifier power is required.

The four channels can be configured to power main loudspeakers, subwoofers, fills or other system components depending on the loudspeaker design.

Its integrated DSP provides the processing required to configure crossover points, equalization, delays and protection settings.

For large professional sound systems, multiple X4 amplifiers can be deployed across the system and controlled through the Powersoft software environment.

Festival Sound Systems

Large festivals often require scalable sound systems capable of delivering high output to large audiences.

The Powersoft X4 provides a high-power four-channel platform that can be used as part of a larger distributed amplifier system.

Dante connectivity can provide additional flexibility for digital signal distribution between mixing positions, system processors and amplifier locations.

The exact system architecture will depend on the festival’s audio network, loudspeaker configuration and system design.

Theatre and Performing Arts

The Powersoft X4 can also be used in theatre and performing arts environments where flexible loudspeaker management and network control are valuable.

The integrated DSP can be used to configure multiple loudspeaker zones and system sections.

Delay processing can be used for time alignment between different loudspeaker locations.

Equalization and crossover processing can be configured according to the requirements of the venue and loudspeaker system.

Corporate Events

Professional corporate events frequently require flexible sound systems that can be adapted to different room configurations.

The Powersoft X4 can provide the amplification and DSP processing required for professional event systems.

Dante connectivity can also simplify integration with compatible digital mixing consoles, stageboxes and networked audio equipment.

This makes the X4 Dante suitable for professional corporate production companies and event system integrators.

Permanent Installations

Although the X4 is categorized within Powersoft’s touring amplifier range, its functionality can also be useful in professional sound system installations.

The combination of high output power, DSP, network control and Dante connectivity provides a flexible platform for professional audio system design.

Potential applications include performing arts venues, entertainment spaces, large event facilities and other environments requiring advanced loudspeaker control.

Worldwide Power Supply

The Powersoft X4 uses a universal regulated switch-mode power supply with power factor correction.

The published nominal power requirement is 100 to 240 V plus or minus 10 percent at 50 to 60 Hz, with an operating voltage range of 90 to 264 V.

The X Series is designed to support worldwide-compatible power configurations and can operate with single-phase, bi-phase or three-phase power arrangements depending on the installation and applicable electrical configuration.

The X4 also provides true three-phase load balancing capability.

This makes the platform particularly useful for professional touring applications where equipment may need to operate in different countries and power environments.

Power Factor Correction

The X4 incorporates PFC, or power factor correction, into its power supply design.

Power factor correction helps manage the relationship between the amplifier’s power consumption and the electrical supply.

For professional audio systems with multiple high-power amplifiers, efficient power management can be an important consideration when designing the electrical infrastructure.

Protection and Reliability

Professional amplifiers need to operate reliably under demanding conditions.

The Powersoft X4 incorporates several protection systems designed to protect the amplifier and connected loudspeakers.

The platform includes protection against DC, VHF and clipping.

Powersoft also describes an innovative failure protection system designed to keep the system within its safe operating area by monitoring the power delivered to speakers in relation to the power drawn from the mains.

These protection systems are intended to help maintain reliable operation during demanding professional use.

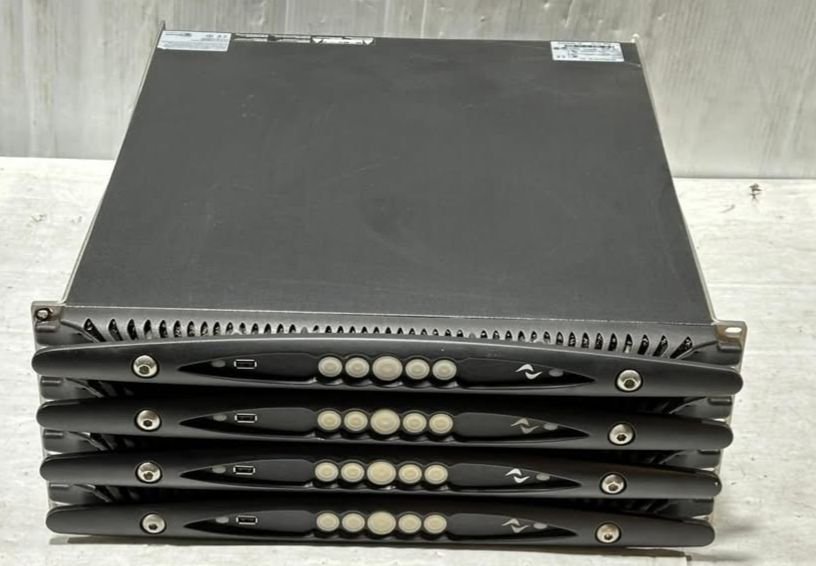

Compact Professional Amplifier Platform

The Powersoft X4 provides substantial output power in a compact rack-based amplifier platform.

The four-channel configuration means that one amplifier can serve multiple loudspeaker sections, helping reduce the number of amplifier units required in a professional rack.

When combined with integrated DSP and network connectivity, this can result in a highly capable system with fewer external processing components.

For touring companies and rental businesses, reducing rack complexity can simplify transportation, setup and system management.

Professional Rental Company Applications

The Powersoft X4 Dante is well suited to professional rental companies that provide sound systems for concerts, festivals, corporate events, theatres and other productions.

The amplifier’s flexible DSP and routing capabilities allow it to be configured for different loudspeaker systems.

A rental company can therefore use the same amplifier platform across multiple productions while adapting the DSP configuration to each system.

Network control also makes it easier for technicians to manage multiple amplifiers as part of a larger system.

System Integration

The Powersoft X4 Dante can be integrated with professional loudspeakers from a wide range of manufacturers.

The appropriate amplifier settings depend on the specific loudspeaker model, impedance, power handling and manufacturer recommendations.

Professional system engineers can use the X4’s DSP functions to configure crossover, EQ, delay, gain and limiter settings according to the requirements of the loudspeaker system.

When using manufacturer-specific presets, the correct preset and processing configuration should always be verified before operation.

Professional Audio Applications

The Powersoft X4 Dante is suitable for many professional applications, including:

Live concerts

Touring sound systems

Festival PA systems

Professional rental systems

Theatres

Performing arts venues

Corporate events

Conference systems

Large-scale sound reinforcement

Entertainment venues

Professional installations

Stadium and arena sound systems

The combination of high output, DSP, routing and Dante connectivity provides flexibility across these different applications.

Powersoft X4 Dante Technical Specifications

Product Type: Four-channel professional amplifier with DSP and optional Dante

Number of Output Channels: 4

Output Channels: 4 mono, bridgeable per channel pair

Maximum Output per Channel at 8 Ohms: 1,600 W

Maximum Output per Channel at 4 Ohms: 3,000 W

Maximum Output per Channel at 2 Ohms: 5,200 W

Bridge Output at 8 Ohms: 6,000 W

Bridge Output at 4 Ohms: 10,400 W

Peak Total Output: 20,000 W

Maximum Unclipped Output Voltage: 175 V peak

Maximum Output Current: 130 A peak

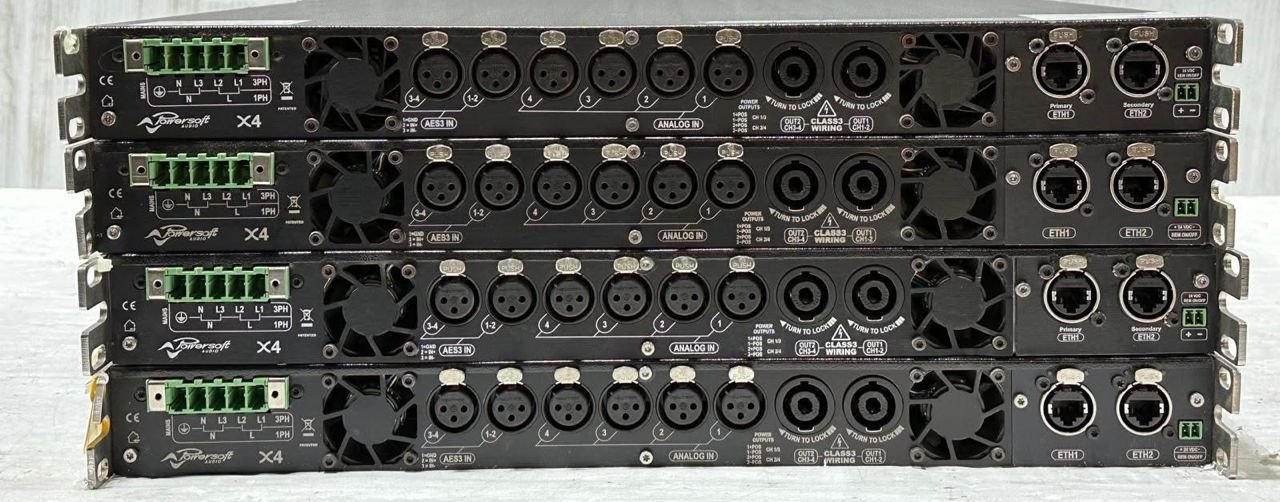

Analog Inputs: 4

AES3 Inputs: 4 channels through 2 XLR connections

Dante Inputs: 16 channels through 2 RJ45 connections on Dante version

Audio Networking: Dante by Audinate

Dante Interface: Redundant Brooklyn II based interface

DSP: Integrated

Signal Processing: IIR, FIR and raised-cosine filters

Input Delay: Up to 2 seconds

Time Alignment Delay: Up to 100 milliseconds

Frequency Response: 5 Hz to 30 kHz

Dynamic Range: 114.3 dB

Damping Factor: Greater than 5,000 at 8 ohms

Input Impedance: 20 kOhm balanced

Input Acceptance: +27 dBu

Power Supply: Universal regulated switch mode with PFC

Nominal Power Requirement: 100 to 240 V ±10 percent, 50 to 60 Hz

Operating Voltage: 90 to 264 V

Idle Power Consumption: Less than 100 W

Maximum Power Consumption: Less than 3,000 W

Operating Temperature: 0 to 35 degrees Celsius

Connectivity: Ethernet, AES3, analog and Dante depending on configuration

Software Integration: ArmoníaPlus

Remote Control: Ethernet and Wi-Fi functionality

Protection: DC, VHF, clipping and system protection

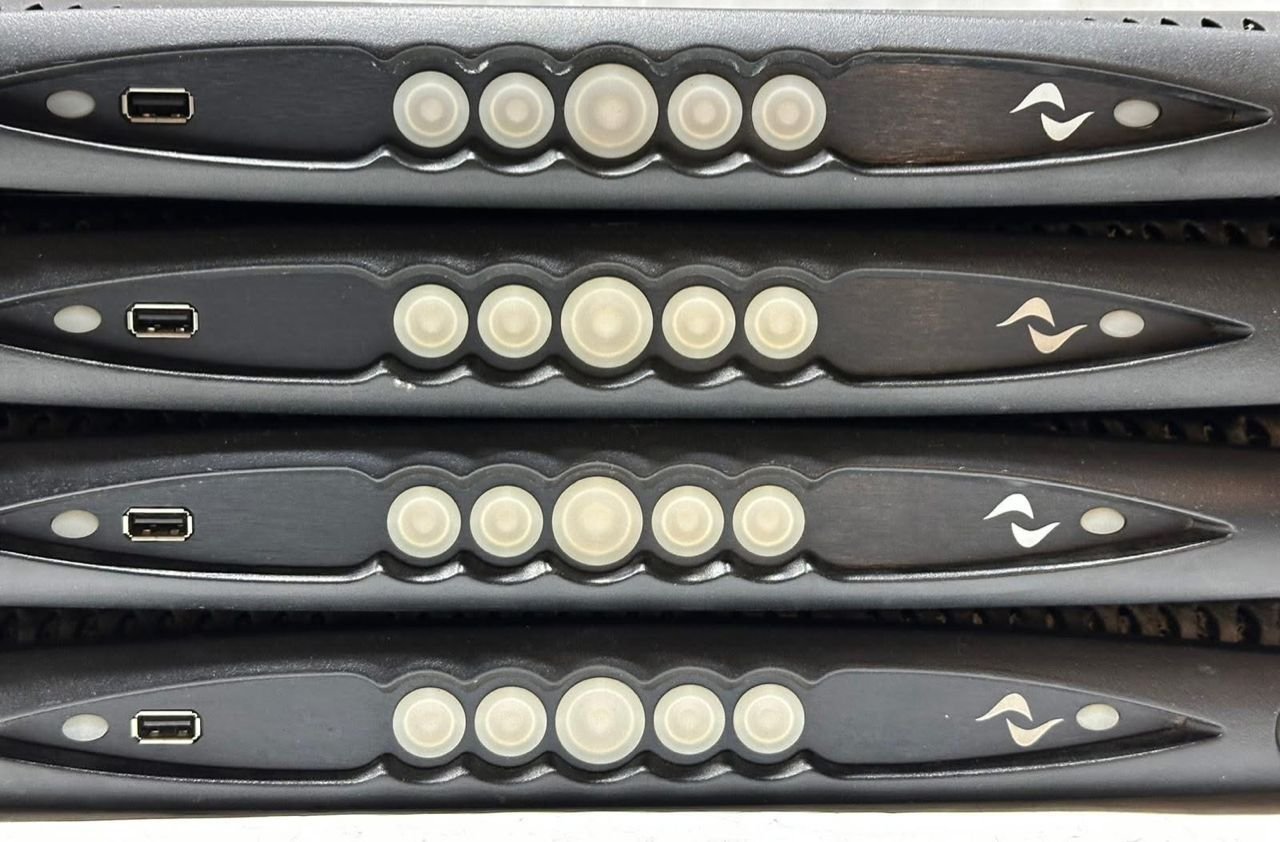

Buy Powersoft X4 Dante

If you are looking for a powerful professional amplifier for touring, live sound, rental production, installation or large-scale sound reinforcement, the Powersoft X4 Dante provides a flexible four-channel platform with high output power, integrated DSP and professional Dante networking.

With up to 5,200 W per channel at 2 ohms, 3,000 W per channel at 4 ohms and 1,600 W per channel at 8 ohms, the X4 provides the power required for demanding professional loudspeaker systems.

The integrated DSP reduces the need for external loudspeaker processing while providing crossover, equalization, delay, routing, gain, polarity and limiter functions.

The Dante-enabled version also provides a modern networked audio solution for professional systems that require digital signal distribution.

The combination of high-power amplification, advanced DSP, flexible routing, Dante connectivity, AES3 support, Ethernet control and professional protection makes the Powersoft X4 Dante a comprehensive solution for modern sound reinforcement.

For touring companies, professional rental businesses, system integrators and sound engineers, the X4 can provide a flexible platform that can be adapted to different loudspeaker systems and production requirements.

Contact Bsound Pro Audio for current availability, pricing, shipping options and configuration information.

If you are building a professional PA system, upgrading an amplifier rack or looking for a high-output Dante-enabled amplifier with integrated DSP, the Powersoft X4 Dante provides a powerful and flexible platform for demanding professional audio applications.

Contact Bsound Pro Audio today to check availability for the Powersoft X4 Dante amplifier.
