Lab Gruppen PLM 12K44 12,000W Touring Amplifier

The Lab Gruppen PLM 12K44 is a high-power professional amplifier designed for demanding touring, live sound and large-scale sound reinforcement applications. Combining four channels of amplification with advanced Lake Processing, Dante digital audio networking and Rational Power Management, the PLM 12K44 brings amplification, loudspeaker management and digital audio connectivity together in a single professional platform.

This Lab Gruppen PLM 12K44 amplifier is offered in excellent condition and is suitable for professional sound companies, touring productions, rental companies, venues, festivals and system integrators looking for a high-power amplification platform.

Lab Gruppen describes the PLM 12K44 as a 12,000-watt amplifier with four flexible output channels, Lake digital signal processing and digital audio networking for touring applications. The manufacturer also identifies the PLM 12K44 as part of its PLM+ platform.

Lab Gruppen PLM 12K44 Professional Amplifier

The Lab Gruppen PLM 12K44 combines four channels of high-power amplification with integrated signal processing and network connectivity. Rather than requiring separate amplifier, DSP and audio networking hardware for many system configurations, the PLM platform integrates these functions into one professional unit.

This approach makes the PLM 12K44 particularly relevant for modern professional sound reinforcement systems where system technicians need centralized control over amplification, loudspeaker processing, monitoring and digital audio distribution.

The amplifier provides a four-input, four-output configuration and supports analog, AES3 and Dante networked audio inputs. Lab Gruppen specifies four channels of analog input, four AES3 digital inputs and eight dual-redundant Dante networked digital inputs.

For touring companies and professional rental operations, this combination can help reduce the number of separate devices required in an amplifier system.

12,000-Watt Four-Channel Amplification

At the heart of the Lab Gruppen PLM 12K44 is its high-power four-channel amplifier platform.

The PLM 12K44 provides a total available output power of 12,000 watts, distributed across four amplifier channels. The architecture is designed to provide flexibility when powering different loudspeaker loads.

Instead of treating every amplifier channel as having a fixed power allocation, Lab Gruppen’s Rational Power Management technology allows available power to be allocated according to the requirements of the connected loudspeakers.

This can be particularly useful when a single amplifier is being used to power different sections of a professional PA system.

For example, different channels may be assigned to low-frequency, mid/high-frequency or monitor loudspeaker systems depending on the requirements of the particular installation or touring configuration.

Rational Power Management

One of the defining technologies of the Lab Gruppen PLM 12K44 is Rational Power Management, commonly referred to as RPM.

RPM allows the available amplifier power to be allocated across the four output channels according to the connected load requirements. Lab Gruppen explains that unused power capacity on one channel can be made available to other channels where additional output power is required.

This approach can help system designers avoid unnecessarily specifying additional amplifiers simply because one loudspeaker load requires more power than another.

RPM can also help reduce rack space and improve the efficiency of an amplifier inventory. Lab Gruppen states that the technology can allow fewer amplifiers or lower-cost amplifier models to fulfill particular system power requirements.

For professional rental companies, this flexibility can be useful when the same amplifier inventory needs to support different loudspeaker systems and event configurations.

Lake Processing

The Lab Gruppen PLM 12K44 incorporates integrated Lake Processing, providing extensive loudspeaker management and signal-processing capabilities.

Lab Gruppen identifies Lake Processing as a core technology within its PLM platform. The system provides functions including gain, delay, crossover, equalization and limiting.

The PLM 12K44 includes four full-featured Lake modules with four discrete channels of audio throughput.

The integrated processor supports advanced EQ and crossover functions, allowing the amplifier to operate as part of a complete loudspeaker management system.

This can eliminate the need for some external processing equipment, depending on the system design.

For professional sound engineers and system technicians, having Lake Processing integrated into the amplifier provides direct access to loudspeaker processing and protection functions from the same platform used to manage the amplifier.

LimiterMax Loudspeaker Protection

The Lab Gruppen PLM 12K44 also incorporates Lake’s LimiterMax peak and RMS limiting technology.

LimiterMax is designed to provide loudspeaker protection while maintaining audio performance. Lab Gruppen identifies LimiterMax as part of its integrated Lake Processing environment.

The amplifier can therefore form part of a complete loudspeaker management system where crossover, equalization, delay and limiting are handled within the same processing platform.

This is particularly useful for professional PA systems where accurate loudspeaker protection and consistent system configuration are important.

Dante Digital Audio Networking

Another important feature of the Lab Gruppen PLM 12K44 is its integrated Dante digital audio networking capability.

The PLM 12K44 supports Dante networked digital audio alongside its analog and AES3 connectivity. Lab Gruppen specifies eight dual-redundant Dante networked digital inputs.

Dante networking allows the amplifier to be incorporated into compatible digital audio infrastructures without requiring every audio signal to be connected through conventional analog cabling.

For touring systems, festivals, corporate productions and fixed installations, networked audio can simplify signal distribution and provide greater flexibility when multiple digital devices are interconnected.

The PLM 12K44 therefore combines high-power amplification with modern digital audio connectivity in a single rack-based platform.

Analog and AES3 Connectivity

Although the Lab Gruppen PLM 12K44 supports Dante networking, it can also work with conventional professional audio infrastructures.

The amplifier provides four channels of analog input as well as AES3 digital input capability. Lab Gruppen specifies Iso-Float ground isolation as part of the analog input architecture.

This allows the PLM 12K44 to integrate into systems using different signal-delivery methods.

A sound system can therefore be designed around analog, AES3 or Dante sources depending on the requirements of the production.

Professional Touring Applications

The Lab Gruppen PLM 12K44 was designed with touring applications in mind.

Lab Gruppen describes the PLM 12K44 as part of its PLM touring amplifier platform and highlights the integration of amplification, signal processing, networking, audio I/O, power supply and connected mains management.

This makes the amplifier suitable for demanding professional applications such as:

* Concert touring
* Festival sound systems
* Large-scale live events
* Professional rental companies
* Touring production companies
* Large venues
* Corporate event production
* Theatre sound systems
* Professional installations
* Large-format PA systems
* Subwoofer amplification
* Main PA amplification
* Monitor systems

The flexible four-channel architecture allows the same amplifier platform to be used for different loudspeaker configurations.

CAFÉ Configuration and Monitoring

The Lab Gruppen PLM 12K44 is also compatible with Lab Gruppen’s CAFÉ software environment.

CAFÉ stands for Configuring Amplifiers For the Environment. Lab Gruppen describes CAFÉ as a software suite for configuring and monitoring amplifier systems, including RPM and other power-management functions.

The software can assist system designers and technicians with amplifier configuration, power allocation and monitoring.

Lab Gruppen states that CAFÉ can estimate average mains current draw and generated heat and can be used together with the amplifier’s power-management technologies for more accurate system planning. https://www.labgruppen.com

This is especially relevant to large touring systems where mains distribution, thermal management and amplifier inventory all need to be considered.

Efficient Power Management

The PLM 12K44 incorporates technologies intended to improve how available electrical power is managed.

The amplifier’s RPM system allows output power to be allocated according to load requirements, while Lab Gruppen’s Breaker Emulation Limiter technology is designed to help manage mains power and avoid unwanted breaker trips when the amplifier is operating under demanding conditions.

For large professional sound systems, power management can be an important consideration because amplifier racks may be operating alongside lighting, video and other event-production equipment.

The ability to configure and monitor amplifier power requirements can therefore help system technicians plan appropriate mains distribution.

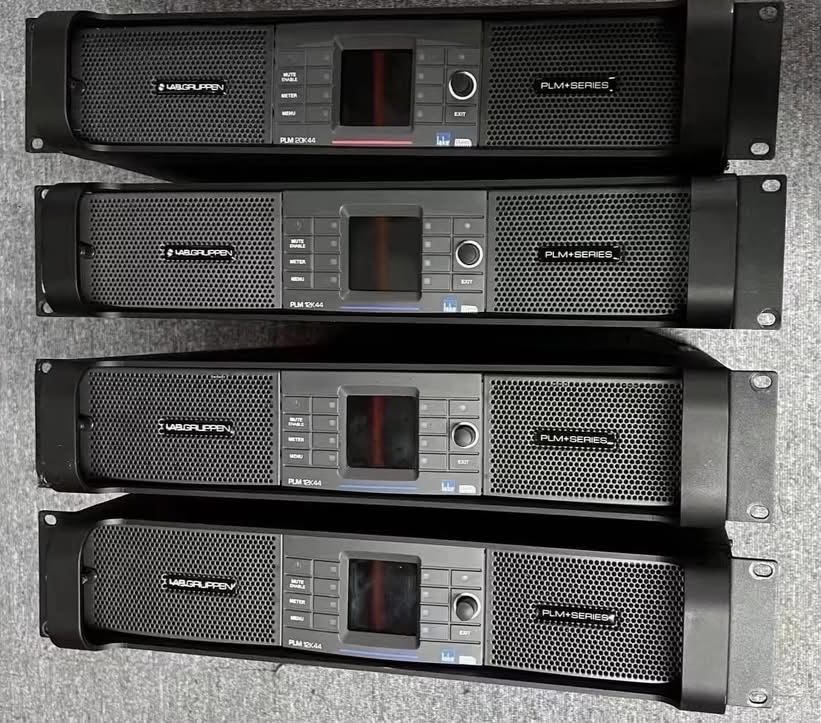

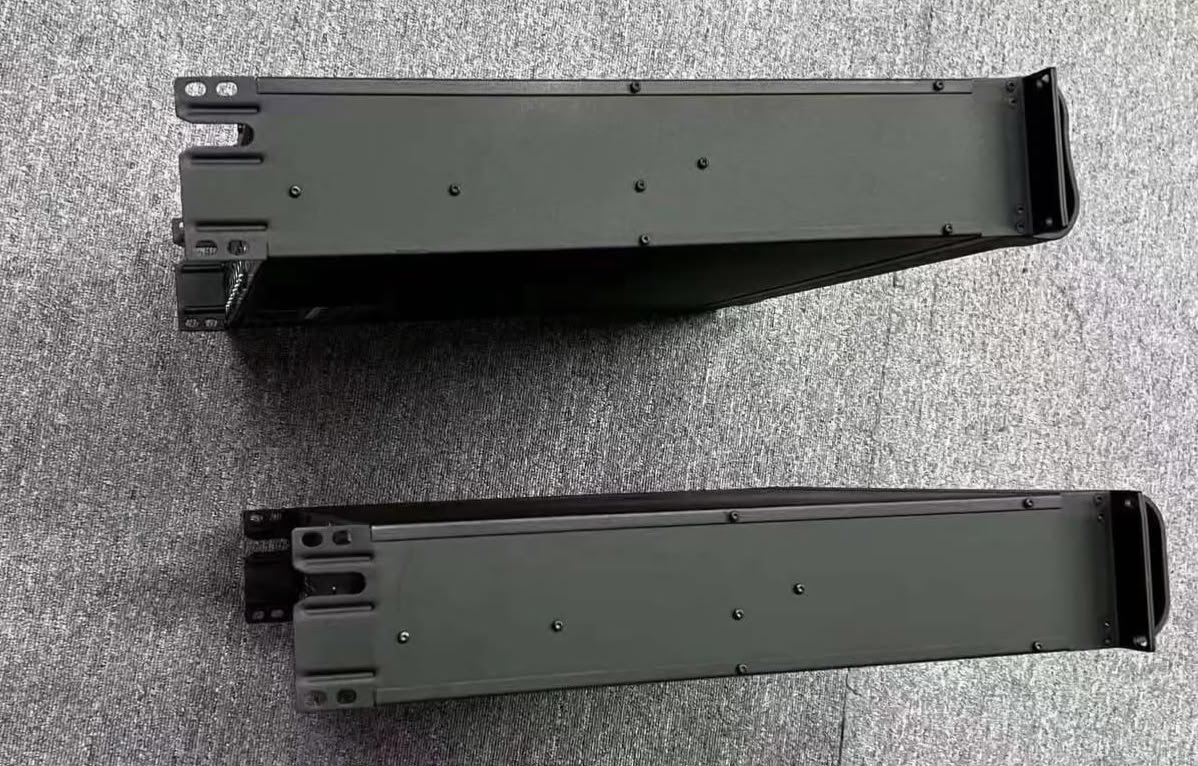

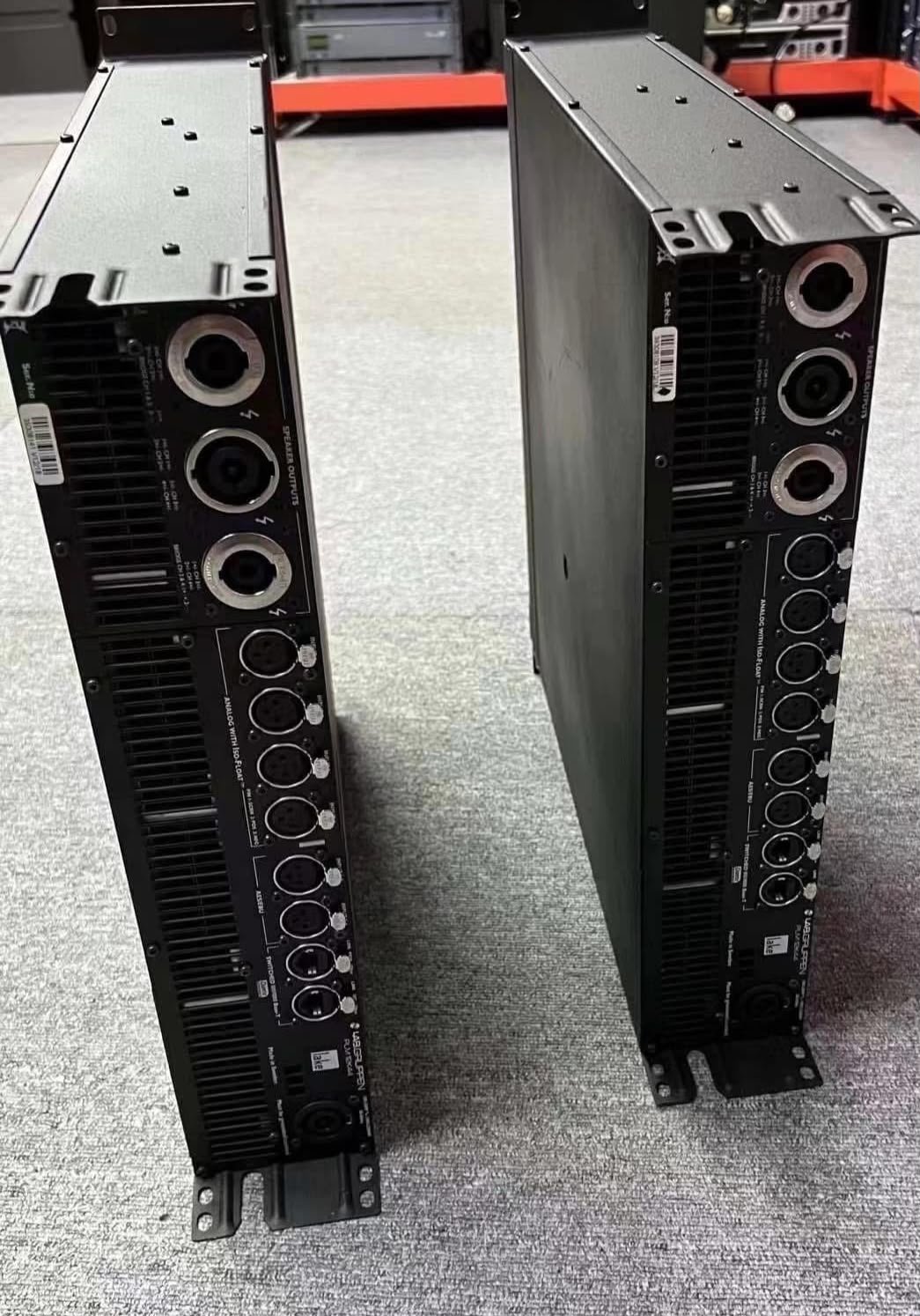

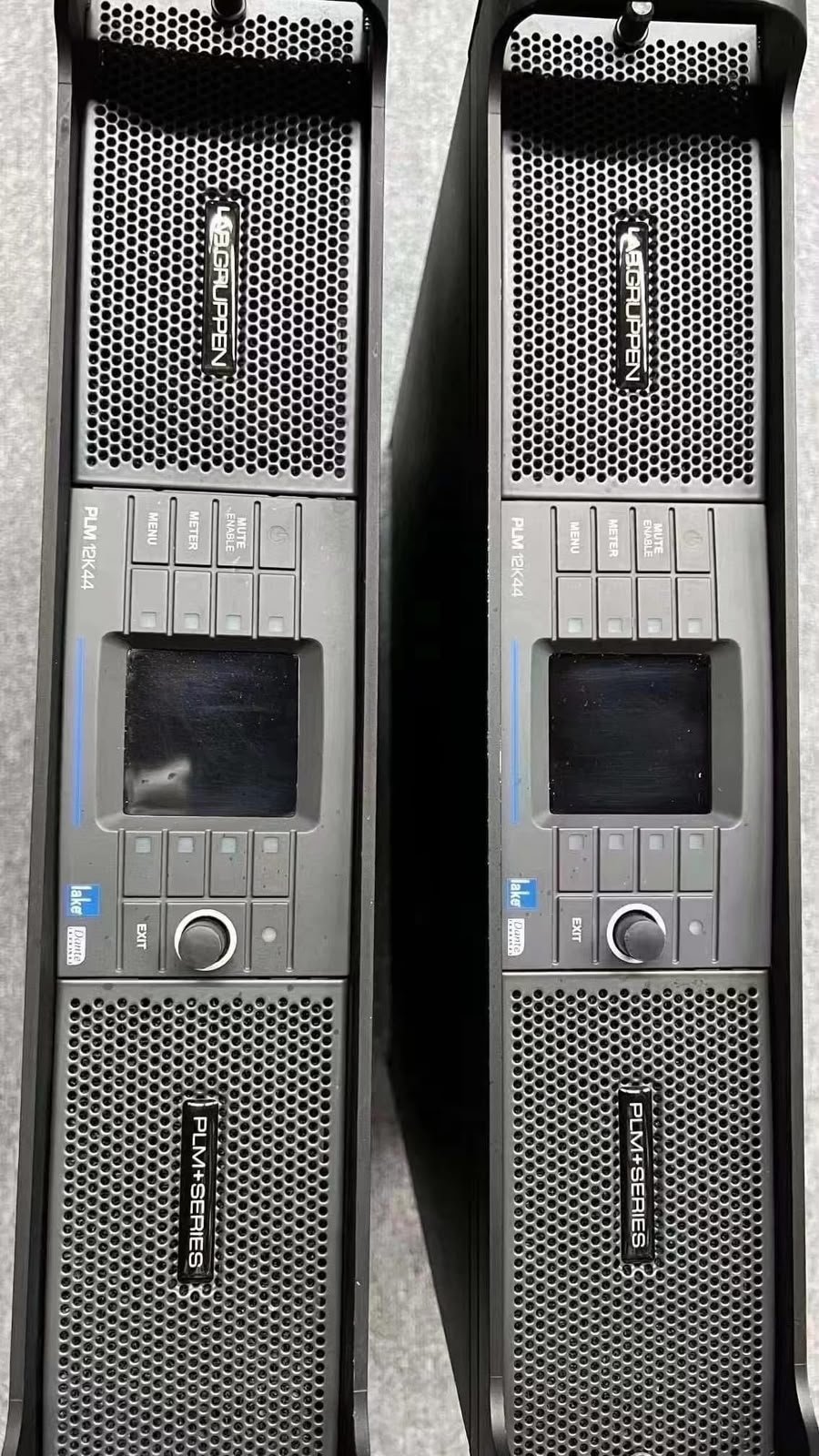

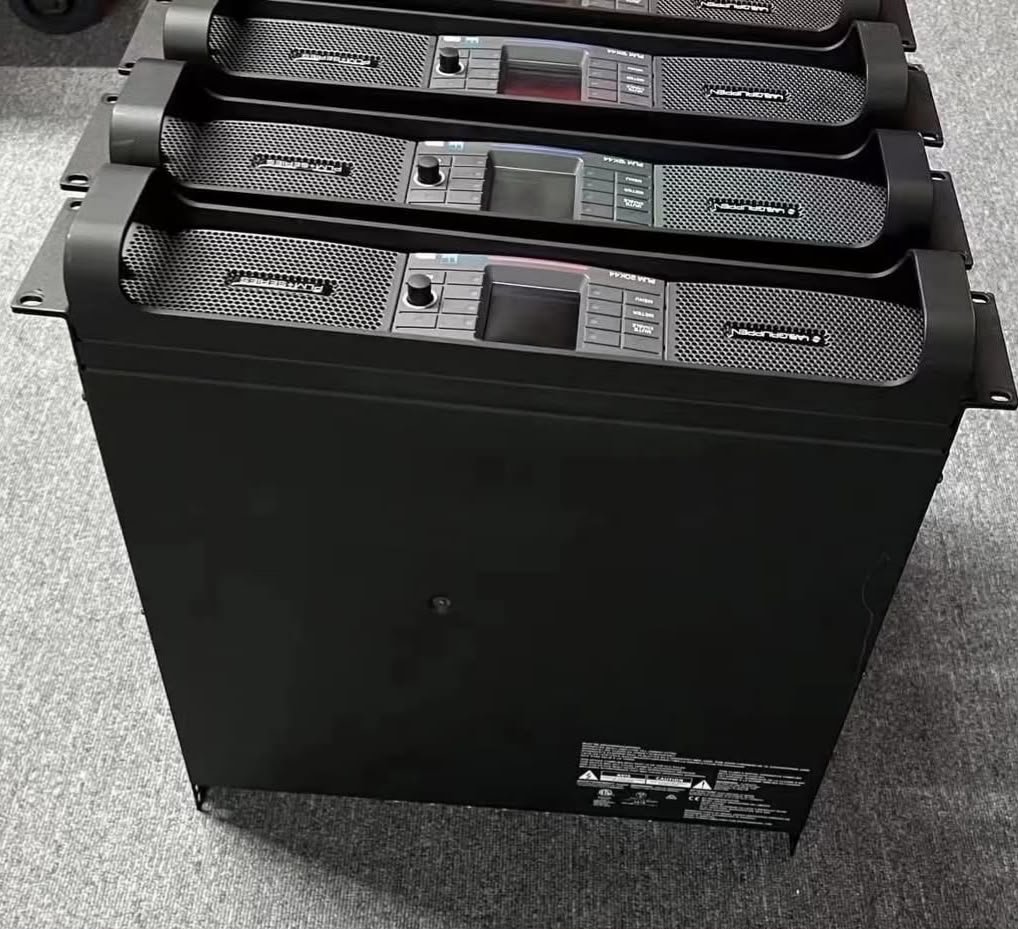

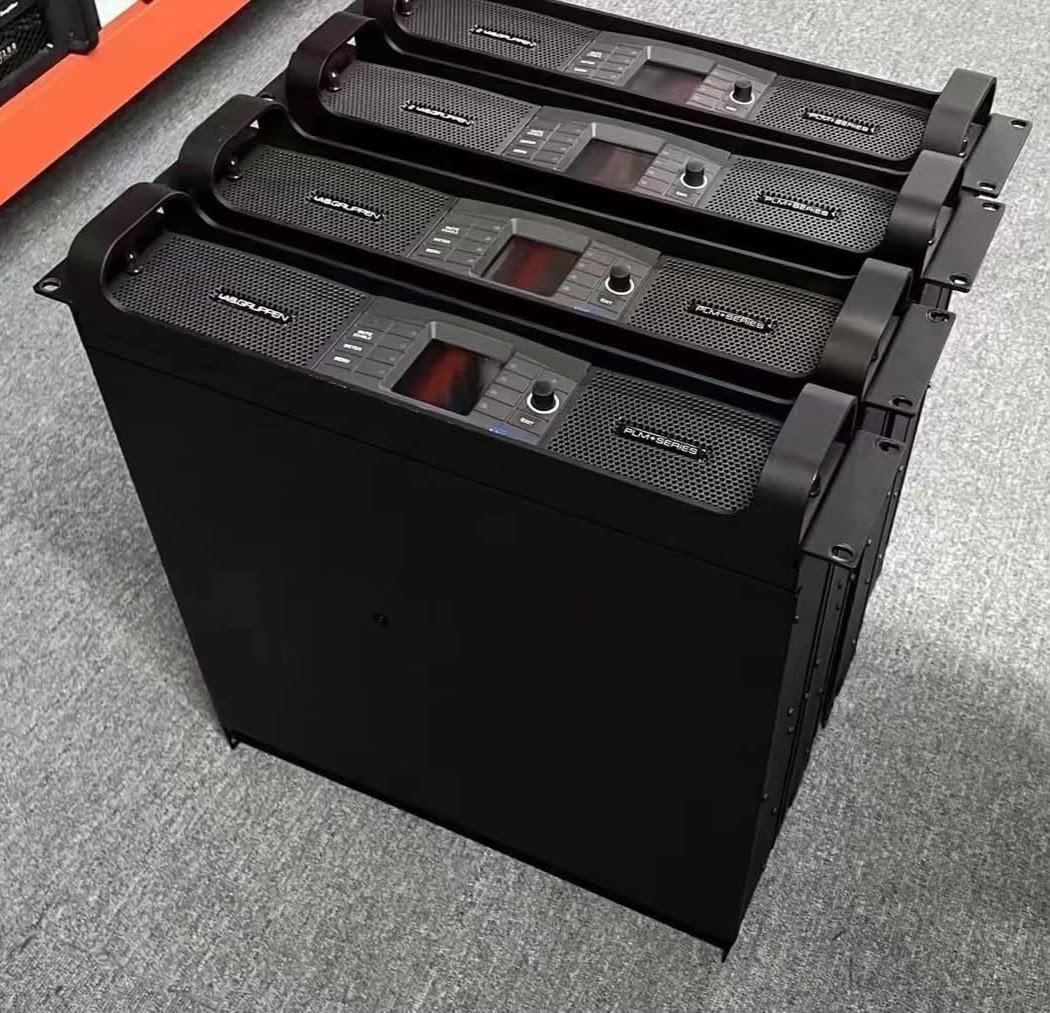

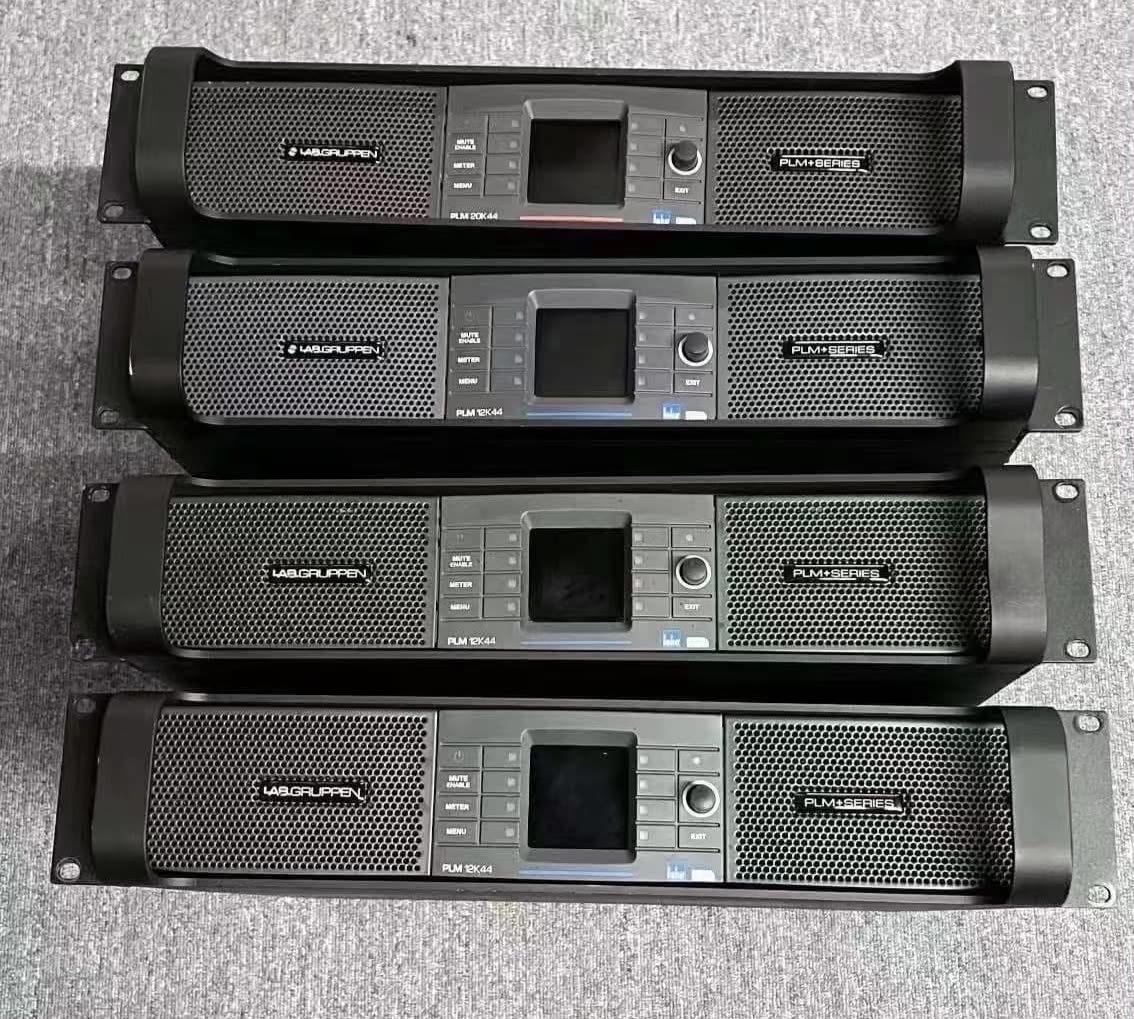

Used Lab Gruppen PLM 12K44 in Excellent Condition

This listing is for a used Lab Gruppen PLM 12K44 amplifier in excellent condition.

The amplifier is intended for buyers looking for professional-grade amplification for touring, rental, installation or live sound applications.

A used Lab Gruppen PLM 12K44 can also be an option for companies expanding an existing Lab Gruppen amplifier inventory or building a system around compatible loudspeakers and Lake Processing workflows.

For used professional audio equipment, buyers should inspect the amplifier’s physical condition, connectors, display, controls, cooling system and amplifier outputs before deployment.

The condition of the specific unit offered should be confirmed from the actual equipment and photographs supplied with the listing.

Lab Gruppen PLM 12K44 System Integration

The Lab Gruppen PLM 12K44 can be integrated into professional loudspeaker systems requiring multiple amplifier channels and advanced loudspeaker processing.

Its four-channel architecture allows different sections of a sound system to be powered from a single amplifier platform.

Depending on the loudspeaker system, channels can be assigned to different frequency bands or loudspeaker groups while Lake Processing handles crossover, EQ, delay and limiting functions.

This makes the PLM 12K44 relevant to system designers who want amplification and loudspeaker management integrated into the same platform.

Lab Gruppen PLM 12K44 for Professional Sound Companies

For professional sound companies, the Lab Gruppen PLM 12K44 provides a combination of high output power, four-channel operation, Lake Processing and Dante connectivity.

Rental companies can use this type of amplifier platform across different productions because its flexible architecture allows it to be configured for different loudspeaker requirements.

The integrated processing platform can also simplify system deployment by reducing the requirement for additional external loudspeaker-management hardware.

For touring applications, the combination of amplification, processing, networking and monitoring can help technicians manage complex sound systems from a centralized platform.

Technical Specifications
Specification Lab Gruppen PLM 12K44

Product Type Professional touring power amplifier

Model PLM 12K44

Total Available Power 12,000 W

Amplifier Channels 4

Configuration 4-in / 4-out

Signal Processing Lake Processing

Network Audio Dante

Digital Audio AES3

Analog Audio 4 channels

Power Management Rational Power Management (RPM)

Limiting LimiterMax peak and RMS limiting

Software Lake Controller / CAFÉ

Application Touring and professional sound reinforcement

Condition Excellent condition

Product Status Legacy model
The core specifications above are based on Lab Gruppen’s official PLM 12K44 documentation.

Lake Controller and System Management

The Lab Gruppen PLM 12K44 can be managed using Lake Controller software.

Lab Gruppen describes Lake Controller as providing a unified interface for controlling Lake Processing and monitoring amplifier status and connected loudspeaker loads.

This gives system technicians access to amplifier and loudspeaker-management functions without having to operate separate processing systems for every part of the signal chain.

For larger PA systems, centralized control can make system configuration and monitoring more practical.

Ideal Applications for the PLM 12K44

The Lab Gruppen PLM 12K44 is suitable for a broad range of professional audio applications.

Typical applications include:

Touring PA systems:
The four-channel architecture, high power output, integrated Lake Processing and Dante networking make the PLM 12K44 suitable for professional touring environments.

Festival sound systems:
The amplifier can be integrated into large-scale PA systems where multiple amplifier channels and centralized loudspeaker processing are required.

Rental companies:
The flexible power-management architecture allows the same amplifier inventory to support different loudspeaker configurations.

Large venues:
The PLM 12K44 can form part of permanent or semi-permanent professional sound reinforcement systems.

Corporate events:
Its networked audio capabilities allow integration into modern digital production systems.

Professional installations:
The integrated processing and system management capabilities provide an alternative to separate amplifier and DSP configurations.

Why Choose the Lab Gruppen PLM 12K44?

The Lab Gruppen PLM 12K44 brings together several functions that are normally distributed across multiple pieces of equipment.

Its four-channel 12,000-watt amplification platform provides substantial available output power, while Lake Processing adds advanced loudspeaker management.

Dante networking provides a digital audio connection option, while AES3 and analog inputs provide compatibility with other professional audio equipment.

RPM adds flexibility to the distribution of available amplifier power across channels, making the platform adaptable to different loudspeaker loads.

For professional sound companies, touring productions and rental operations, these features make the PLM 12K44 a versatile amplifier platform.

Purchase a Used Lab Gruppen PLM 12K44

This Lab Gruppen PLM 12K44 amplifier is available in excellent condition.

It is an appropriate option for professional audio companies, rental companies, touring productions, venues, system integrators and sound engineers looking for a high-power four-channel amplifier with integrated Lake Processing and Dante networking.

Contact BSound Pro Audio to confirm current availability, condition, quantity, pricing, shipping options and any additional accessories included with the amplifier https://bsoundpa.com

BSound Pro Audio also offers a range of professional loudspeakers, amplifiers, processors and complete sound reinforcement systems.

If you are building a complete professional PA system, our team can also assist with amplifier and loudspeaker compatibility, system configuration, packaging and shipping requirements.
