L-Acoustics LA-RAK II AVB

L-Acoustics LA-RAK II AVB Flyable Touring Rack

The L-Acoustics LA-RAK II AVB is a professional 9U flyable touring rack designed to provide a complete amplification, audio distribution, power distribution and network solution for L-Acoustics sound systems. Built for demanding touring and live-event environments, the LA-RAK II AVB integrates three L-Acoustics LA12X amplified controllers, two LS10 AVB switches, an LA-PANEL II audio distribution panel and an LA-POWER II power distribution panel into a rugged, prewired rack system. (L-Acoustics)

With 12 channels of amplification and an output capability of up to 40,000 W at 2.7 ohms, the L-Acoustics LA-RAK II AVB provides a centralized platform for powering and networking professional L-Acoustics loudspeaker systems. The rack accepts Milan-AVB, AES/EBU and analog inputs, while its two LS10 switches provide Milan-certified seamless network redundancy for reliable audio distribution and control. (L-Acoustics)

The supplied rack configuration shown in the product photographs includes three LA12X amplified controllers and two LS10 AVB switches, matching the core amplification and network architecture specified by L-Acoustics.

What Is the L-Acoustics LA-RAK II AVB?

The L-Acoustics LA-RAK II AVB is a complete touring rack designed to simplify the deployment of L-Acoustics amplification and networked audio systems.

Rather than transporting individual amplifiers, network switches and distribution panels separately, the LA-RAK II AVB combines the necessary electronics into one integrated 9U touring rack. The internal components are prewired for audio, control and power, creating a plug-and-play platform that reduces setup time and simplifies system transportation.

The rack contains three LA12X amplified controllers. Each LA12X provides four amplification channels, resulting in a total of 12 channels of amplification within one LA-RAK II AVB. L-Acoustics specifies up to 3,300 W per channel at 2.7 ohms for the LA12X, with additional output ratings at 4 and 8 ohms. https://L-Acoustics.com

The rack also incorporates two LS10 AVB switches. These switches provide the network infrastructure required for Milan-AVB audio and control distribution and allow seamless network redundancy when configured according to the L-Acoustics architecture. (Prdstglaxxwe001)

LA-RAK II AVB 9U Touring Rack Architecture

The LA-RAK II AVB is built around a rugged 9U rack structure.

Its architecture is designed specifically for professional touring and production environments where electronics must be transported safely and deployed quickly.

The rack combines:

* Three LA12X amplified controllers
* Two LS10 AVB switches
* One LA-PANEL II audio distribution panel
* One LA-POWER II power distribution panel
* Internal audio, network and power cabling
* Protective front and rear doors
* Four handles
* A detachable dolly board
* Coupling bars for stacking and flying configurations

L-Acoustics specifies the rack at 101.5 kg / 223.8 lb with its contents. The external structure uses polyethylene, aluminium and steel, with LEXAN® protective doors. (L-Acoustics)

Three L-Acoustics LA12X Amplified Controllers

At the heart of the LA-RAK II AVB are three LA12X amplified controllers.

The LA12X is a 4 x 4 amplified controller with integrated DSP, networking and loudspeaker management capabilities. Each controller provides four amplifier channels, giving a complete LA-RAK II AVB a total of 12 amplification channels.

L-Acoustics specifies the LA12X at:

* 4 × 3,300 W at 2.7 ohms
* 4 × 2,600 W at 4 ohms
* 4 × 1,400 W at 8 ohms

The LA12X uses a universal switched-mode power supply with power factor correction and supports 100 V to 240 V ±10%, 50–60 Hz. It also provides Milan-AVB, AES/EBU and analog audio connectivity. (L-Acoustics)

The integrated DSP provides flexible 4 × 4 routing, built-in equalization and L-Acoustics loudspeaker processing functions. This allows the amplifier controllers to operate as part of a complete L-Acoustics loudspeaker system rather than functioning as conventional standalone power amplifiers.

Two LS10 AVB Network Switches

The LA-RAK II AVB includes two L-Acoustics LS10 AVB switches.

The LS10 is an Avnu-certified AVB switch designed for audio and control distribution. Within the LA-RAK II AVB architecture, the two LS10 units provide the network infrastructure for Milan-AVB audio and control.

The redundant architecture is particularly important in professional touring applications. The two LS10 switches are integrated with the LA12X controllers to provide seamless network redundancy following the Milan protocol.

The LS10 provides eight EtherCON connections as well as SFP cages that can be used for additional copper or optical connectivity. This makes the network architecture suitable for larger professional production environments where reliable signal distribution is essential. (Prdstglaxxwe001)

Milan-AVB Network Redundancy

One of the defining characteristics of the L-Acoustics LA-RAK II AVB is its Milan-certified network architecture.

The rack supports Milan-AVB audio and control distribution with seamless network redundancy. This allows professional sound engineers and system technicians to build robust networked audio systems while maintaining the dedicated L-Acoustics signal and control architecture.

For touring productions, network redundancy can be particularly valuable because audio distribution and system control are fundamental to the operation of the sound system.

The LA-RAK II AVB is therefore more than an amplifier rack. It is an integrated amplification and network distribution platform designed around the L-Acoustics ecosystem.

LA-PANEL II Audio Distribution

The LA-RAK II AVB incorporates an LA-PANEL II audio distribution panel.

The LA-PANEL II provides the physical interface for distributing analog and digital audio signals to the three LA12X amplified controllers.

The rack provides two 19-point CA-COM analog input connectors and rear analog XLR inputs. It also provides AES/EBU connectivity using Neutrik XLR connectors.

The integrated distribution architecture helps keep connections organized and reduces the amount of loose cabling required during touring deployment.

According to the L-Acoustics system documentation, the LA-PANEL II distributes six discrete analog signals and three stereo AES/EBU signals to the three LA12X controllers, with link-out capability to other racks. (Prdstglaxxwe001)

LA-POWER II Power Distribution

The LA-RAK II AVB also includes LA-POWER II for integrated power distribution.

LA-POWER II is designed to distribute mains power to the three LA12X controllers while balancing the amplifiers across the available phases.

For European operation, the rack provides three-phase 32 A IEC 60309 input and link connections. For US operation, it provides a 30 A NEMA L21-30P connection.

The rack also includes auxiliary power outlets. The US configuration provides a NEMA 5-15 outlet, while the EU configuration provides a Type F Schuko outlet.

This makes the LA-RAK II AVB suitable for international touring applications where the rack may need to operate across different power environments. (L-Acoustics)

Worldwide 100–240 V Compatibility

The LA-RAK II AVB is designed for international touring environments.

Its LA12X amplified controllers use universal power supplies supporting 100–240 V ±10%, 50–60 Hz. The rack itself provides different power input arrangements for European and US operating modes.

This international compatibility can simplify equipment deployment for rental companies, touring productions and professional sound providers operating across different regions.

However, the appropriate power input configuration, electrical protection and local regulations must always be verified before operation.

Flyable Touring Rack Design

The LA-RAK II AVB is specifically designed as a flyable touring rack.

The rack structure includes coupling bars and coupling rails that allow compatible racks to be mechanically connected for stacking or flying applications.

L-Acoustics documentation states that the RK 9U rack can be stacked up to three LA-RAK II AVB racks and can be flown up to four LA-RAK II AVB racks when using the appropriate flying hardware. (Prdstglaxxwe001)

The dedicated LA-RAK BUMP is engineered for flying up to four LA-RAK II racks and provides the appropriate mechanical interface for supported flown configurations. (Prdstglaxxwe001)

This makes the LA-RAK II AVB particularly useful for touring productions where amplification racks may need to be flown close to the loudspeaker system or positioned in dedicated production areas.

Rugged Touring Construction

Touring equipment must withstand repeated transportation, loading, unloading and deployment.

The LA-RAK II AVB uses a rugged rack construction designed specifically for professional touring.

The 9U rack incorporates a shock-absorbing inner steel frame, an external aluminium structure and highly resistant polyethylene panels. Retractable LEXAN® doors protect the electronics during transportation.

This construction helps protect the integrated LA12X controllers, LS10 switches and distribution components while allowing the rack to remain practical for professional handling. (Prdstglaxxwe001)

Protective Front and Rear Doors

The LA-RAK II AVB features retractable protective doors at the front and rear.

The doors provide protection for the electronics and connectors during transport while allowing technicians to access the equipment during setup.

At the rear, hinge-mounted panels protect the analog, digital and network connections and help maintain an organized cable environment.

For touring companies, this integrated protection can reduce the amount of additional packaging required when transporting the rack between venues.

Detachable Dolly Board

The LA-RAK II AVB is supplied with a detachable dolly board.

The dolly board allows the rack to be moved around production areas, warehouses and venues more easily.

The rack also includes four handles for handling and positioning.

Together, the dolly board, handles and rugged rack structure make the LA-RAK II AVB practical for touring crews and professional rental operations.

LA-RAK II AVB for Touring Companies

The L-Acoustics LA-RAK II AVB is designed around the needs of touring productions.

A touring system needs to be efficient to transport, fast to deploy and reliable during operation. Integrating three LA12X controllers, two LS10 switches and the required power and signal distribution into one rack simplifies the equipment package.

Instead of assembling multiple separate rack components at every venue, technicians can deploy a preconfigured amplification and networking platform.

This can help standardize system deployment between venues and reduce setup complexity.

LA-RAK II AVB for Rental Companies

Professional audio rental companies can benefit from the integrated architecture of the LA-RAK II AVB.

The rack can serve as a standardized amplification package for L-Acoustics loudspeaker systems and can be integrated into larger touring inventories.

Its compatibility with L-Acoustics networking, amplification and distribution components makes it particularly relevant for rental companies that already maintain L-Acoustics loudspeaker inventories.

The rack can also be stacked or flown using the appropriate manufacturer-approved hardware, providing additional flexibility for event production.

LA-RAK II AVB for Live Events

For concerts, festivals, corporate events, theatre productions and other professional applications, the LA-RAK II AVB provides an integrated platform for amplification and networked audio.

The rack can be deployed as part of a larger L-Acoustics sound system and can receive audio through Milan-AVB, AES/EBU or analog connections.

Its 12 amplification channels provide substantial system-driving capacity while the integrated LS10 switches provide the network infrastructure required for Milan-based audio and control.

Compatible L-Acoustics Loudspeaker Systems

The LA12X amplified controller is designed to operate L-Acoustics loudspeaker systems using the manufacturer’s presets and processing architecture.

L-Acoustics documentation identifies the LA-RAK II AVB as a touring rack for L-Acoustics systems, and the LA12X is specified as an amplified controller capable of operating L-Acoustics loudspeaker systems. (L-Acoustics)

Depending on the system configuration, the LA-RAK II AVB can therefore be incorporated into professional systems using L-Acoustics loudspeaker products such as K Series, Kara II, KS Series and other compatible systems.

The exact amplifier allocation, presets and system configuration should always follow the applicable L-Acoustics system documentation and Soundvision design.

LA-RAK II AVB Connectivity

The rack provides several audio and network connectivity options.

Milan-AVB

Milan-AVB provides networked audio and control connectivity with seamless redundancy.

AES/EBU

The rack includes AES/EBU connectivity through dedicated XLR connections.

Analog

Analog audio can be distributed through the LA-PANEL II architecture.

Network

The two LS10 switches provide the Ethernet-based infrastructure required for the rack’s AVB audio and control architecture.

This combination gives sound engineers multiple ways to integrate the LA-RAK II AVB into a professional sound system.

LA-RAK II AVB Technical Specifications

Brand: L-Acoustics

Model: LA-RAK II AVB

Product type: Flyable touring rack

Rack size: 9U

Amplification: 12 channels

Amplified controllers: 3 × LA12X

Network switches: 2 × LS10

Audio distribution: LA-PANEL II

Power distribution: LA-POWER II

Maximum output power: Up to 40,000 W at 2.7 ohms

Audio inputs: Milan-AVB, AES/EBU and analog

Network: Milan-certified seamless network redundancy

EU power input: Three-phase 32 A IEC

US power input: 30 A NEMA

Weight with content: 101.5 kg / 223.8 lb

Rack material: Polyethylene, aluminium and steel external structure

Protective doors: LEXAN®

Handling: Four handles and detachable dolly board

Stacking: Up to three LA-RAK II AVB racks

Flying: Up to four LA-RAK II AVB racks using appropriate flying hardware

These specifications are based on current L-Acoustics product information and system documentation. https://L-Acoustics.com

LA-RAK II AVB Dimensions

The LA-RAK II AVB is a 9U touring rack. The manufacturer’s current product page provides the rack’s physical data and construction information, while detailed CAD and product documentation are available through the L-Acoustics Documentation Center. (L-Acoustics)

For shipping, transport planning or installation work where exact external dimensions are critical, we recommend verifying the dimensions against the manufacturer’s current CAD files or product documentation rather than relying on approximate measurements.

This is particularly important when preparing flight cases, transport vehicles, road cases or custom storage systems.

LA-RAK II AVB and System Reliability

Professional touring audio systems require more than amplifier power.

Signal distribution, network connectivity, power distribution and mechanical protection all contribute to reliable operation.

The LA-RAK II AVB combines these functions into one integrated platform.

The three LA12X controllers provide amplification and DSP. The two LS10 switches provide AVB network connectivity and redundancy. LA-PANEL II manages audio distribution, while LA-POWER II manages mains distribution.

The result is a coordinated rack architecture designed specifically for L-Acoustics professional sound systems.

LA-RAK II AVB for Professional System Integration

System engineers can use the LA-RAK II AVB as part of a complete L-Acoustics system design.

The rack’s networked architecture allows the LA12X controllers to be integrated into a Milan-AVB workflow while the analog and AES/EBU interfaces provide alternative connection methods.

This flexibility allows the rack to be incorporated into different professional production environments.

The exact signal routing and amplifier allocation should be determined according to the loudspeaker system, venue requirements and L-Acoustics system design tools.

Buying a Used L-Acoustics LA-RAK II AVB

When purchasing a used L-Acoustics LA-RAK II AVB, buyers should evaluate the condition of the entire rack rather than only the amplifier fronts.

Important inspection points include:

* LA12X amplifier condition
* LCD displays
* Front-panel controls
* Amplifier connectors
* LS10 AVB switches
* Network connectors
* Audio distribution connectors
* Power distribution components
* Internal wiring
* Front and rear doors
* Rack frame
* Dolly board
* Wheels and handles
* Coupling hardware
* Signs of impact or deformation
* Evidence of water or moisture exposure
* Serial numbers

The three LA12X controllers and two LS10 switches should also be checked individually if the rack is being purchased as a complete package.

Condition of the Available Rack

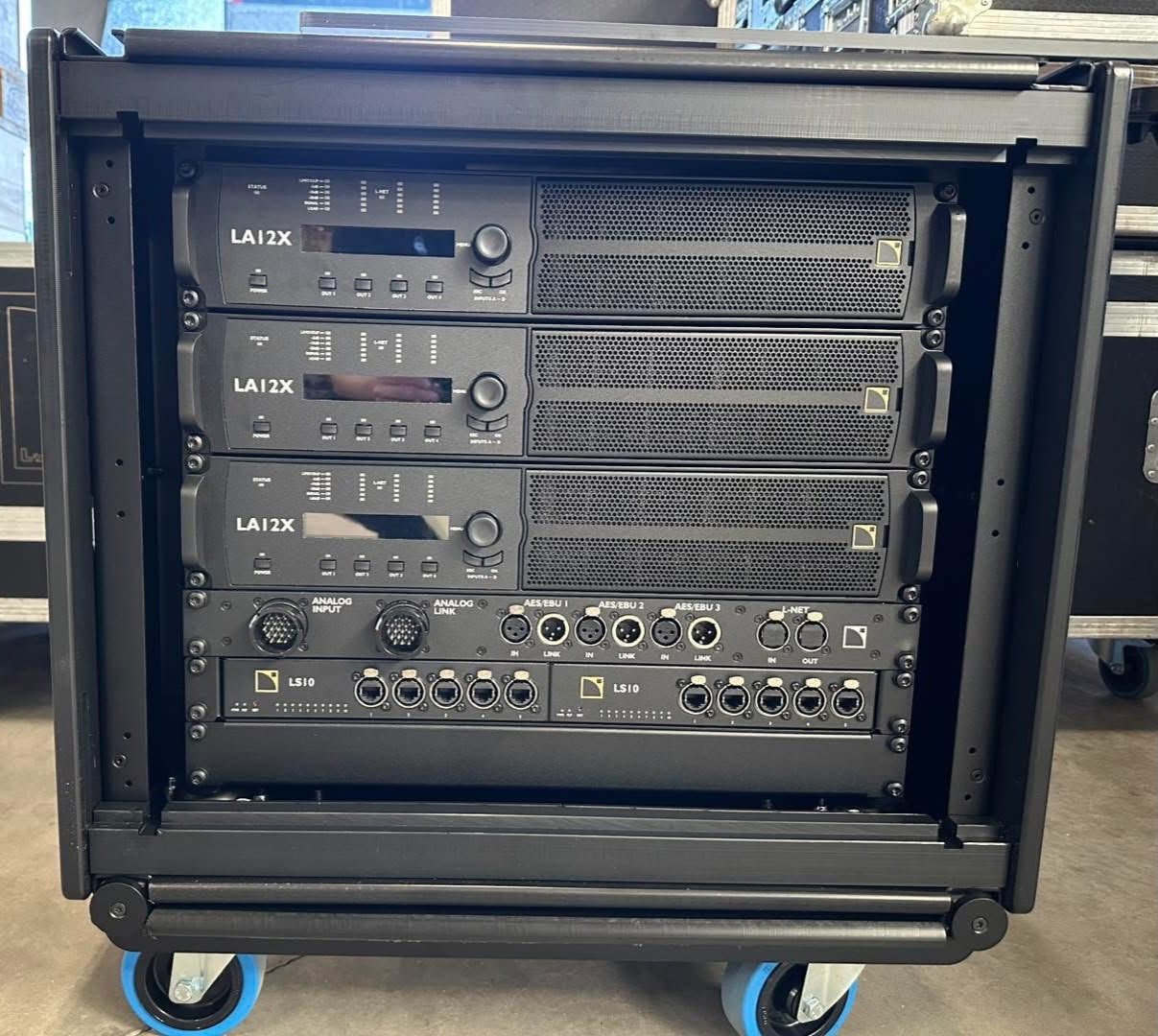

The photographs associated with this listing show an L-Acoustics LA-RAK II AVB containing three LA12X amplified controllers and two LS10 AVB switches.

Buyers should review the supplied photographs carefully for the visible condition of the rack and electronics.

For used professional audio equipment, we recommend confirming the exact condition, operational status and included accessories before completing a purchase.

Additional photographs, videos or technical information can be provided upon request.

Why Choose the L-Acoustics LA-RAK II AVB?

The L-Acoustics LA-RAK II AVB combines amplification, DSP, network switching, audio distribution and power distribution in a single professional touring rack.

Its main advantages include:

* Three integrated LA12X amplified controllers
* Twelve channels of amplification
* Two LS10 AVB switches
* Milan-certified seamless network redundancy
* Analog, AES/EBU and Milan-AVB connectivity
* Integrated LA-PANEL II audio distribution
* Integrated LA-POWER II power distribution
* Rugged 9U touring construction
* Detachable dolly board
* Protective front and rear doors
* Stacking and flying capability
* International power compatibility
* Plug-and-play internal wiring

For professional L-Acoustics users, this integrated approach can make transportation, deployment and system management more efficient.

Professional Touring Rack for L-Acoustics Systems

The LA-RAK II AVB was developed specifically for professional L-Acoustics systems.

L-Acoustics introduced the LA-RAK II AVB as a flyable touring rack providing twelve channels of amplification in a 9U frame. The manufacturer designed the rack around three LA12X amplified controllers, two LS10 AVB switches and internally prewired audio, control and power distribution. (L-Acoustics)

This architecture makes the LA-RAK II AVB a practical solution for productions that require a high-density, organized amplification package.

L-Acoustics LA-RAK II AVB Availability

If you are looking for an L-Acoustics LA-RAK II AVB, contact Bsound Pro Audio to check current availability. https://bsoundpa.com

We can provide information about the available rack, its condition, included LA12X amplified controllers, LS10 switches and associated accessories.

For professional rental companies, production companies and sound engineers, we can also help confirm the equipment configuration before purchase.

Visit our contact page to request availability, photographs, pricing or additional information.

Buy L-Acoustics LA-RAK II AVB

Looking for a professional L-Acoustics LA-RAK II AVB flyable touring rack?

This 9U touring rack provides an integrated platform containing three LA12X amplified controllers, two LS10 AVB switches, LA-PANEL II and LA-POWER II. With 12 channels of amplification, Milan-certified seamless network redundancy and support for Milan-AVB, AES/EBU and analog inputs, it is designed for professional L-Acoustics sound reinforcement applications. (L-Acoustics)

Whether you are expanding a rental inventory, preparing a touring system, replacing an existing amplification rack or building a complete L-Acoustics system, the LA-RAK II AVB provides a professional and integrated solution.

Contact Bsound Pro Audio today for current availability, condition details, photographs and purchasing information. https://bsoundpa.com/contact-us/

Frequently Asked Questions About L-Acoustics LA-RAK II AVB

What is the L-Acoustics LA-RAK II AVB?

The L-Acoustics LA-RAK II AVB is a 9U flyable touring rack designed for professional L-Acoustics sound systems. It contains three LA12X amplified controllers, two LS10 AVB switches, LA-PANEL II and LA-POWER II. (L-Acoustics)

How many amplifiers are inside the LA-RAK II AVB?

The LA-RAK II AVB contains three L-Acoustics LA12X amplified controllers. Each LA12X provides four amplifier channels, giving the rack a total of 12 amplification channels.

What is the power output of the LA-RAK II AVB?

L-Acoustics specifies the LA-RAK II AVB at up to 40,000 W at 2.7 ohms. The actual system output depends on the amplifier configuration and loudspeaker system being driven. (L-Acoustics)

Does the LA-RAK II AVB support Milan AVB?

Yes. The LA-RAK II AVB uses Milan-certified network architecture with seamless network redundancy. (L-Acoustics)

What network switches are included?

The LA-RAK II AVB includes two L-Acoustics LS10 AVB switches. (L-Acoustics)

What inputs does the LA-RAK II AVB support?

The LA-RAK II AVB supports Milan-AVB, AES/EBU and analog audio inputs. (L-Acoustics)

Is the LA-RAK II AVB flyable?

Yes. The LA-RAK II AVB is specifically designed as a flyable touring rack. With the appropriate flying hardware, up to four LA-RAK II AVB racks can be flown in the manufacturer’s specified configuration. (Prdstglaxxwe001)

How many LA-RAK II AVB racks can be stacked?

The RK 9U rack can be stacked up to three LA-RAK II AVB racks using the appropriate coupling hardware. (Prdstglaxxwe001)

How much does the LA-RAK II AVB weigh?

L-Acoustics specifies the LA-RAK II AVB at 101.5 kg / 223.8 lb with its contents. (L-Acoustics)

What is the rack size?

The LA-RAK II AVB uses a 9U touring rack structure.

Is the LA-RAK II AVB suitable for international touring?

Yes. The LA12X controllers use universal power supplies supporting 100–240 V ±10%, 50–60 Hz, while the rack provides different power input configurations for European and US applications. (L-Acoustics)

What is included in an LA-RAK II AVB?

The standard architecture includes three LA12X amplified controllers, two LS10 AVB switches, one LA-PANEL II, one LA-POWER II, two doors, cables and coupling bars. (L-Acoustics)

Can the LA-RAK II AVB power L-Acoustics loudspeakers?

Yes. The LA12X amplified controllers are designed to operate L-Acoustics loudspeaker systems using the manufacturer’s processing and preset architecture. (L-Acoustics)

Is LA-RAK II AVB suitable for rental companies?

Yes. Its integrated amplification, networking and distribution architecture makes it suitable for professional rental inventories and touring production systems.

Where can I buy an L-Acoustics LA-RAK II AVB?

Contact Bsound Pro Audio to check current availability, condition, pricing and included equipment. https://bsoundpa.com/contact-us/

Technical Summary

Brand: L-Acoustics
Model: LA-RAK II AVB
Category: Touring Rack
Rack size: 9U
Amplification: 12 channels
Amplifiers: 3 × LA12X
Network switches: 2 × LS10
Audio distribution: LA-PANEL II
Power distribution: LA-POWER II
Network: Milan-AVB
Redundancy: Seamless network redundancy
Inputs: Milan-AVB, AES/EBU, Analog
Maximum output: Up to 40,000 W at 2.7 ohms
Weight with content: 101.5 kg / 223.8 lb
Construction: Polyethylene, aluminium and steel
Doors: Retractable LEXAN®
Handling: Four handles and detachable dolly board
Stacking: Up to 3 racks
Flying: Up to 4 racks with appropriate hardware

The above technical information is based on L-Acoustics’ current product page and official system documentation. (L-Acoustics)

Contact Bsound Pro Audio

If you are looking to purchase an L-Acoustics LA-RAK II AVB, contact Bsound Pro Audio for current stock availability and additional product information. https://bsoundpa.com/contact-us/



We can provide further photographs, condition details and purchasing information for the available rack.

Contact Bsound Pro Audio to discuss your requirements and check availability.
