Meyer Sound 2100-LFC Low-Frequency Control Element | Excellent Condition

Meyer Sound 2100-LFC Low-Frequency Control Element in Excellent Condition

The Meyer Sound 2100-LFC is a high-output, self-powered low-frequency control element designed for demanding professional sound reinforcement applications. Combining a powerful 21-inch long-excursion driver, integrated Class D amplification, advanced processing and professional networking capabilities, the Meyer Sound 2100-LFC provides extended low-frequency performance in a compact and efficient professional enclosure.

This Meyer Sound 2100-LFC is offered in excellent condition and is suitable for professional touring companies, rental companies, concert productions, festivals, venues, corporate events and sound system integrators looking for high-performance Meyer Sound low-frequency equipment.

The Meyer Sound 2100-LFC operates from 30 Hz to 125 Hz, allowing it to extend the low-frequency response of compatible Meyer Sound line array systems. Meyer Sound specifically designed the 2100-LFC to complement products including PANTHER and other Meyer Sound linear line array systems.

With a single 21-inch long-excursion driver and integrated self-powered amplification, the Meyer Sound 2100-LFC provides a complete low-frequency solution without requiring a separate external amplifier rack for the loudspeaker.

The 2100-LFC is designed for both flown and ground-stacked deployment and can also be configured in standard or cardioid arrangements when the appropriate system accessories and configurations are used.

Meyer Sound 2100-LFC Professional Subwoofer

The Meyer Sound 2100-LFC is a professional low-frequency control element engineered for applications where high acoustic output, extended low-frequency response and reliable system integration are required.

Unlike a conventional passive subwoofer that requires a separate amplifier, the 2100-LFC is self-powered. The amplifier, processing and loudspeaker driver are integrated into the enclosure, simplifying system deployment and reducing the need for external amplification racks.

The integrated system combines a single 21-inch driver with a Class D amplifier and internal processing. Meyer Sound designed the system to maintain linear performance during demanding program material while providing the low-frequency extension required by modern large-format sound systems.

The result is a professional low-frequency enclosure that can be integrated directly into a Meyer Sound system with appropriate signal, power and networking connections.

21-Inch Long-Excursion Driver

At the heart of the Meyer Sound 2100-LFC is a single 21-inch long-excursion cone driver.

The large-format driver is designed to reproduce powerful low-frequency energy while maintaining linear performance across the operating range.

The driver uses four voice coils and has a nominal impedance of 4 ohms.

The large driver format allows the 2100-LFC to generate substantial low-frequency output from a single enclosure, making it suitable for professional concert, touring and event applications.

The 21-inch transducer is combined with the cabinet design and integrated amplification system to provide a controlled low-frequency solution for professional sound reinforcement.

30 Hz to 125 Hz Frequency Response

The Meyer Sound 2100-LFC has an operating frequency range of 30 Hz to 125 Hz.

This extended frequency range allows the 2100-LFC to reproduce the low-frequency content required for modern music production, live concerts, festivals and large-scale professional sound systems.

The 30 Hz lower operating frequency provides deep low-frequency extension, while the upper range allows the 2100-LFC to integrate effectively with compatible Meyer Sound line array loudspeakers.

The exact acoustic response of a deployed system depends on the configuration, processing, environment and system design.

For professional applications, Meyer Sound system design tools can be used to predict system coverage and SPL according to the intended deployment.

8000W Peak Power

The Meyer Sound 2100-LFC incorporates a powerful integrated amplification system.

Meyer Sound’s product information specifies up to 8000 watts of peak power for the 2100-LFC, while the technical documentation specifies 1200 watts maximum long-term continuous power and 2400 watts burst power under its stated measurement conditions.

This combination provides the amplifier headroom required for demanding low-frequency program material while maintaining an efficient self-powered architecture.

Because the amplifier is integrated into the enclosure, the 2100-LFC does not require a separate external power amplifier for normal operation.

Self-Powered Meyer Sound Low-Frequency System

One of the major advantages of the Meyer Sound 2100-LFC is its self-powered architecture.

The integrated amplifier and processing system eliminate the need for conventional external amplifier racks dedicated to the loudspeaker.

This can simplify system design, cabling and deployment.

For touring productions, reducing the number of external amplification components can also help simplify equipment transportation and setup.

The self-powered design allows the loudspeaker to receive audio and AC power directly while the internal electronics provide the amplification and processing required by the system.

For professional production companies, this can provide a practical approach to building large-scale sound reinforcement systems.

Milan AVB Networking

The Meyer Sound 2100-LFC includes a Milan-certified AVB digital audio input.

This allows the loudspeaker to be integrated into modern networked audio systems using Milan AVB technology.

The digital input uses a Neutrik etherCON TOP connector.

The 2100-LFC also provides telemetry through its Ethernet connection, allowing loudspeaker information to be transmitted over the network and monitored through compatible software.

Meyer Sound’s Nebra software can be used to monitor telemetry data from the loudspeaker.

This networked capability can be particularly valuable for large professional productions where system technicians need centralized access to loudspeaker status and monitoring information.

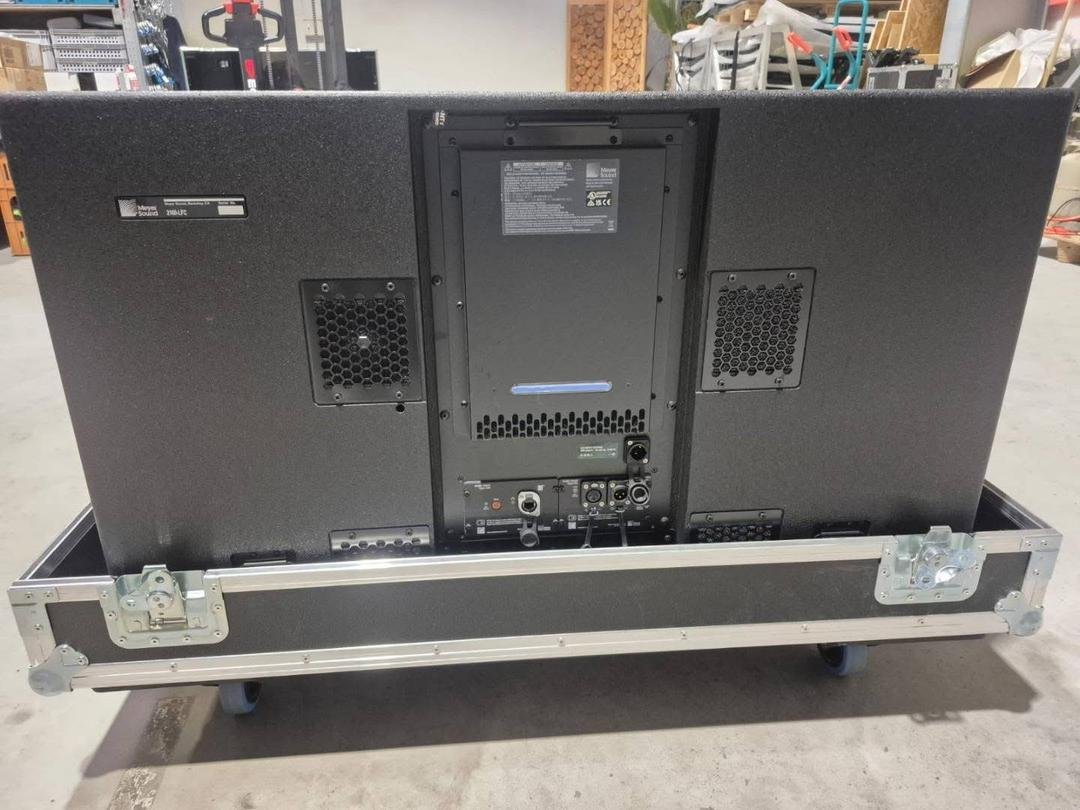

Analog Audio Connectivity

In addition to its digital audio capability, the Meyer Sound 2100-LFC includes an analog audio input.

The analog input uses a Neutrik XLR 3-pin TOP female connector with a male loop output.

This provides compatibility with conventional professional audio signal distribution systems while maintaining the ruggedized connector approach used throughout the enclosure.

Having both analog and Milan AVB connectivity provides flexibility for different system architectures.

Professional users can select the appropriate signal distribution method according to the requirements of their production.

Advanced Monitoring and Telemetry

The Meyer Sound 2100-LFC incorporates loudspeaker telemetry capabilities.

Telemetry information can be transmitted through the Ethernet connection and displayed in compatible software.

For professional touring and installation environments, monitoring can help technicians keep track of loudspeaker system information without having to physically inspect every enclosure.

Meyer Sound’s Nebra software provides a platform for monitoring telemetry data from compatible Meyer Sound products.

The 2100-LFC also includes a Wink function that can be used to identify loudspeakers listed within the software.

These features are particularly useful when working with large systems containing multiple loudspeakers.

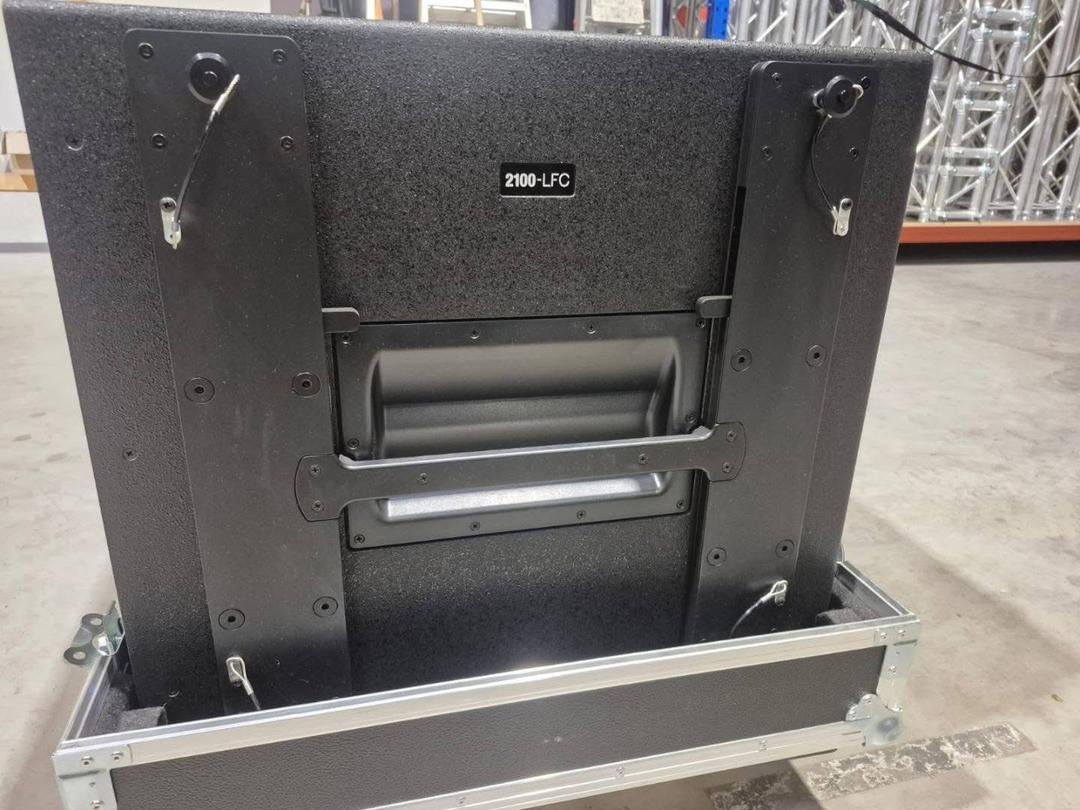

Professional Rigging and Deployment

The Meyer Sound 2100-LFC is designed for both flown and ground-stacked deployment.

Its integrated end-frame rigging system uses captive GuideALinks secured with quick-release pins.

The symmetrical rigging hardware also allows the 2100-LFC to be deployed in different orientations when creating cardioid arrays.

This provides system designers with flexibility when configuring low-frequency coverage for professional events.

Any flown deployment must be performed using approved Meyer Sound rigging hardware and procedures by appropriately qualified personnel.

Ground-stacked configurations should also be installed on suitable surfaces using appropriate safety procedures.

Cardioid Low-Frequency Configurations

The Meyer Sound 2100-LFC can be deployed in standard or cardioid configurations.

Cardioid subwoofer arrangements can be used to control low-frequency radiation toward selected areas of a venue.

This can help system designers manage rearward low-frequency energy in situations where directional low-frequency control is required.

The exact configuration depends on the number of cabinets, spacing, orientation, processing and system design.

Meyer Sound system design documentation should be followed when creating cardioid configurations.

Meyer Sound 2100-LFC for PANTHER Systems

The Meyer Sound 2100-LFC was designed to complement Meyer Sound’s PANTHER large-format linear line array loudspeaker.

The 2100-LFC extends the system response into the low-frequency range while providing a self-powered architecture that integrates with the broader Meyer Sound ecosystem.

PANTHER and 2100-LFC systems can also take advantage of networked audio and monitoring capabilities through Milan AVB and Meyer Sound’s monitoring infrastructure.

For professional touring systems, this combination provides a scalable approach to building a complete large-format Meyer Sound system.

Meyer Sound 2100-LFC for Touring

Touring productions require loudspeakers that can provide high performance while remaining practical to transport, rig and deploy.

The Meyer Sound 2100-LFC was designed with these requirements in mind.

The enclosure is approximately 20 percent lighter than the previous 1100-LFC according to Meyer Sound, while maintaining a large-format 21-inch low-frequency driver and integrated amplification.

The narrower cabinet profile also allows for efficient transportation and truck packing.

For touring companies, these physical characteristics can be useful when moving large quantities of professional audio equipment between venues.

The integrated amplifier and processing system also reduces the need for external amplifier racks dedicated to the low-frequency system.

Meyer Sound 2100-LFC for Concerts and Festivals

The Meyer Sound 2100-LFC is suitable for professional concert and festival applications where powerful low-frequency reproduction is required.

Its 30 Hz to 125 Hz operating range provides deep low-frequency extension for music and live performance.

The 21-inch driver and integrated amplification system allow the enclosure to produce substantial low-frequency output from a single cabinet.

Multiple 2100-LFC units can be deployed as part of larger low-frequency arrays when additional output or directional control is required.

The appropriate quantity and configuration depend on venue size, audience capacity, system requirements and desired coverage.

Professional system designers should use the manufacturer’s design tools and documentation when planning large-scale deployments.

Meyer Sound 2100-LFC for Rental Companies

The Meyer Sound 2100-LFC can be a valuable addition to a professional rental inventory for companies working with large-scale sound reinforcement systems.

Its self-powered design reduces dependence on external amplifier racks, while its networked monitoring capabilities provide additional system management functionality.

The 21-inch driver and extended low-frequency response make the 2100-LFC suitable for demanding music and event applications.

For rental companies already operating Meyer Sound PANTHER or other compatible Meyer Sound systems, the 2100-LFC can provide additional low-frequency system capacity.

Its ability to operate in flown or ground-stacked configurations further increases deployment flexibility.

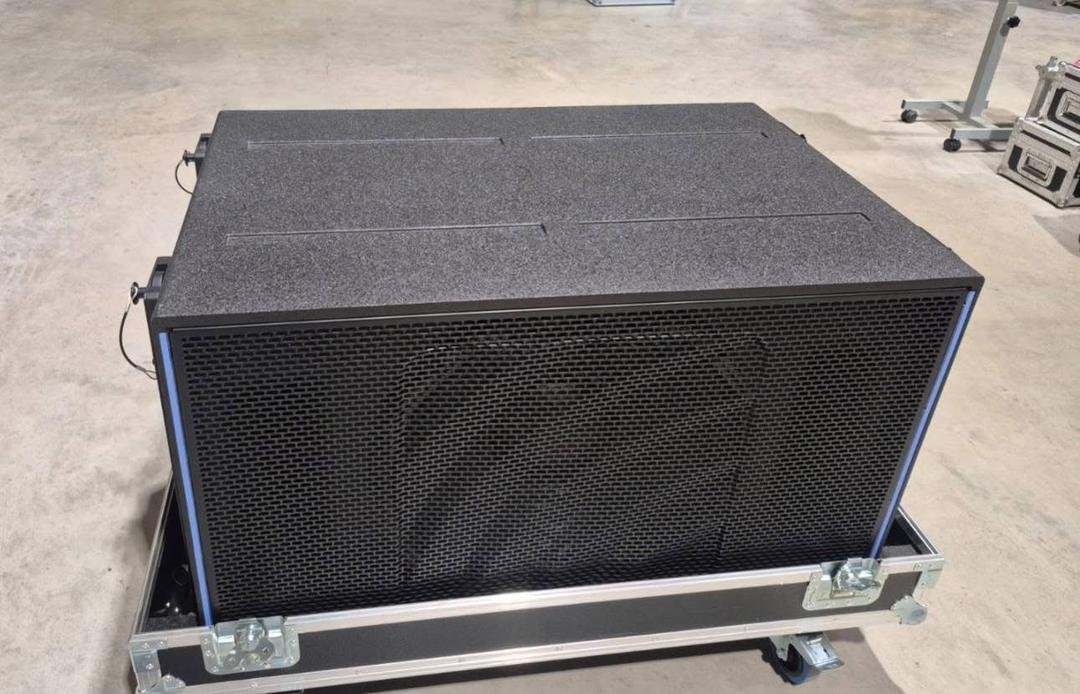

Excellent Condition Meyer Sound 2100-LFC

This Meyer Sound 2100-LFC is offered in excellent condition.

The unit is suitable for professional audio companies, touring productions, rental businesses, concert promoters, event production companies and venues looking for a high-performance Meyer Sound low-frequency solution.

The equipment should be inspected before purchase to confirm the condition of the enclosure, grille, connectors, rigging hardware, amplifier section and other visible components.

Additional photographs and equipment information can be provided upon request.

The condition of the specific unit should always be confirmed before purchase and deployment.

Professional Construction

The Meyer Sound 2100-LFC enclosure is constructed from premium multi-ply birch and features a slightly textured black finish.

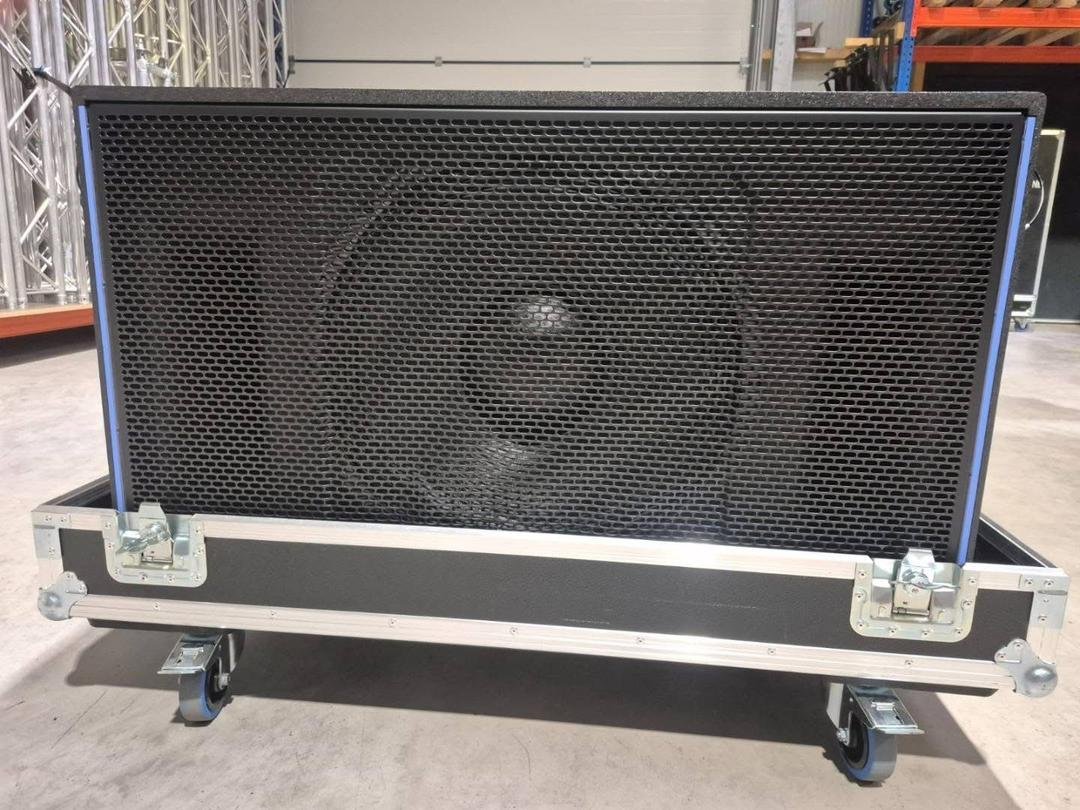

The front protective grille is manufactured from powder-coated stamped steel.

The enclosure is designed for professional touring and installation environments where equipment may be transported and deployed repeatedly.

The 2100-LFC also carries an IP55 rating when connected using cables terminated with Neutrik TOP connectors, according to Meyer Sound’s technical documentation.

The connector system uses Neutrik True Outdoor Protection components for power, analog audio and network connectivity.

Users should follow Meyer Sound’s operating instructions regarding weather exposure, connectors, sealing caps, transportation and storage.

Physical Dimensions and Weight

The Meyer Sound 2100-LFC measures approximately 1105 mm wide, 616 mm high and 660 mm deep.

Its net weight is approximately 106.6 kg, or 235 lb.

Despite incorporating a large 21-inch driver and integrated amplification, the 2100-LFC was engineered to provide a more compact and lighter solution compared with the previous 1100-LFC.

Its cabinet profile also supports efficient transportation and truck packing.

For touring companies, these dimensions can help optimize equipment logistics when transporting multiple low-frequency cabinets.

Meyer Sound 2100-LFC Specifications

Product: Meyer Sound 2100-LFC

Product type: Low-Frequency Control Element

Configuration: Self-powered low-frequency loudspeaker

Low-frequency driver: 1 × 21-inch long-excursion cone driver

Voice coils: Four

Nominal driver impedance: 4 ohms

Operating frequency range: 30 Hz–125 Hz

AES75 maximum linear sound levels: 139.1 dBZpk / 129.2 dBZ

Coverage: 360° for a single unit

Amplification: Integrated Class D amplifier

Maximum long-term continuous power: 1200 W

Burst power: 2400 W

Peak power: Up to 8000 W according to Meyer Sound product information

AC operating voltage: 200–240 V AC, 50–60 Hz

Analog input: Neutrik XLR 3-pin TOP

Digital input: Neutrik etherCON TOP

Digital format: Milan-certified AVB

Monitoring: Ethernet telemetry

Rigging: End frames with captive GuideALinks

IP rating: IP55 with appropriate Neutrik TOP cable connections

Enclosure: Premium multi-ply birch

Protective grille: Powder-coated stamped steel

Width: 1105 mm

Height: 616 mm

Depth: 660 mm

Weight: 106.6 kg / 235 lb

Condition: Excellent

The technical specifications above are based on Meyer Sound’s current product and technical documentation. (Meyer Sound Documentation) https://meyersound.com/product/2100-lfc/

Why Choose Meyer Sound 2100-LFC?

The Meyer Sound 2100-LFC combines a large 21-inch low-frequency driver, integrated Class D amplification, advanced processing, networked audio and telemetry monitoring in one professional enclosure.

Its 30 Hz to 125 Hz operating range provides extended low-frequency reproduction, while the self-powered architecture simplifies system deployment.

The Milan AVB digital input makes the 2100-LFC suitable for modern networked audio environments, while analog connectivity provides compatibility with conventional professional audio systems.

The enclosure can be flown or ground stacked and can be deployed in standard or cardioid configurations.

For professional touring companies and rental businesses, the combination of acoustic output, system integration and deployment flexibility makes the 2100-LFC a practical low-frequency solution for large-scale productions.

Buy Meyer Sound 2100-LFC in Excellent Condition

If you are looking for a Meyer Sound 2100-LFC in excellent condition, this unit provides a professional low-frequency solution for touring, concerts, festivals, events and large-scale sound reinforcement.

The Meyer Sound 2100-LFC combines a 21-inch long-excursion driver, integrated Class D amplification, 30 Hz to 125 Hz operating range, Milan AVB networking and professional telemetry monitoring.

Its self-powered architecture eliminates the need for a separate external amplifier for the loudspeaker, while its rigging system supports flown and ground-stacked configurations.

The 2100-LFC is particularly well suited to professional Meyer Sound systems and can be deployed alongside compatible line array products such as PANTHER.

Customers can contact BSound Pro Audio for current availability, pricing, additional photographs, shipping options and further information about the specific Meyer Sound 2100-LFC units available bsoundpa.com

For detailed technical information, system design requirements and approved deployment configurations, customers should consult the latest Meyer Sound documentation https://meyersound.com/product/2100-lfc/

The Meyer Sound 2100-LFC provides powerful, extended low-frequency performance in a self-powered professional enclosure designed for demanding touring and sound reinforcement applications.
