RCF TTS 36-A Subwoofer
The RCF TTS 36-A subwoofer is a high-power active subwoofer designed for professional sound reinforcement, touring, large events and demanding low-frequency applications. Combining two 18-inch high-power neodymium woofers with integrated digital amplification, advanced DSP and onboard RDNet networking, the TTS 36-A provides a complete high-output low-frequency solution in a tour-grade enclosure.
The RCF TTS 36-A subwoofer features two 18-inch neodymium woofers with 4.5-inch voice coils and a total amplifier rating of 4000 W RMS, with RCF specifying 8000 W peak power. The system also incorporates 96 kHz, 32-bit DSP processing and onboard RDNet for remote monitoring and control.
With a manufacturer-specified maximum SPL of 143 dB at 1 metre and a current specified frequency response of 35 Hz to 120 Hz, the RCF TTS 36-A is designed for applications where substantial low-frequency output, system control and professional touring durability are required.
RCF TTS 36-A Subwoofer Overview
The RCF TTS 36-A is an active high-power subwoofer from RCF’s professional TTS series. Unlike a passive subwoofer that requires an external amplifier and separate loudspeaker processing, the TTS 36-A incorporates its amplification and DSP processing inside the enclosure.
At the heart of the system are two 18-inch neodymium woofers, each using a 4.5-inch voice coil. The neodymium transducer design helps provide high output while keeping the driver assembly more weight-efficient than a comparable conventional magnet design.
The integrated amplification system consists of two 2000 W digital amplifiers, giving the system 4000 W RMS total amplification. RCF’s current specifications also state 8000 W peak power.
For professional production companies, the combination of high-power amplification, DSP, RDNet networking and a heavy-duty enclosure makes the RCF TTS 36-A subwoofer suitable for large-scale sound reinforcement systems where low-frequency headroom and system management are important.
RCF TTS 36-A Key Features
The main features of the RCF TTS 36-A subwoofer include:
• Dual 18-inch high-power neodymium woofers
• 4.5-inch voice coils
• 4000 W RMS total amplifier power
• 8000 W peak power
• Two integrated 2000 W digital amplifiers
• 96 kHz, 32-bit DSP processing
• Maximum SPL of 143 dB at 1 metre
• Frequency response of 35 Hz to 120 Hz
• Onboard RDNet
• Remote monitoring and control
• Time-delay alignment
• Cardioid preset capability for groups
• Bass-reflex enclosure
• DSP-controlled operation
• Soft limiter
• Thermal, excursion and RMS protection
• XLR audio input and output
• RDNet EtherCON input and output
• PowerCON input and output
• Baltic birch plywood cabinet
• Four wheels
• Forklift bars
• Six side handles
• Steel grille
• 100 kg net weight
• CE compliance
Dual 18-Inch Neodymium Configuration
The RCF TTS 36-A subwoofer uses two 18-inch high-power neodymium woofers. Each transducer incorporates a 4.5-inch voice coil, providing the motor structure and thermal capacity required for a high-output professional subwoofer.
The dual 18-inch configuration gives the TTS 36-A substantial cone area for low-frequency reproduction. This makes it appropriate for systems where the subwoofer section needs to provide significant acoustic output beneath a professional main PA.
The enclosure uses a bass-reflex design, allowing the acoustic system to operate efficiently in its intended low-frequency range.
RCF specifies the TTS 36-A at up to 143 dB maximum SPL at 1 metre, making it a high-output subwoofer intended for professional sound reinforcement rather than conventional portable PA applications.
RCF TTS 36-A Power and Amplification
A major feature of the RCF TTS 36-A subwoofer is its integrated amplification.
The system contains two 2000 W digital amplifiers, giving a total rated power of 4000 W RMS. RCF’s current specification lists total peak power at 8000 W.
The amplification is integrated directly into the enclosure, eliminating the need for an external power amplifier dedicated to the subwoofer.
This makes system deployment more straightforward for professional production environments because the amplifier and DSP processing remain part of the subwoofer system.
The integrated amplifier architecture also means that the RCF TTS 36-A subwoofer is designed as a complete active low-frequency system rather than simply a pair of passive 18-inch drivers in a cabinet.
For rental companies, touring companies and event production businesses, this can simplify amplifier rack requirements while retaining network-based monitoring and DSP control.
RCF TTS 36-A DSP Processing
The RCF TTS 36-A subwoofer incorporates a digital signal processor operating at 96 kHz with 32-bit processing.
The DSP section provides control over the subwoofer’s operating parameters and includes functions for system integration.
RCF specifies adjustable high-pass frequencies from 30 Hz to 45 Hz and low-pass frequencies from 60 Hz to 90 Hz. The system also provides time-delay alignment functionality.
The DSP architecture allows the TTS 36-A to be integrated into a larger sound reinforcement system while providing appropriate low-frequency filtering and alignment.
For a professional sound company, this is particularly useful when the subwoofer needs to be coordinated with the main loudspeaker system.
The RCF TTS 36-A subwoofer also provides protection functions including thermal, excursion and RMS protection, together with a soft limiter.
RDNet Remote Control
One of the most important professional features of the RCF TTS 36-A subwoofer is its integrated RDNet connectivity.
RDNet is RCF’s networked control and monitoring platform. It allows compatible RCF systems to be monitored and controlled remotely over a network.
According to RCF, RDNet can be used to control parameters such as level, delay and EQ, as well as monitor connected devices and configure advanced subwoofer arrangements.
For a professional touring system, remote control can be particularly useful because the engineer can manage compatible system parameters without physically accessing each loudspeaker.
The TTS 36-A includes RDNet EtherCON input and output connections, allowing it to be incorporated into an appropriate RDNet network.
This makes the RCF TTS 36-A subwoofer more than a high-output bass enclosure. It becomes a network-controlled component within a larger RCF professional sound system.
Cardioid Subwoofer Configuration
The RCF TTS 36-A subwoofer includes a cardioid preset capability for groups.
Cardioid subwoofer configurations are used to control the radiation pattern of low-frequency systems and reduce unwanted rearward energy.
A cardioid configuration generally requires multiple subwoofers arranged in a specific physical configuration and processed with appropriate delay, polarity and filtering settings.
The TTS 36-A provides DSP functions intended to support this type of professional subwoofer deployment. RCF specifically lists a cardioid preset for groups among the product’s features.
This is particularly relevant to touring and event production because low-frequency energy can otherwise spread widely around a venue.
When correctly designed and deployed, directional subwoofer arrays can help manage bass coverage according to the requirements of the event and venue.
Frequency Response
The current RCF specification for the RCF TTS 36-A subwoofer lists a frequency response of:
35 Hz to 120 Hz
The maximum SPL is specified at:
143 dB at 1 metre.
The usable frequency range and crossover settings make the TTS 36-A suitable for integration with professional full-range loudspeakers and line array systems.
The exact crossover point used in a complete PA system should be determined according to the main loudspeaker, subwoofer configuration, DSP preset and overall system design.
The current RCF documentation lists adjustable low-pass frequencies between 60 Hz and 90 Hz, together with high-pass frequencies from 30 Hz to 45 Hz.

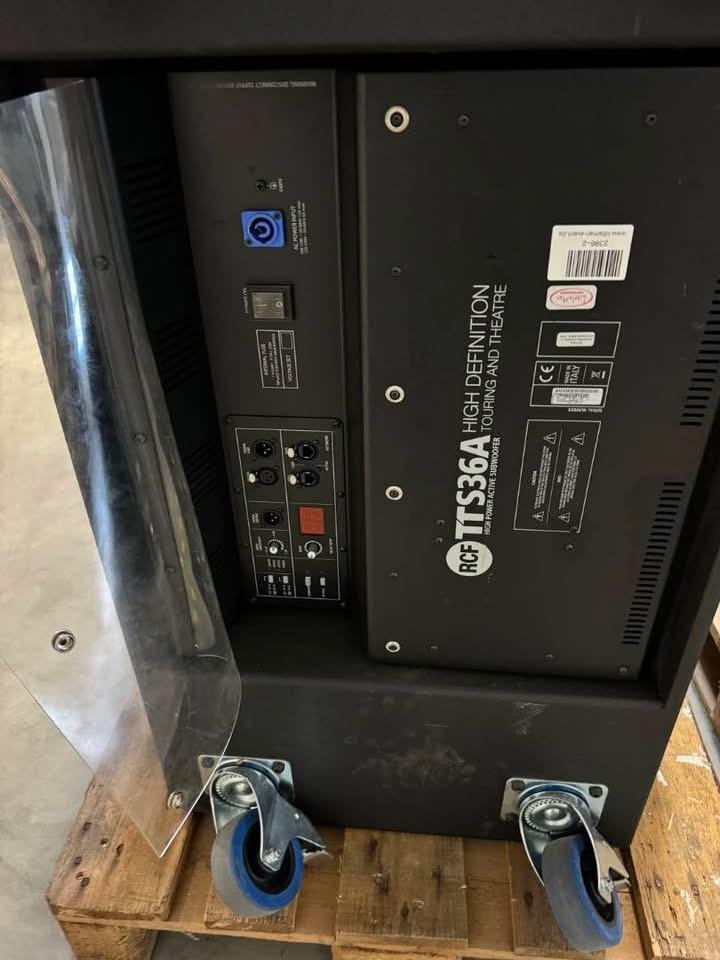

RCF TTS 36-A Connections
The RCF TTS 36-A subwoofer provides professional audio and network connections designed for integration into touring systems.
Audio input and output connections use XLR connectors, while RDNet networking uses EtherCON connections.
RCF specifies both balanced and unbalanced input signal compatibility and an input sensitivity range of -2 dBu to +10 dBu.
The rear panel also provides PowerCON input and output connections for mains power distribution.
This connection architecture allows multiple units to be integrated into a professional system while maintaining suitable signal and network connectivity.
RCF TTS 36-A Cabinet Construction

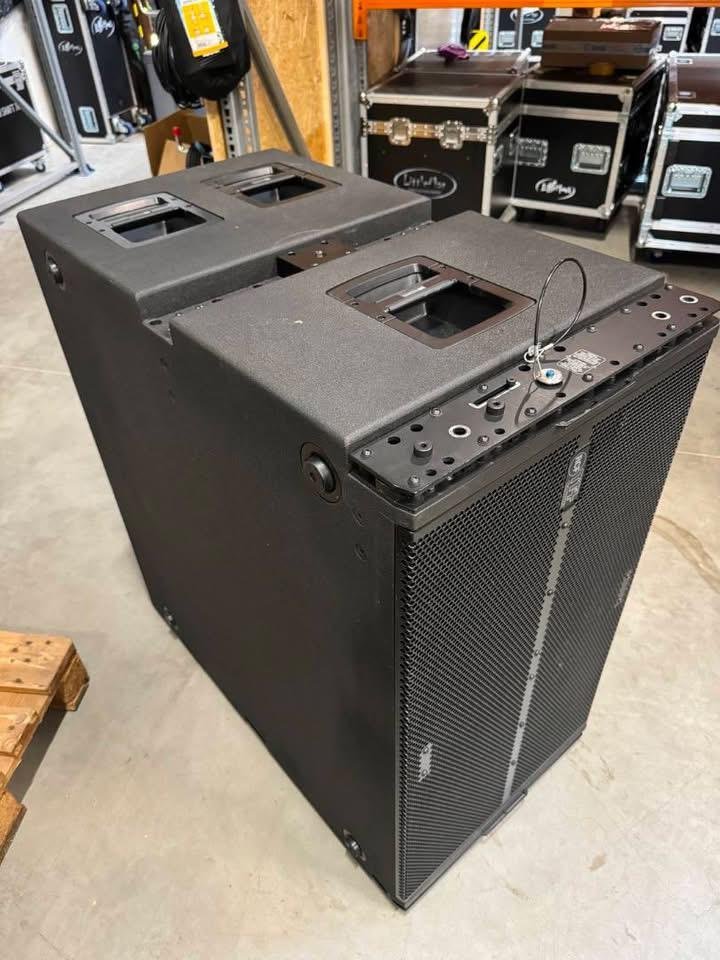

The RCF TTS 36-A subwoofer is built for professional touring environments.

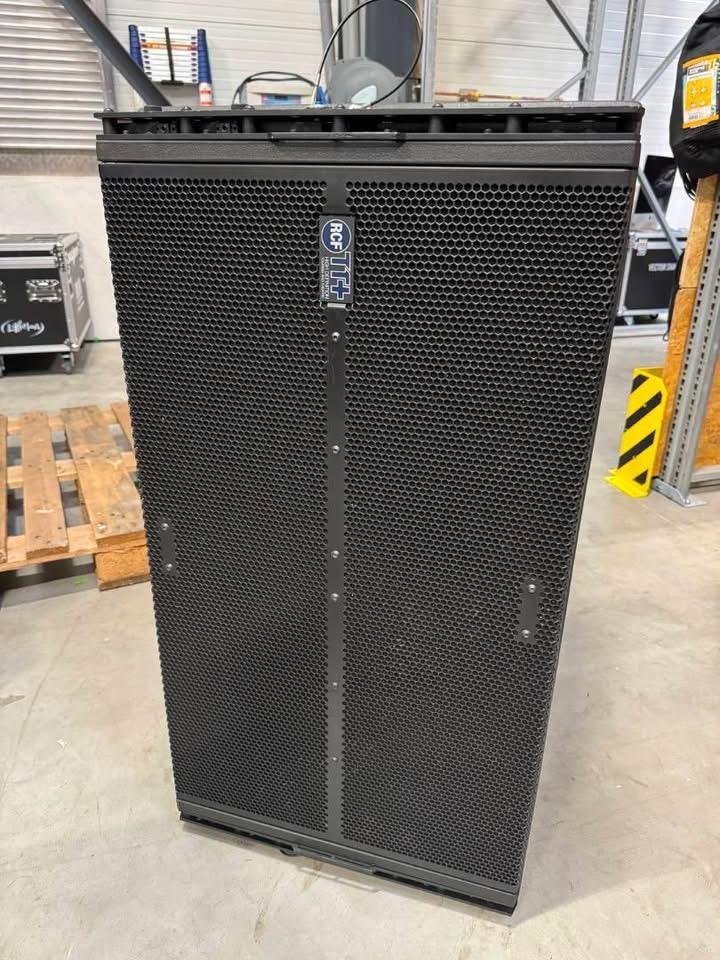

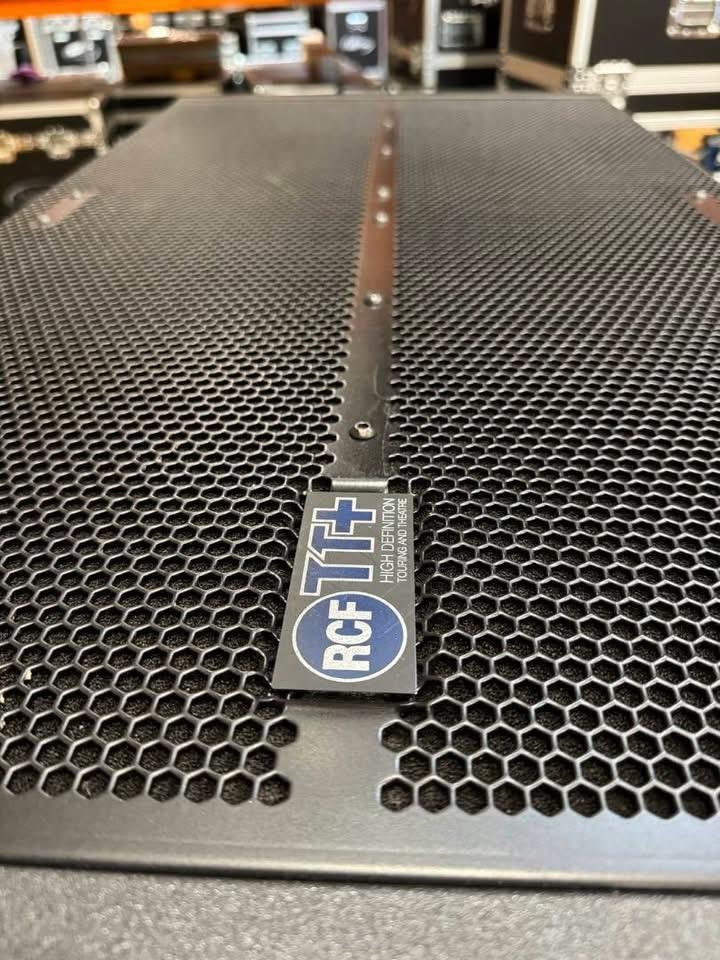

The cabinet is constructed from Baltic birch plywood, with a steel grille protecting the front of the transducers.

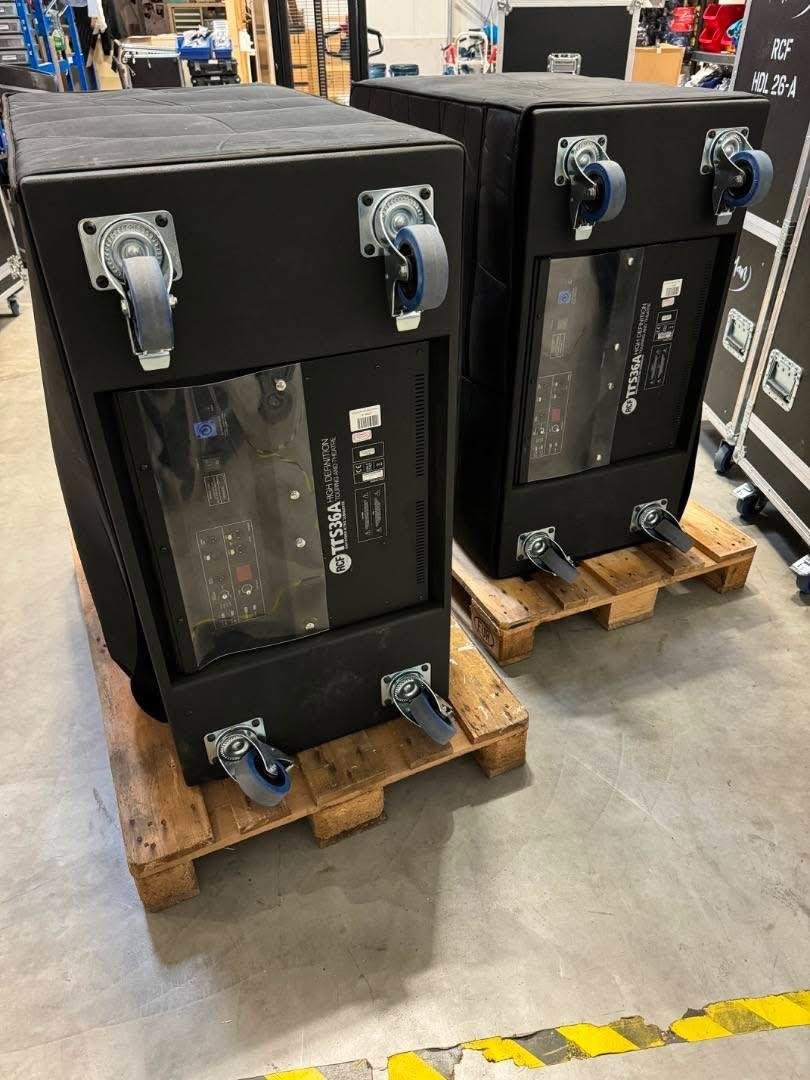

The current RCF specification lists four wheels, steel forklift bars and six side handles.
The physical construction is intended to withstand the handling associated with professional event production and touring.
The combination of wheels, handles and forklift bars is particularly relevant because the TTS 36-A is a substantial enclosure weighing approximately 100 kg / 220.46 lb according to the current RCF specification.
Because of its weight and dimensions, appropriate lifting, transportation and handling procedures should be used when deploying the system.
RCF TTS 36-A Dimensions and Weight
The current specifications list the following dimensions for the RCF TTS 36-A subwoofer:
Height: 525 mm / 20.67 inches
Width: 1170 mm / 46.06 inches
Depth: 850 mm / 33.46 inches
Weight: 100 kg / 220.46 lb
These dimensions make the TTS 36-A a substantial touring subwoofer designed for professional system deployment rather than compact portable applications.
The integrated wheels and side handles assist with movement on suitable surfaces, while the forklift bars allow the enclosure to be handled using appropriate production equipment.
RCF TTS 36-A for Touring
The RCF TTS 36-A subwoofer was designed with professional touring and high-output sound reinforcement in mind.
Its dual 18-inch configuration, integrated 4000 W RMS amplification, high maximum SPL and network control make it suitable for applications requiring substantial low-frequency output.
Touring systems often need equipment that can withstand repeated transportation, setup and teardown. The Baltic birch plywood cabinet, steel grille, handles, wheels and forklift bars address the physical requirements associated with this type of professional deployment.
The RDNet network also adds system management functionality that can be valuable when multiple subwoofers are deployed together.
RCF TTS 36-A for Concerts and Festivals
The RCF TTS 36-A subwoofer can be used as part of professional concert and festival sound systems where strong low-frequency reproduction is required.
The dual 18-inch configuration provides substantial low-frequency transducer area, while the integrated DSP allows the subwoofer to be configured within a larger system.
For outdoor festivals, the appropriate number of subwoofers should be determined according to the audience area, desired SPL, low-frequency coverage and overall system design.
The TTS 36-A should be used with appropriate RCF system presets and professional system processing rather than simply being connected and operated without consideration of the main PA configuration.
RCF TTS 36-A for Rental Companies
For professional rental companies, the RCF TTS 36-A subwoofer provides an integrated solution that combines transducers, amplification and DSP in one enclosure.
This can simplify system deployment because a separate amplifier channel is not required for the TTS 36-A itself.
The onboard RDNet interface also provides networked management capabilities when the system is deployed as part of a compatible RCF network.
For rental inventory, the physical dimensions and 100 kg weight should be considered when planning transportation, storage and loading procedures.
The four wheels and forklift bars can assist with handling, but the enclosure should still be moved using suitable professional equipment and adequate personnel.
RCF TTS 36-A for Professional PA Systems
The RCF TTS 36-A subwoofer can form the low-frequency section of a larger professional PA system.
Its 35 Hz to 120 Hz frequency response provides the low-frequency foundation beneath compatible main loudspeakers.
In a complete sound reinforcement system, the TTS 36-A can be integrated with professional full-range systems, line arrays and appropriate RCF processing.
The exact system configuration depends on the main loudspeaker model, number of subwoofers, venue, audience size and desired coverage.
The integrated crossover, delay and DSP functions allow the subwoofer to be configured as part of a properly aligned system.
RCF TTS 36-A System Control
System control is a major part of the TTS 36-A architecture.
Through RDNet, compatible RCF systems can be remotely monitored and configured.
RCF describes RDNet as a management and control platform for small, medium and large arena-sized sound systems, as well as complex installations. The platform can provide control over parameters including level, delay, EQ and advanced subwoofer configurations.
For engineers working on larger systems, this network functionality can reduce the need to physically access individual loudspeakers during system setup.
The RCF TTS 36-A subwoofer therefore combines high-output acoustic performance with the type of system-management functionality expected in professional touring and installation environments.
Protection and Reliability
The RCF TTS 36-A subwoofer incorporates several protection systems designed to safeguard the amplifier and transducers during operation.
RCF specifies thermal, excursion and RMS protection, together with a soft limiter.
Thermal protection helps manage excessive heat conditions, while excursion and RMS protection are designed to keep the system operating within appropriate limits.
The limiter and DSP architecture work together to help control the system when it is operated at high levels.
As with any professional loudspeaker system, protection circuits are not a substitute for correct system design, appropriate presets or responsible operating levels.
Why Choose an RCF TTS 36-A Subwoofer?
The RCF TTS 36-A subwoofer brings several professional functions into one high-power enclosure.
Its two 18-inch neodymium woofers provide a substantial low-frequency transducer configuration. The two integrated 2000 W digital amplifiers provide 4000 W RMS total amplification, while the DSP platform provides crossover, delay and protection functions.
The onboard RDNet interface adds remote monitoring and control capabilities, making the TTS 36-A suitable for networked professional audio environments.
The cabinet is also built around professional touring requirements, with Baltic birch plywood construction, steel protection, wheels, handles and forklift bars.
For sound companies looking for an active dual 18-inch subwoofer with integrated amplification and network control, the TTS 36-A provides a comprehensive professional platform.
RCF TTS 36-A Technical Specifications
Specification RCF TTS 36-A
Product type Active high-power subwoofer
LF transducers 2 x 18-inch neodymium
Voice coil 4.5-inch
Frequency response 35 Hz to 120 Hz
Maximum SPL 143 dB @ 1 m
Amplifier configuration 2 x 2000 W digital
Total RMS power 4000 W
Total peak power 8000 W
DSP
96 kHz, 32-bit
RDNet
Onboard
High-pass frequencies
30 to 45 Hz
Low-pass frequencies
60 to 90 Hz
Protection
Thermal, excursion, RMS
Limiter Soft limiter
Audio input/output XLR
Network input/output RDNet EtherCON
Power connection PowerCON IN/OUT
Cabinet Baltic birch plywood
Grille Steel
Wheels 4
Handles 6 side handles
Forklift hardware Steel forklift bars
Dimensions 525 x 1170 x 850 mm
Weight 100 kg / 220.46 lb
Compliance CE compliant
Specifications above are based on RCF’s current product information and current technical specification documentation.
RCF TTS 36-A Subwoofer for Sale
If you are looking for an RCF TTS 36-A subwoofer for professional sound reinforcement, touring, events, concerts or rental inventory, contact us for current availability, condition, quantity and pricing.
The TTS 36-A is particularly suited to buyers looking for a high-output active dual 18-inch subwoofer with integrated amplification, DSP and RDNet network control.
For professional buyers, we can provide equipment details, current photographs, availability information and shipping options.
Whether you are expanding an existing RCF system, replacing subwoofers in a professional rental inventory or building a larger touring PA, the TTS 36-A provides a high-power low-frequency platform with integrated system processing.
Contact us for current RCF TTS 36-A availability and pricing.
Frequently Asked Questions About the RCF TTS 36-A
What is the RCF TTS 36-A?
The RCF TTS 36-A subwoofer is an active high-power touring subwoofer equipped with two 18-inch neodymium woofers, integrated digital amplification, DSP processing and RDNet networking.
How many watts is the RCF TTS 36-A?
The TTS 36-A has two integrated 2000 W digital amplifiers, providing 4000 W RMS total power. RCF’s current specification lists 8000 W peak power.
How loud is the RCF TTS 36-A?
RCF specifies a maximum SPL of 143 dB at 1 metre.
What drivers are used in the RCF TTS 36-A?
The TTS 36-A uses two 18-inch high-power neodymium woofers, each with a 4.5-inch voice coil.
What is the frequency response of the TTS 36-A?
The current RCF specification lists a frequency response of 35 Hz to 120 Hz.
Does the RCF TTS 36-A have DSP?
Yes. The TTS 36-A features 96 kHz, 32-bit DSP processing with system control, filtering, delay and protection functions.
Does the RCF TTS 36-A support RDNet?
Yes. RDNet is onboard, with RDNet EtherCON input and output connections for networked monitoring and control.
Can the TTS 36-A be used in cardioid configurations?
Yes. RCF lists a cardioid preset for groups among the TTS 36-A’s features. Correct cardioid operation requires an appropriate multi-subwoofer configuration and DSP setup.
How much does the RCF TTS 36-A weigh?
The current RCF product documentation lists the TTS 36-A at 100 kg / 220.46 lb.
What are the dimensions of the TTS 36-A?
The current dimensions are 525 mm high, 1170 mm wide and 850 mm deep.
Is the RCF TTS 36-A an active or passive subwoofer?
The TTS 36-A is an active subwoofer with integrated digital amplification and DSP.
Is the RCF TTS 36-A suitable for touring?
Yes. RCF describes it as a high-power active subwoofer for touring sound reinforcement, and its cabinet incorporates Baltic birch plywood, wheels, side handles and forklift bars.
What connections does the RCF TTS 36-A use?
The TTS 36-A uses XLR audio connections, RDNet EtherCON networking and PowerCON input/output connections. https://bsoundpa.com/product/rcf-ttl-6-a-active-line-array-module/
