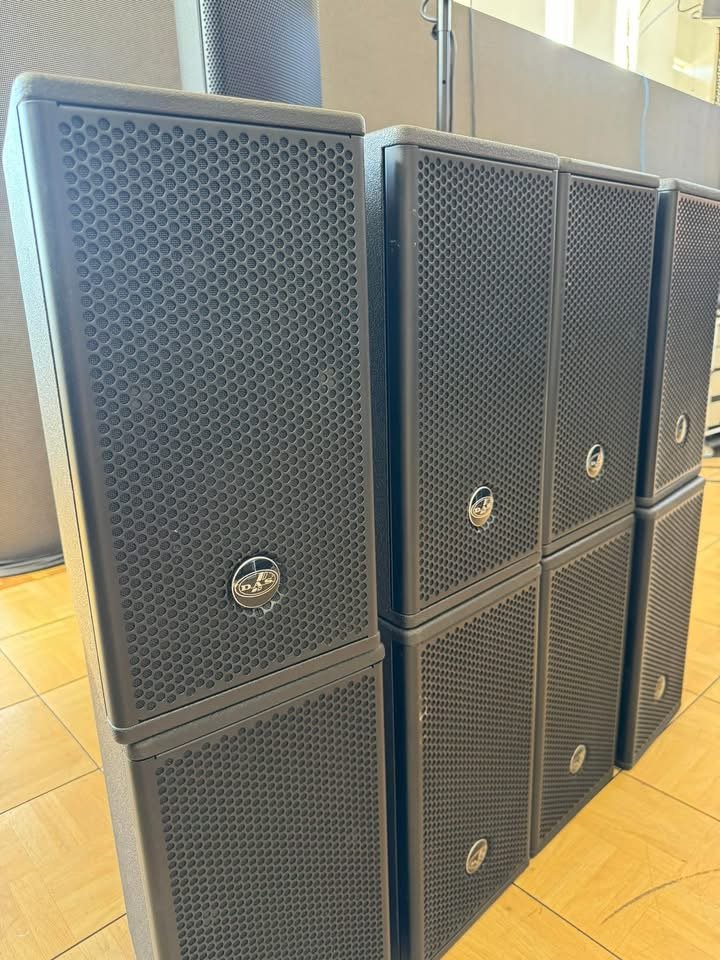

DAS Audio Artec 508A
DAS Audio Artec 508A is a compact powered two-way loudspeaker. The ARTEC-508A design pairs an 8-inch low-frequency driver with an M-34 compression driver. A Class D amplifier is built into the cabinet, giving it a different system role from the passive ARTEC-508.
The manufacturer documents a birch-plywood enclosure, balanced XLR signal input and an XLR loop-through output. Nominal coverage is 80 degrees in both planes. The ARTEC-508A is offered in more than one mains-voltage and finish variant; those details are not supplied for this stock. Use the exact mains-voltage and finish designation on the physical unit when planning a system.
Model overview
- Powered two-way ARTEC 500-series model.
- 8-inch LF driver and M-34 HF compression driver.
- Nominal 80° × 80° coverage.
- Balanced XLR input and loop-through output.
ARTEC 508A: powered compact reinforcement
The ARTEC 508A combines amplification with an 8-inch low-frequency driver and M-34 high-frequency compression driver. It should remain distinct from the passive ARTEC-508, because the power and signal arrangement is different. A shared enclosure family does not establish an identical system requirement.
The nominal 80° × 80° pattern is symmetrical. Assess it against the intended audience or fill area and the actual placement, rather than assuming compact size alone determines a suitable role. The balanced XLR input and loop-through output provide a signal path, but the complete routing still belongs to the system design.
The driver arrangement, coverage and connection format provide clear starting points for comparing the ARTEC 508A with the intended reinforcement task. Use the physical unit’s exact voltage and finish designation when planning the final system.
Condition and unit price
DAS Audio Artec 508A is offered in Excellent condition. Available stock: 8 units. The price is €400 per unit; the stock count is the available quantity and does not describe a package or combined price.
