Meyer Sound PANTHER Large-Format Linear Line Array Loudspeaker

The Meyer Sound PANTHER is a high-output self-powered linear line array loudspeaker designed for demanding professional sound reinforcement applications. Developed by Meyer Sound for large-scale audio systems, the PANTHER combines high acoustic output, controlled directivity, integrated amplification and advanced digital connectivity in a relatively compact 68 kg enclosure.

For touring companies, production companies, rental companies, concert promoters and professional sound engineers, the Meyer Sound PANTHER provides a powerful line array platform for applications where high output, predictable coverage and professional system integration are important.

The PANTHER is available in three coverage configurations: PANTHER-L with 80-degree horizontal coverage, PANTHER-M with 95-degree horizontal coverage and PANTHER-W with 110-degree horizontal coverage. This allows system designers to select the appropriate horizontal dispersion for different venue layouts and deployment requirements.

Meyer Sound PANTHER Line Array Design

The Meyer Sound PANTHER is a self-powered 2-way linear line array loudspeaker. Its transducer configuration consists of two 12-inch long-excursion low-frequency drivers and two 3-inch diaphragm compression drivers coupled to a high-frequency horn.

Unlike a conventional passive loudspeaker that requires separate external amplification, signal processing and speaker cabling, the PANTHER incorporates its amplification and processing within the loudspeaker enclosure. Meyer Sound specifies an internal four-channel Class-D amplifier architecture together with integrated protection and processing.

The integrated design simplifies system deployment while maintaining the performance expected from a professional large-format line array system.

The operating frequency range is 55 Hz to 16 kHz. Maximum sound level is specified at up to 150.5 dB for the PANTHER-L and PANTHER-M configurations, while the PANTHER-W configuration is specified at up to 149.5 dB.

High-Output Professional Sound Reinforcement

The Meyer Sound PANTHER was designed for applications requiring substantial acoustic output from a relatively compact loudspeaker enclosure. Its high-output architecture makes it suitable for concert systems, festivals, touring productions, corporate events, large venues and other professional sound reinforcement applications.

Meyer Sound describes PANTHER as a large-scale sound reinforcement solution engineered around high power, compact dimensions and energy efficiency.

The loudspeaker’s controlled directivity allows system designers to build arrays with predictable horizontal coverage. Depending on the selected PANTHER model, the horizontal dispersion is 80, 95 or 110 degrees.

The three coverage options are:

* PANTHER-L: 80° horizontal coverage
* PANTHER-M: 95° horizontal coverage
* PANTHER-W: 110° horizontal coverage

This range of coverage options makes the Meyer Sound PANTHER adaptable to different audience areas and system configurations.

Integrated Class-D Amplification

One of the major characteristics of the Meyer Sound PANTHER is its integrated amplification system. The loudspeaker incorporates a four-channel Class-D amplifier, eliminating the need for conventional external power amplifiers dedicated to each cabinet.

The integrated electronics also provide system processing and protection. Meyer Sound’s architectural specifications identify TruPower limiting as part of the protection system.

The maximum long-term continuous power consumption is specified at 1100 W, with burst power consumption specified at 2200 W for less than one second. The PANTHER operates from a 200 to 240 V AC supply at 50 or 60 Hz.

This integrated approach can help simplify system design, cabling and deployment for professional audio companies.

Milan AVB Digital Audio

The Meyer Sound PANTHER supports digital audio through its Milan AVB network connection. Meyer Sound specifies a Neutrik etherCON TOP connector for digital audio, with Milan AVB provided as the digital format.

Analog audio connectivity is also provided through Neutrik XLR 3-pin TOP connectors.

This combination of analog and digital connectivity gives professional audio systems flexibility when integrating PANTHER into modern networked audio environments.

For productions using Milan-certified audio networking, the PANTHER can form part of a digital audio infrastructure while also providing loudspeaker telemetry through its Ethernet connection.

Controlled Coverage and Cardioid Behavior

The Meyer Sound PANTHER incorporates a specific transducer arrangement and high-frequency horn design intended to provide controlled directivity.

Meyer Sound states that arrays of four PANTHER units or longer can create a controlled cardioid polar pattern at low frequencies. The manufacturer also states that this pattern remains consistent across different SPL levels and does not require additional user settings.

This characteristic can be particularly useful when designing large sound reinforcement systems where control of low-frequency radiation from the main array is an important part of the overall system design.

Meyer Sound PANTHER Physical Construction

The Meyer Sound PANTHER enclosure is constructed from premium multi-ply birch and features a slightly textured black finish. The front grille is made from powder-coated stamped steel.

The loudspeaker weighs approximately 68 kg / 150 lb. Its dimensions are approximately:

* Width: 969 mm / 38.15 in
* Height: 377 mm / 14.85 in
* Depth: 565 mm / 22.25 in

These specifications are published by Meyer Sound in its current PANTHER documentation.

Despite its substantial acoustic capability, the enclosure remains compact enough for professional touring and large-scale event applications.

PANTHER Rigging System

The Meyer Sound PANTHER uses integrated end frames with captive GuideALinks. The rigging system allows splay angles from approximately 0.5 degrees to 9 degrees using quick-release pins. Detachable side handles are also incorporated into the enclosure.

The integrated rigging architecture is intended for professional line array deployment and allows multiple PANTHER loudspeakers to be assembled into vertical arrays.

Proper rigging procedures, load limits and manufacturer instructions should always be followed when deploying PANTHER systems. Meyer Sound provides dedicated operating and rigging documentation for the loudspeaker.

Weather and Outdoor Applications

The Meyer Sound PANTHER has an IP55 ingress protection rating when connected using compatible Neutrik TOP connectors, according to Meyer Sound’s specifications.

This makes the platform suitable for professional outdoor sound reinforcement environments when correctly deployed with compatible connectors, cabling and system protection.

Outdoor applications can include festivals, open-air concerts, touring productions and large temporary events. As with any professional loudspeaker system, installation and environmental conditions should be considered carefully before deployment.

PANTHER Models

The Meyer Sound PANTHER family includes three horizontal coverage options.

PANTHER-L provides 80-degree horizontal coverage and is intended for applications requiring narrower horizontal dispersion.

PANTHER-M provides 95-degree horizontal coverage and offers an intermediate dispersion option.

PANTHER-W provides 110-degree horizontal coverage for applications where wider horizontal coverage is required.

All three models share the same basic PANTHER platform, including the 55 Hz to 16 kHz operating frequency range and 68 kg enclosure weight. Maximum SPL differs slightly between the coverage variants.

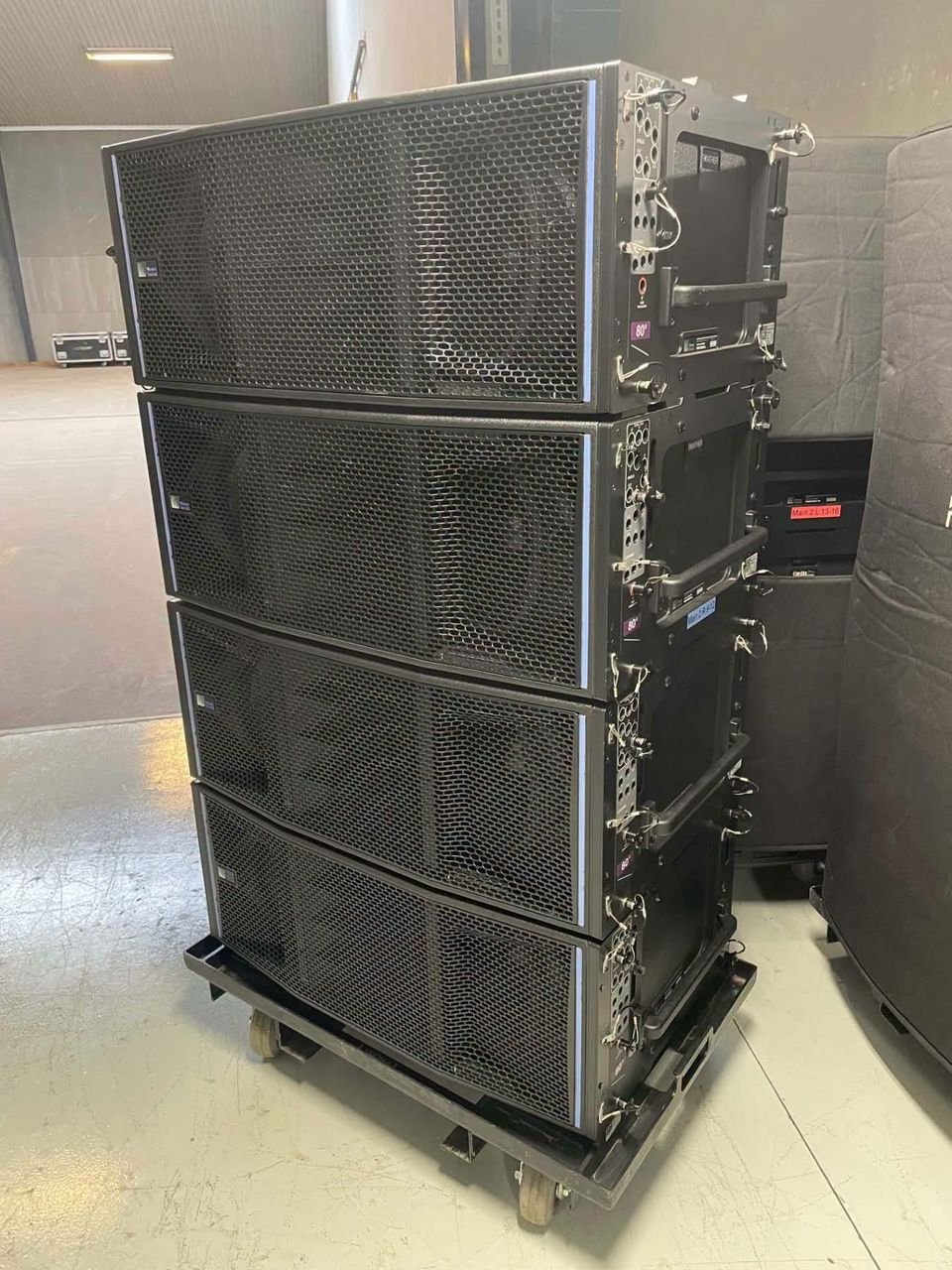

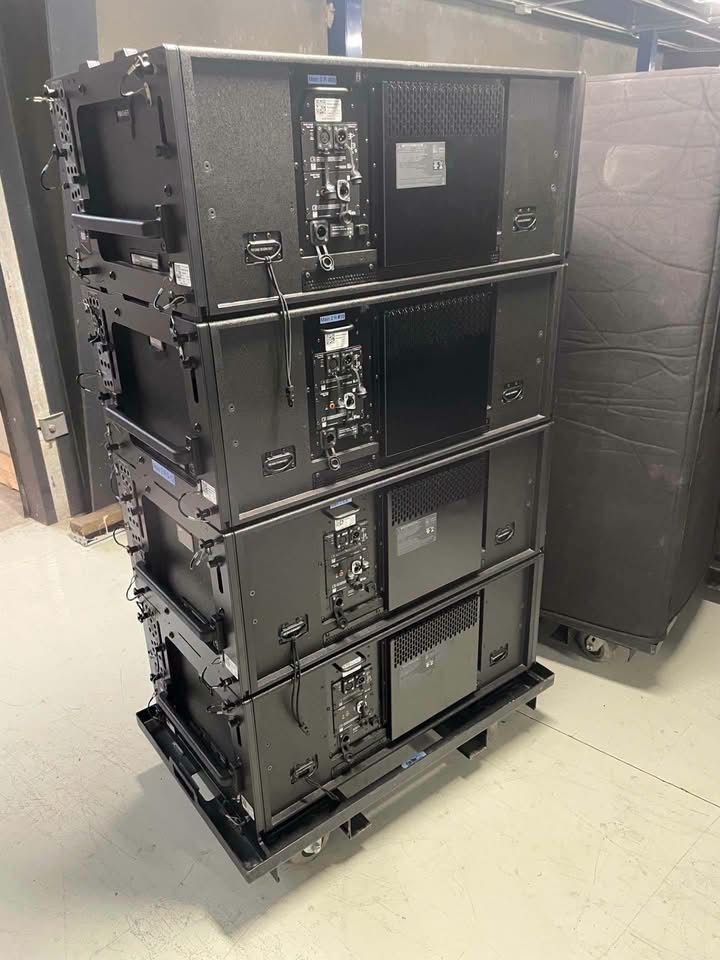

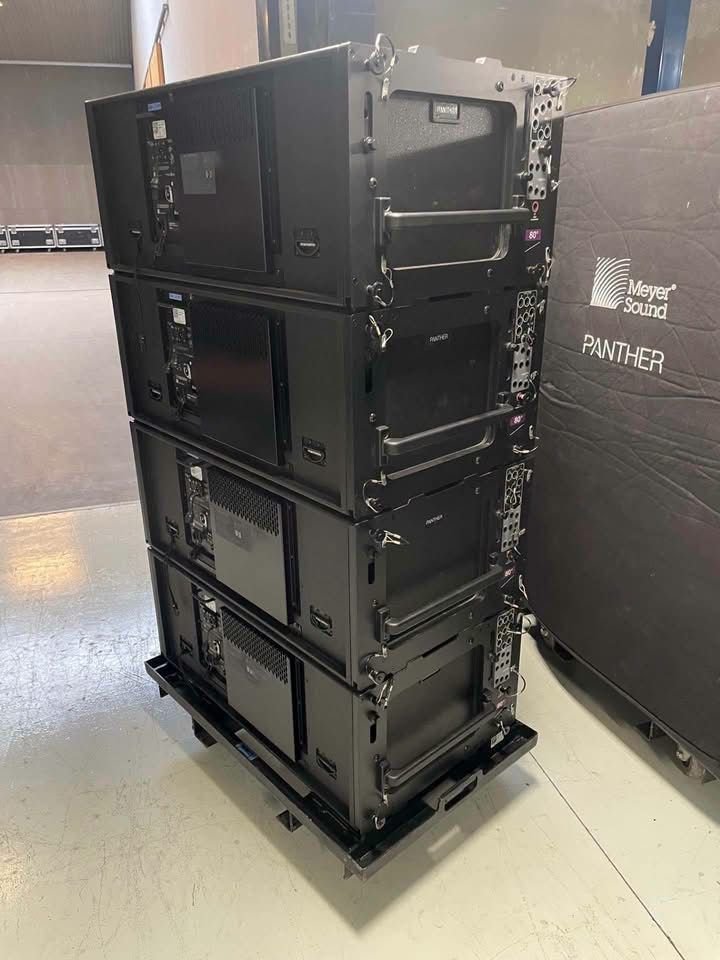

Used Meyer Sound PANTHER Loudspeaker

This listing is for a used Meyer Sound PANTHER professional loudspeaker. Used professional audio equipment can be an option for rental companies, production companies, touring professionals, venues and sound system integrators looking to expand an existing Meyer Sound inventory or build a larger system.

Before purchasing used equipment, buyers should verify the physical condition, transducer performance, amplifier operation, connectors, rigging components and overall operating history of the individual cabinet.

For buyers requiring multiple units, system quantities and availability should be confirmed with Bsound Pro Audio before placing an order.

Applications

The Meyer Sound PANTHER can be used in a wide range of professional sound reinforcement applications, including:

* Concert touring
* Large festivals
* Outdoor events
* Arena sound reinforcement
* Large corporate events
* Live music productions
* Professional rental companies
* Touring production companies
* Fixed professional installations
* Large-scale event production
* Theatre and performing arts applications

Its self-powered architecture, high acoustic output, selectable coverage patterns and network connectivity make it suitable for professional systems where consistent performance and system integration are important.

Technical specifications

Specification                      Meyer Sound PANTHER

Product Type                     Self-powered linear line array loudspeaker

System Configuration      2-way

Low-Frequency Drivers   2 × 12-inch long-excursion cone drivers

High-Frequency Drivers  2 × 3-inch diaphragm compression drivers

Amplification    4-channel Class-D

Frequency Range  55 Hz to 16 kHz

Maximum SPL  Up to 150.5 dB

PANTHER-L Coverage  80°

PANTHER-M Coverage 95°

PANTHER-W Coverage 110°

Digital Audio Milan AVB

Analog Input XLR 3-pin

Digital Connector Neutrik etherCON TOP

AC Connector Neutrik powerCON TRUE1 TOP

Operating Voltage 200 to 240 V AC

Frequency 50/60 Hz

Weight  68 kg / 150 lb

Width 969 mm / 38.15 in

Height 377 mm / 14.85 in

Depth 565 mm / 22.25 in

Enclosure  Premium multi-ply birch

IP Rating  IP55 with compatible Neutrik TOP connections

Rigging  Integrated GuideALink system

Specifications are based on Meyer Sound’s published PANTHER documentation.

Why Choose the Meyer Sound PANTHER?

The Meyer Sound PANTHER combines a high-output loudspeaker system, integrated amplification, onboard processing, professional rigging and Milan AVB connectivity into a single line array platform.

For professional audio companies, the self-powered design can reduce the amount of external amplification required in comparison with conventional passive line array systems. The three available coverage patterns also allow system designers to select the appropriate PANTHER configuration for the intended application.

The PANTHER’s high output capability, controlled directivity and integrated processing make it a professional solution for demanding sound reinforcement environments.

Purchase Meyer Sound PANTHER

BSound Pro Audio supplies professional audio equipment for production companies, rental companies, venues and sound professionals.

If you are looking for a used Meyer Sound PANTHER, contact BSound Pro Audio for current availability, condition, quantity and pricing.

For customers purchasing multiple cabinets or complete sound systems, we can also discuss system configuration, rigging requirements, packaging and shipping options.

Contact BSound Pro Audio to check current availability of the Meyer Sound PANTHER and other professional Meyer Sound equipment. https://bsoundpa.com

For complete manufacturer specifications and documentation, see the official Meyer Sound PANTHER documentation. https://meyersound.com
