Yamaha Rio3224-D3 32×16 Dante I/O Rack

The Yamaha Rio3224-D3 is a professional digital I/O rack designed for modern networked audio systems, live sound production, touring, broadcast, installation and professional digital mixing environments. As part of Yamaha’s 3rd-generation R Series, the Rio3224-D3 provides extensive analog I/O, Dante networking and digital audio connectivity in a robust rackmount format.

The Yamaha Rio3224-D3 provides 32 analog inputs and 16 analog outputs, making it suitable for productions that require a large number of microphone and line-level connections at the stage or other remote location. It also provides eight AES/EBU outputs, giving system designers additional options for connecting compatible digital audio equipment.

This unit is offered in excellent condition and is suitable for professional sound companies, touring productions, rental companies, venues, broadcast facilities, corporate production companies and system integrators.

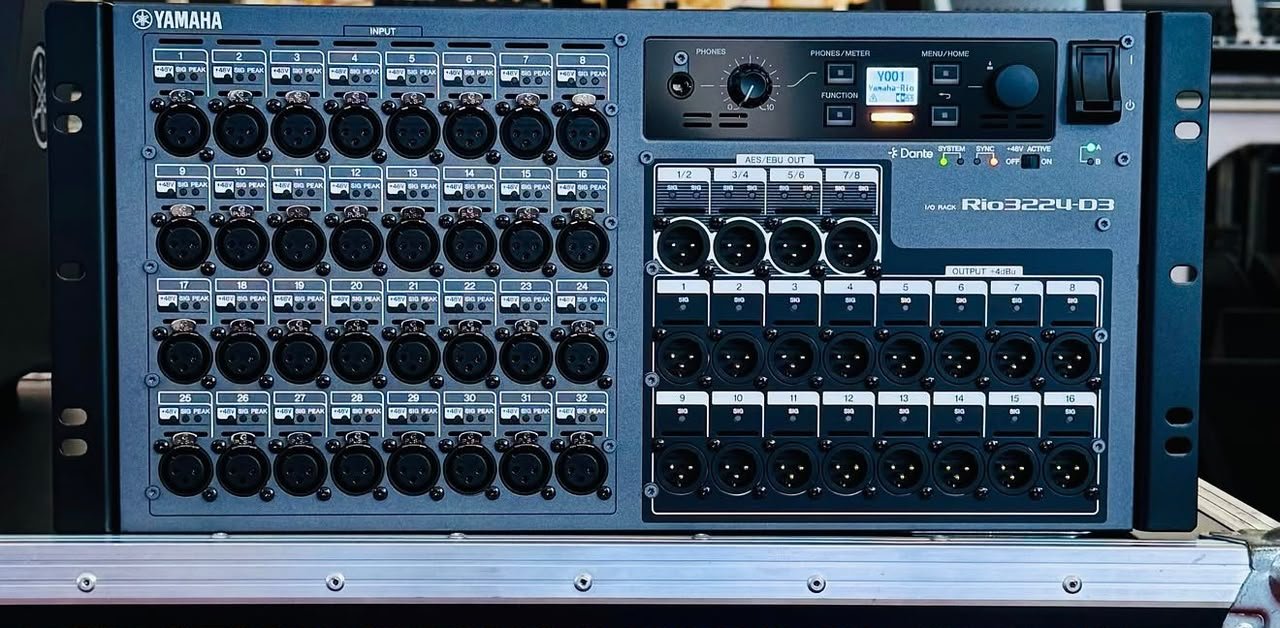

Yamaha Rio3224-D3 Dante I/O Rack

The Yamaha Rio3224-D3 is designed to operate as a high-capacity networked I/O solution within compatible Yamaha digital audio systems.

Its Dante interface allows audio to be transmitted and received over a standard Gigabit Ethernet audio network. Yamaha specifies 32 Dante transmit channels from the Rio3224-D3 to other devices and 26 Dante receive channels from other devices to the Rio3224-D3.

This networked architecture allows the Rio3224-D3 to be positioned close to the stage, performers or other audio sources while digital audio is transported through the Dante network to compatible mixing consoles and processors.

For professional productions, this can help simplify long-distance analog audio connections and provide flexible routing between networked devices.

32 Analog Inputs

One of the major advantages of the Yamaha Rio3224-D3 is its 32 analog microphone and line inputs.

The unit provides inputs 1 through 32 on balanced XLR connectors. Yamaha specifies microphone and line-level compatibility, with up to +66 dB of gain available. Phantom power can also be supplied to the inputs through individually software-controlled switches.

The large input count makes the Rio3224-D3 suitable for applications involving many microphones and audio sources.

For example, a live concert production can connect stage microphones directly to the Rio3224-D3 and send the signals over Dante to the mixing console.

This configuration can reduce the need for large quantities of analog multicore cabling between the stage and front-of-house position.

16 Analog Outputs

The Yamaha Rio3224-D3 also provides 16 analog outputs.

These outputs can be used for monitor mixes, loudspeaker feeds, matrix outputs, auxiliary systems and other analog signal distribution requirements.

The outputs use balanced XLR connectors and provide a nominal +4 dBu output level with a maximum output level of +24 dBu according to Yamaha’s specifications.

The combination of 32 inputs and 16 outputs makes the Rio3224-D3 suitable for large production systems where both high input density and multiple analog outputs are required.

Dante Audio Networking

The Yamaha Rio3224-D3 incorporates Dante networking through its primary and secondary Dante connections.

Dante provides a digital audio networking platform for transporting multiple channels of audio over Ethernet infrastructure.

Yamaha specifies the Rio3224-D3’s Dante connections as 1000BASE-T and supports 24-bit or 32-bit digital audio. The unit provides 32 channels from the Rio3224-D3 to other devices and 26 channels from other devices to the Rio3224-D3.

The dual network architecture also makes the Rio3224-D3 suitable for systems where redundant Dante networking is required.

This makes the unit particularly useful in professional productions where network reliability and flexible digital routing are important.

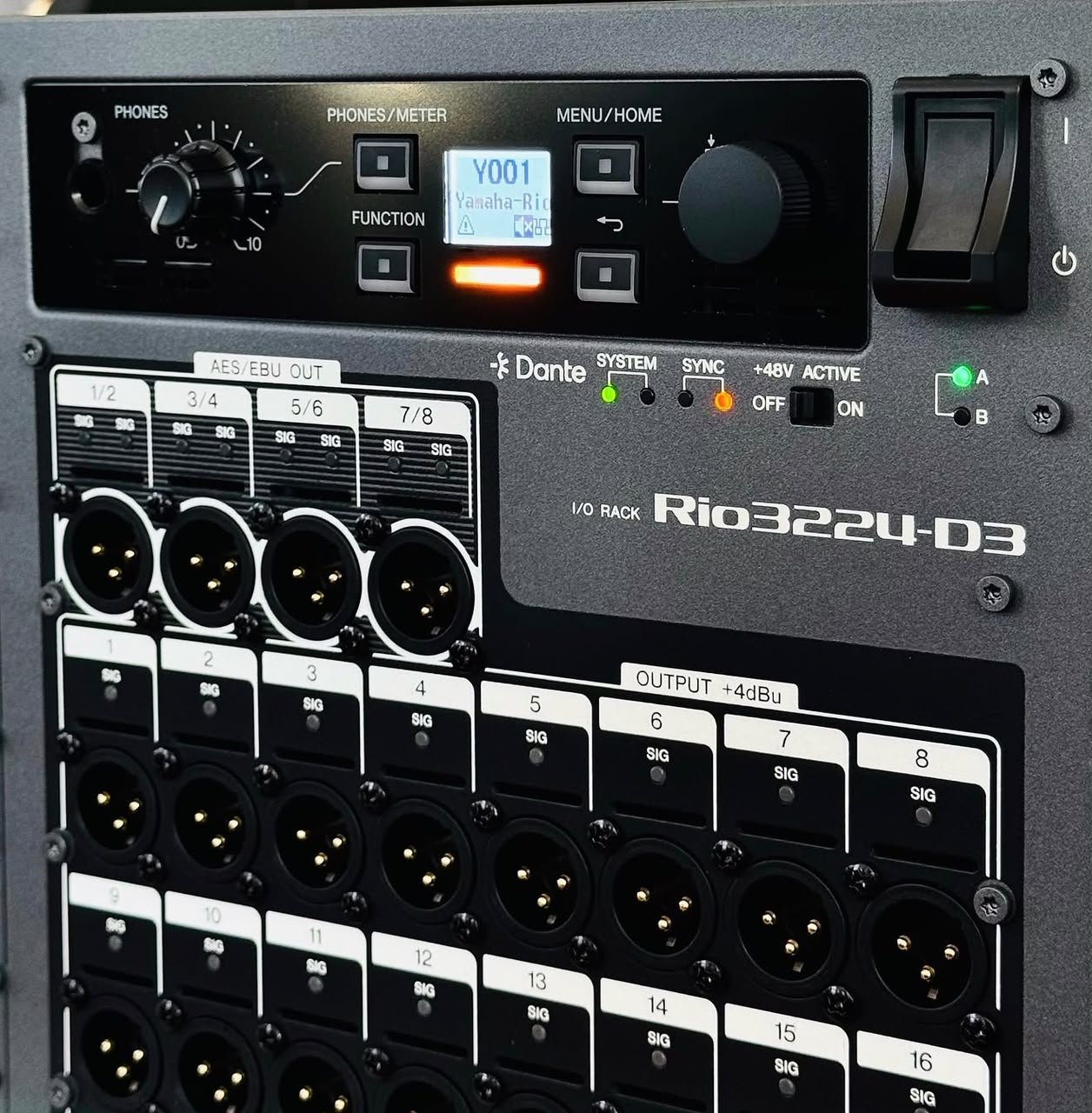

AES/EBU Digital Outputs

In addition to Dante networking, the Yamaha Rio3224-D3 includes eight AES/EBU outputs.

Yamaha specifies four AES/EBU output pairs covering channels 1/2, 3/4, 5/6 and 7/8. The AES/EBU interface uses balanced XLR connections and supports 24-bit digital audio.

This provides another method of connecting the Rio3224-D3 to compatible professional digital audio equipment.

For system designers working with a mixture of Dante, analog and AES/EBU equipment, this additional digital connectivity can be particularly useful.

Yamaha Digital Mixing System Integration

The Yamaha Rio3224-D3 is designed to integrate with Yamaha’s professional digital mixing ecosystem.

Yamaha specifically documents Rio3224-D3 integration with systems including RIVAGE PM and DM7. In RIVAGE PM systems, Rio3224-D3 units can operate over Dante alongside Yamaha’s TWINLANe-based RPio systems.

For DM7 systems, Yamaha describes flexible network configurations using Dante-compatible equipment and SRC-compatible Dante cards.

This makes the Rio3224-D3 a practical choice for users building a Yamaha-centered digital audio infrastructure.

Yamaha Rio3224-D3 and DM7

The Yamaha Rio3224-D3 can be used with Yamaha DM7 digital mixing systems in Dante-based configurations.

Yamaha’s published specifications give a signal delay of less than 1.7 ms for a Rio-D3 input-to-output connection with a DM7 using Dante at 96 kHz with Dante Receive Latency set to 0.25 ms.

This makes the Rio3224-D3 particularly relevant for modern digital mixing environments where stage I/O and mixing-console connectivity are handled through Dante.

For production companies using DM7 systems, the Rio3224-D3 provides a high-channel-count remote I/O solution.

Yamaha Rio3224-D3 and RIVAGE PM

The Yamaha Rio3224-D3 can also be integrated into RIVAGE PM systems through Dante.

Yamaha states that RIVAGE PM systems can combine Rio3224-D3 and Rio1608-D3 units connected via Dante with RPio622 and RPio222 units connected via TWINLANe.

This allows production engineers to build larger networked audio systems using different Yamaha I/O platforms according to the requirements of the installation or production.

The Rio3224-D3 therefore fits into both touring and fixed-installation environments where Yamaha digital mixing platforms are used.

96 kHz Digital Audio

The Yamaha Rio3224-D3 supports multiple sampling rates, including:

* 44.1 kHz
* 48 kHz
* 88.2 kHz
* 96 kHz

Yamaha specifies these sampling rates for the Rio3224-D3 and provides external synchronization support within the specified tolerance ranges.

This makes the unit suitable for professional digital audio systems operating at different sample rates.

For high-resolution production workflows, the ability to operate at 96 kHz provides additional flexibility when designing the digital audio network.

Dual Power Supplies

Reliability is an important consideration for professional touring and installed audio systems.

The Yamaha Rio3224-D3 incorporates dual power supply units, providing redundancy designed to improve system reliability. Yamaha specifically highlights the built-in dual power supplies as a feature of the Rio3224-D3.

For touring productions, broadcast systems and critical installations, redundant power architecture can be an important part of overall system design.

The dual-supply configuration also makes the Rio3224-D3 suitable for professional environments where maintaining continuous operation is important.

Gain Control and Local Operation

The Yamaha Rio3224-D3 provides comprehensive local control and display functions.

Yamaha specifies local control of parameters including gain and delay, allowing technicians to make adjustments directly from the unit when required.

The Rio3224-D3 also supports gain compensation functionality within compatible Yamaha systems.

This can be useful in production environments where multiple consoles or operators need access to shared stage input signals.

Professional Touring Applications

The Yamaha Rio3224-D3 is well suited to professional touring and live sound applications.

With 32 analog inputs, 16 analog outputs and Dante networking, the unit can serve as the main stage I/O rack for a large live production.

Typical applications include:

* Concert touring
* Festival production
* Live music
* Corporate events
* Broadcast
* Theatre
* Houses of worship
* Fixed installations
* Conference centers
* Rental companies
* Production companies
* Professional recording environments
* Large-scale digital mixing systems

The high channel count allows the Rio3224-D3 to handle large numbers of stage inputs while keeping the audio transport digital once signals enter the network.

Used Yamaha Rio3224-D3 in Excellent Condition

This listing is for a used Yamaha Rio3224-D3 in excellent condition.

The unit is suitable for professional users looking for a high-quality Yamaha Dante I/O solution without purchasing a new system.

A used Yamaha Rio3224-D3 can be particularly useful for rental companies and production companies that need additional stage I/O capacity for existing Yamaha digital mixing systems.

Buyers should inspect the physical condition of the unit, including the XLR connectors, Dante network ports, power connections, displays and controls. The exact condition of the individual unit should always be verified against the actual equipment and photographs provided with the listing.

Yamaha Rio3224-D3 for Professional Audio Companies

For professional audio companies, the Yamaha Rio3224-D3 provides a combination of high channel density, Dante networking and compatibility with Yamaha’s professional digital mixing ecosystem.

The 32 analog inputs provide substantial microphone and line-level capacity, while 16 analog outputs allow multiple monitor, matrix and system feeds.

The additional AES/EBU outputs provide another digital connection option for compatible equipment.

For rental companies, these features make the Rio3224-D3 useful across different production configurations.

Technical Specifications

Specification Yamaha Rio3224-D3

Product Type Digital I/O Rack

Series. Yamaha R Series 3rd Generation

Analog Inputs 32

Analog Outputs 16

AES/EBU Outputs 8

Dante 26 receive / 32 transmit channels

Dante Connection Primary / Secondary

Dante Network 1000BASE-T

Sampling Rates 44.1 / 48 / 88.2 / 96 kHz

Input Connectors Balanced XLR

Output Connectors Balanced XLR

Phantom Power +48 V

Power Supply Dual power supply units

Power Requirements 100–240 V, 50/60 Hz

Power Consumption 100 W

Dimensions 480 × 220 × 370 mm

Weight 13.2 kg / 29.1 lb

Headphone Output Yes

Condition Excellent condition

These specifications are based on Yamaha’s current official Rio3224-D3 specifications and documentation https://usa.yamaha.com .

Dante Network Connectivity

The Yamaha Rio3224-D3 provides primary and secondary Dante network connections through etherCON-compatible networking.

This allows the unit to be incorporated into professional networked audio infrastructures and provides flexibility for redundant network configurations.

The Dante interface supports 24-bit and 32-bit data lengths and Gigabit Ethernet connectivity.

For professional production companies, this network architecture allows stage I/O to be positioned where it is needed while maintaining digital audio connectivity to the mixing and processing system.

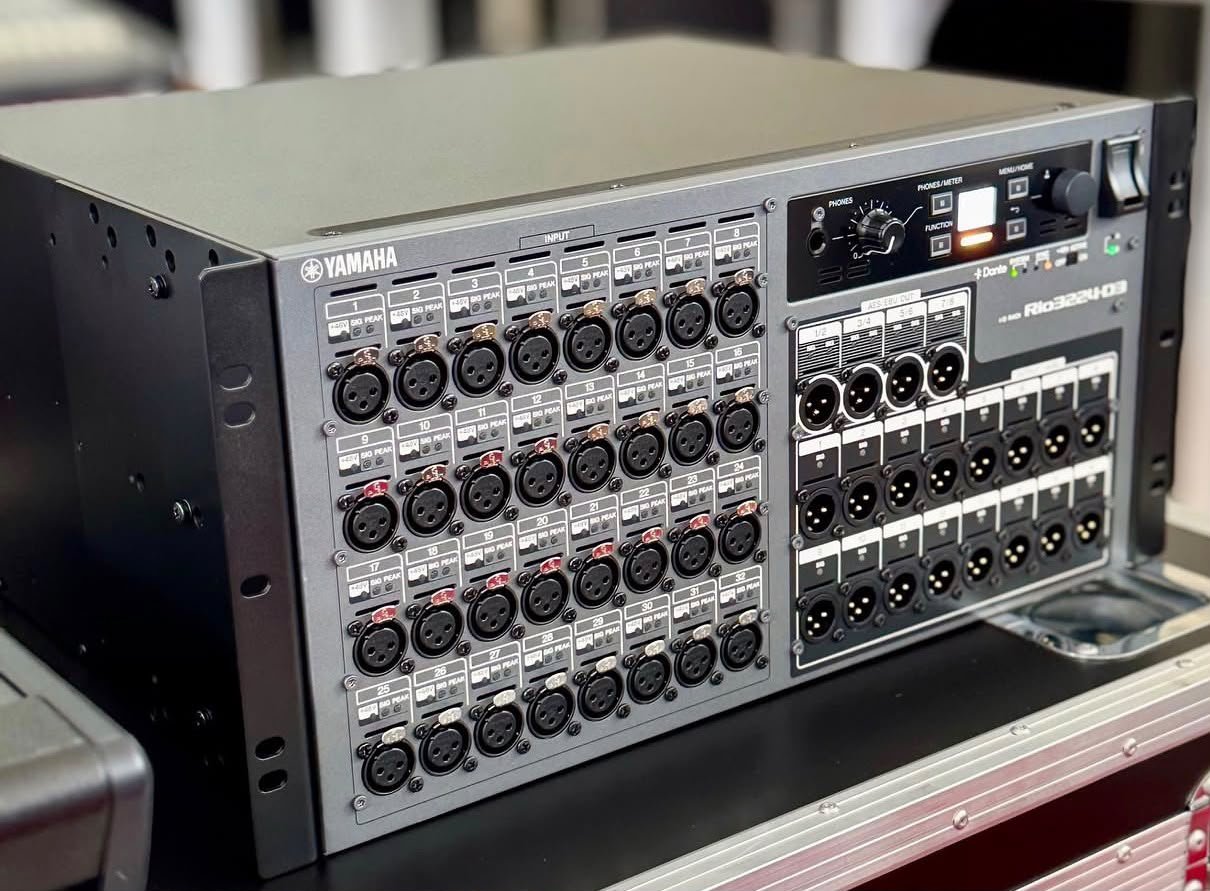

Compact Professional Rack Design

Despite its large channel count, the Yamaha Rio3224-D3 is housed in a professional rackmount chassis measuring approximately 480 × 220 × 370 mm and weighing 13.2 kg.

The rackmount format makes it suitable for touring racks, flight cases, fixed installations and professional audio equipment rooms.

Its relatively compact form factor allows a large amount of audio I/O to be installed without requiring excessive rack space.

Why Choose the Yamaha Rio3224-D3?

The Yamaha Rio3224-D3 combines high-density analog I/O with Dante networking and additional AES/EBU connectivity.

Its 32 analog inputs provide substantial stage input capacity, while 16 analog outputs allow multiple output feeds for monitors, loudspeakers and other audio systems.

The integration with Yamaha digital mixing platforms such as DM7 and RIVAGE PM makes it a practical component for professional Yamaha-based audio networks.

The dual power supply architecture, high channel count and flexible digital connectivity further support professional touring and installation applications.

Purchase a Yamaha Rio3224-D3

This Yamaha Rio3224-D3 is available in excellent condition and is suitable for professional audio production, touring, rental, broadcast and installation applications.

Contact BSound Pro Audio to confirm current availability, condition, quantity, pricing, shipping options and any accessories included with the unit https://bsoundpa.com .

BSound Pro Audio also offers professional Yamaha consoles, stageboxes, digital audio interfaces, amplifiers and loudspeaker systems for complete production setups.

If you are expanding an existing Yamaha Dante system or building a professional digital audio network, the Yamaha Rio3224-D3 provides a high-capacity solution with 32 analog inputs, 16 analog outputs, Dante networking and AES/EBU connectivity.
