RCF SUB 8004-AS Powerful 18-Inch Active Subwoofer
The RCF SUB 8004-AS is a powerful professional 18-inch active subwoofer designed to deliver deep, controlled and high-output low-frequency performance for demanding sound reinforcement applications. Built for professional PA systems, live events, touring, installations and large-scale audio applications, the RCF SUB 8004-AS combines a high-power 18-inch woofer, integrated Class-D amplification and DSP-controlled processing in a rugged professional enclosure.
With up to 2500 W peak power, 1250 W RMS power, a maximum SPL of 136 dB at 1 metre and a frequency response from 30 Hz to 120 Hz, the RCF SUB 8004-AS provides the powerful low-frequency foundation required by professional sound systems.
High-Power RCF 18-Inch Subwoofer
The RCF SUB 8004-AS features a high-power 18-inch low-frequency transducer designed to move a substantial amount of air while maintaining controlled and accurate bass reproduction. The 18-inch woofer incorporates a 4-inch voice coil and a hypervented design for high-output professional operation.
With its powerful integrated amplification and professional cabinet construction, the RCF SUB 8004-AS is designed for applications where strong and reliable low-frequency performance is essential.
2500 W Peak Power and 1250 W RMS
The RCF SUB 8004-AS features an integrated digital amplifier rated at 2500 W peak power and 1250 W RMS. The amplifier is specifically designed to drive the subwoofer’s low-frequency transducer, providing a complete powered subwoofer solution without requiring a separate external amplifier.
The integrated amplification makes the RCF SUB 8004-AS practical for professional sound companies, touring systems, event production and installation applications.
136 dB Maximum SPL
The RCF SUB 8004-AS can produce a maximum sound pressure level of 136 dB at 1 metre. This high output capability makes it suitable for professional applications that require substantial low-frequency energy.
The combination of an 18-inch woofer, high-power amplification and DSP processing allows the SUB 8004-AS to provide powerful bass performance for live music, events, touring and professional sound reinforcement.
DSP-Controlled Processing
The RCF SUB 8004-AS includes DSP-controlled processing designed to provide flexible system configuration. The integrated controls include crossover, phase, Deep/Punch, output delay and cardioid functions.
These controls allow sound engineers to configure the subwoofer according to the requirements of the complete PA system. Output delay can assist with system alignment, while phase and crossover controls provide additional flexibility when integrating the subwoofer with full-range loudspeakers.
Deep and Punch Low-Frequency Modes
The RCF SUB 8004-AS includes Deep and Punch operating modes that provide additional flexibility when configuring the low-frequency response.
Depending on the application, the appropriate mode can be selected to achieve the desired balance between low-frequency extension and impact.
Cardioid Subwoofer Configuration
The RCF SUB 8004-AS provides cardioid functionality for professional system configurations where greater control over low-frequency coverage is required.
Cardioid subwoofer configurations can help control the direction of low-frequency energy and reduce unwanted bass radiation behind the subwoofer system when properly configured.
This makes the SUB 8004-AS suitable for professional touring, live events and stage applications where controlled low-frequency coverage is important.

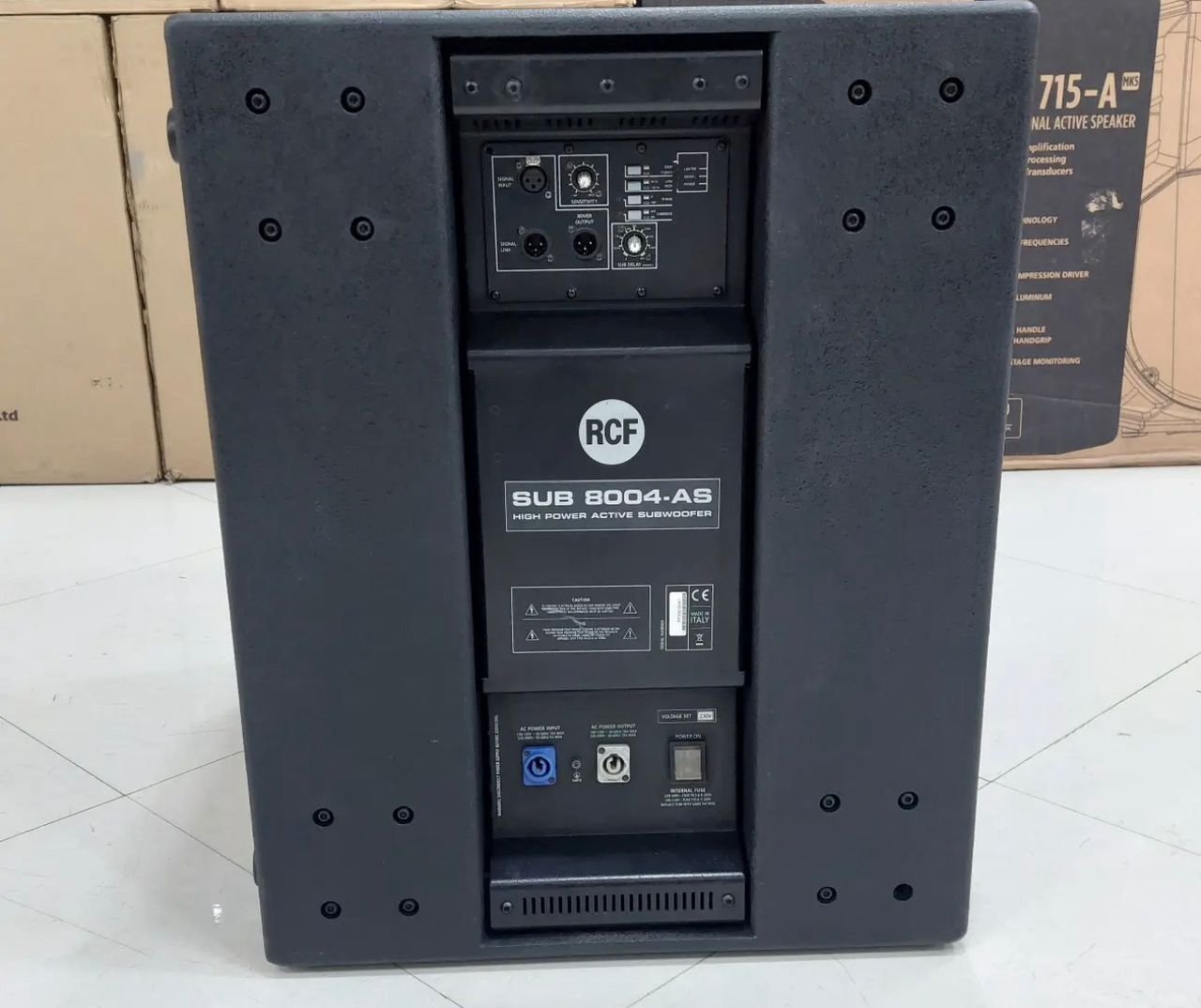

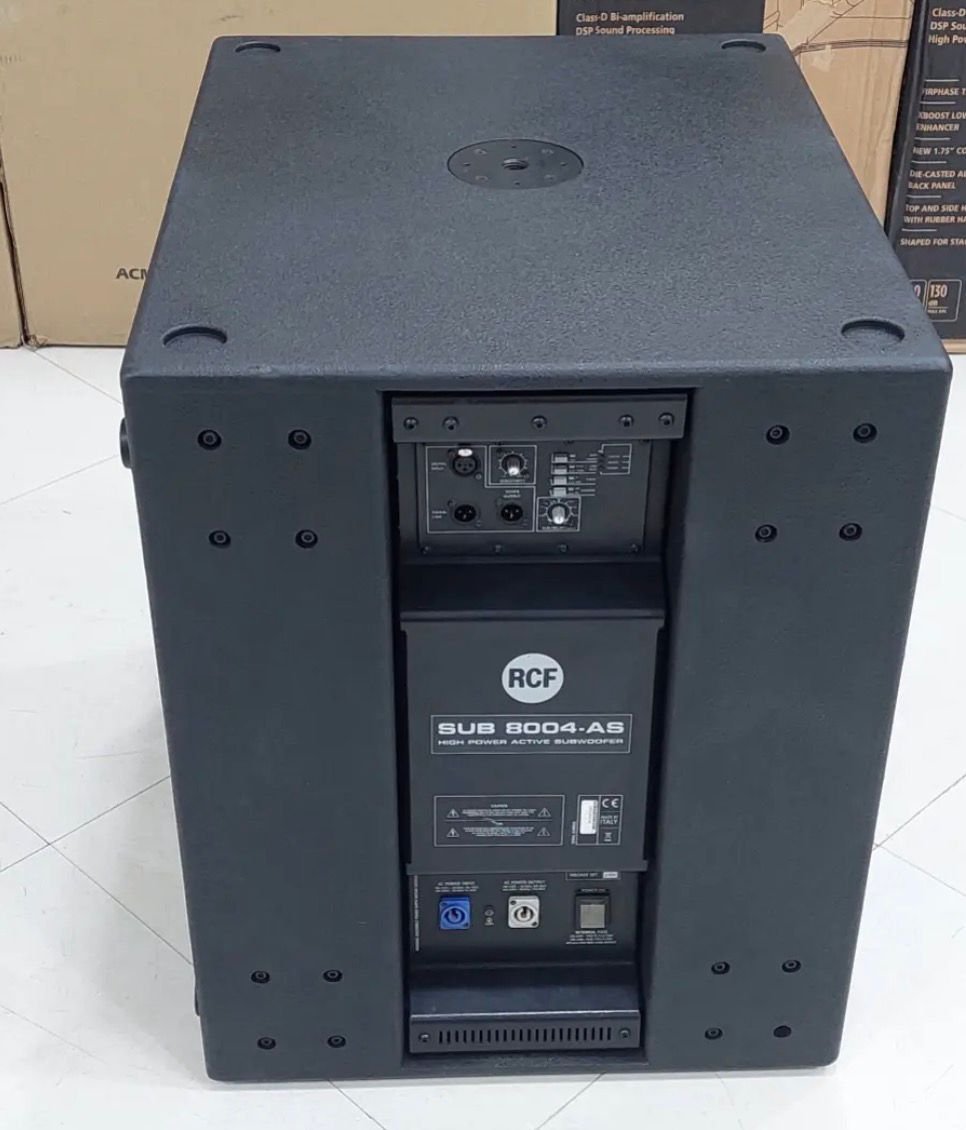

Professional Connectivity
The RCF SUB 8004-AS provides professional XLR input and output connections and supports balanced and unbalanced input signals.
The subwoofer also features PowerCON IN and OUT connections for professional power distribution and system deployment.
The input sensitivity can be configured for -2 dBu or +4 dBu, allowing the subwoofer to integrate into a variety of professional audio signal chains.

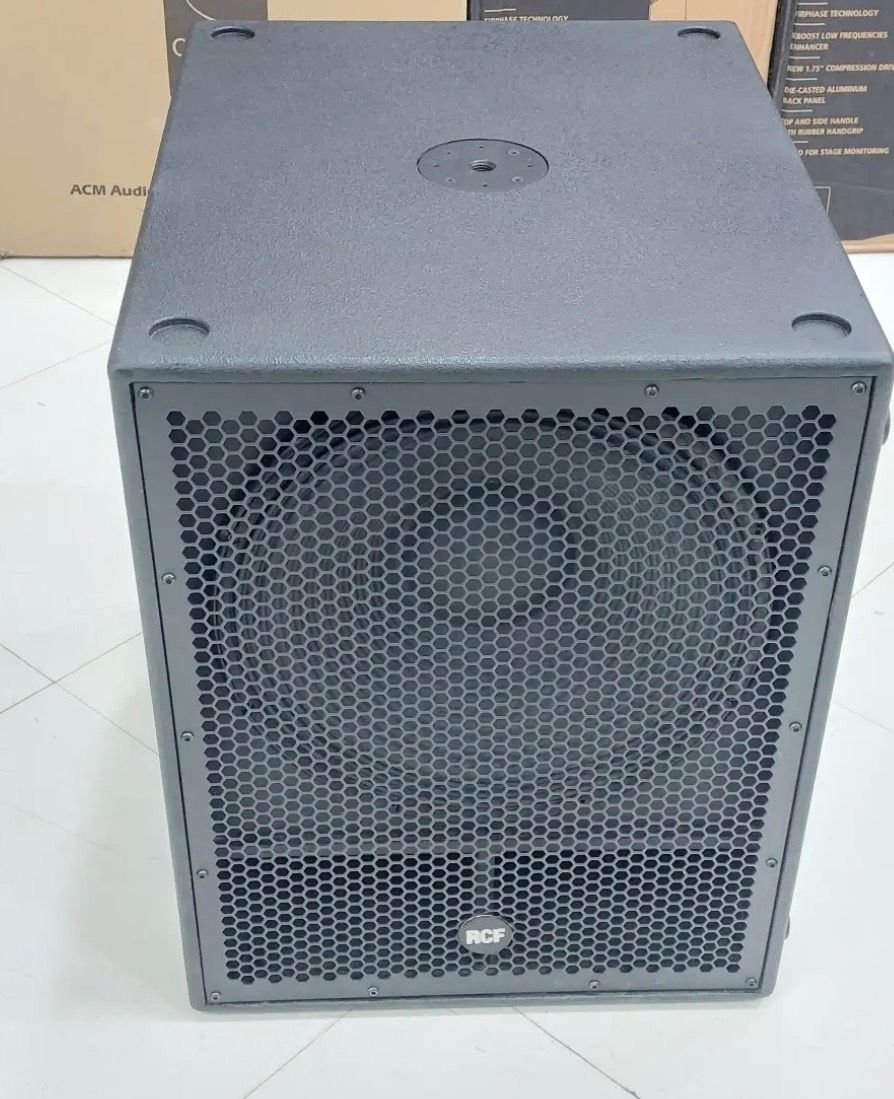

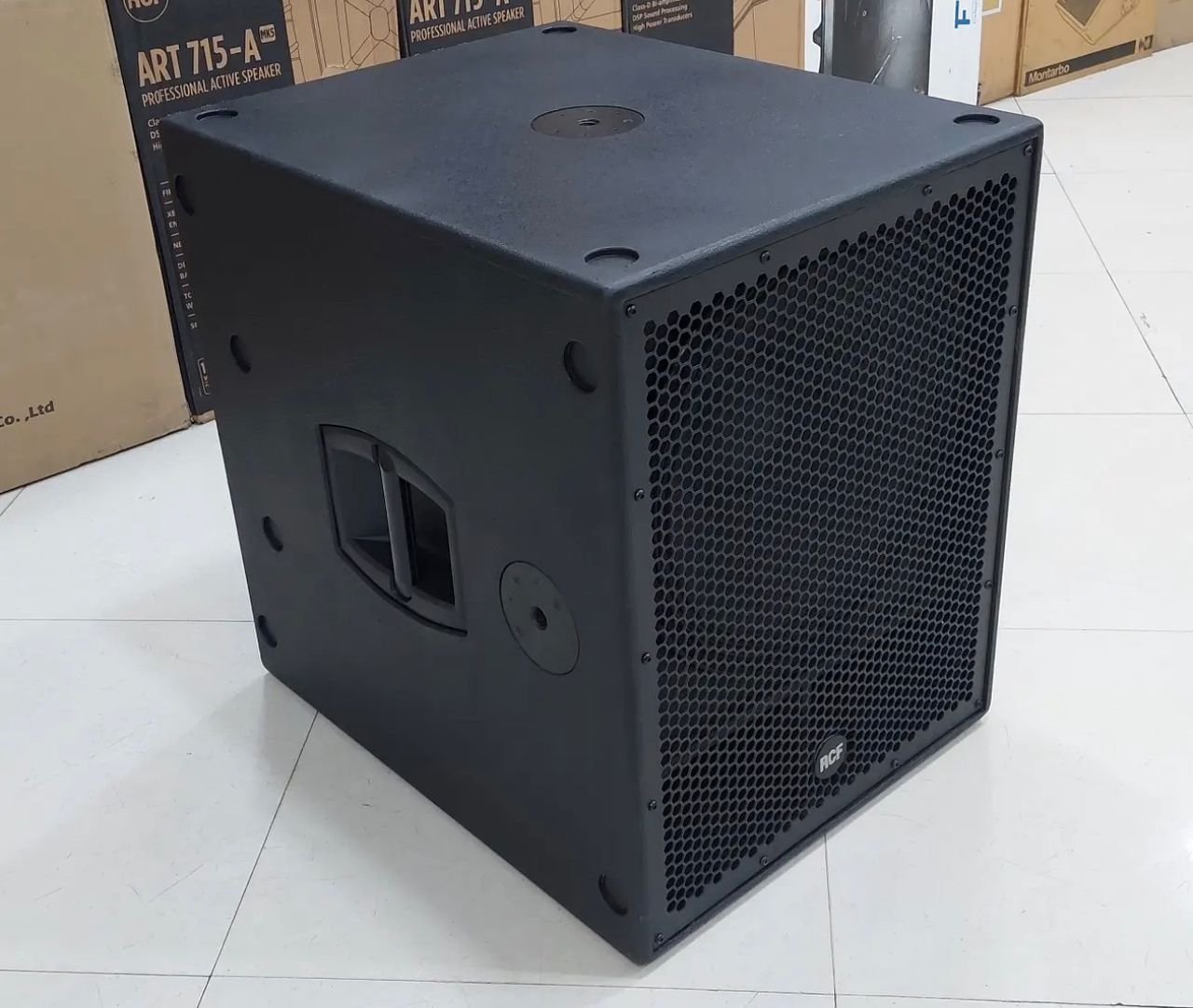

Tour-Grade Baltic Birch Cabinet
The RCF SUB 8004-AS is housed in a rugged Baltic birch plywood enclosure designed for professional use.
The cabinet includes handles on both sides and provisions for four-wheel mounting on the rear panel. An M20 pole mount is also provided for compatible system configurations.

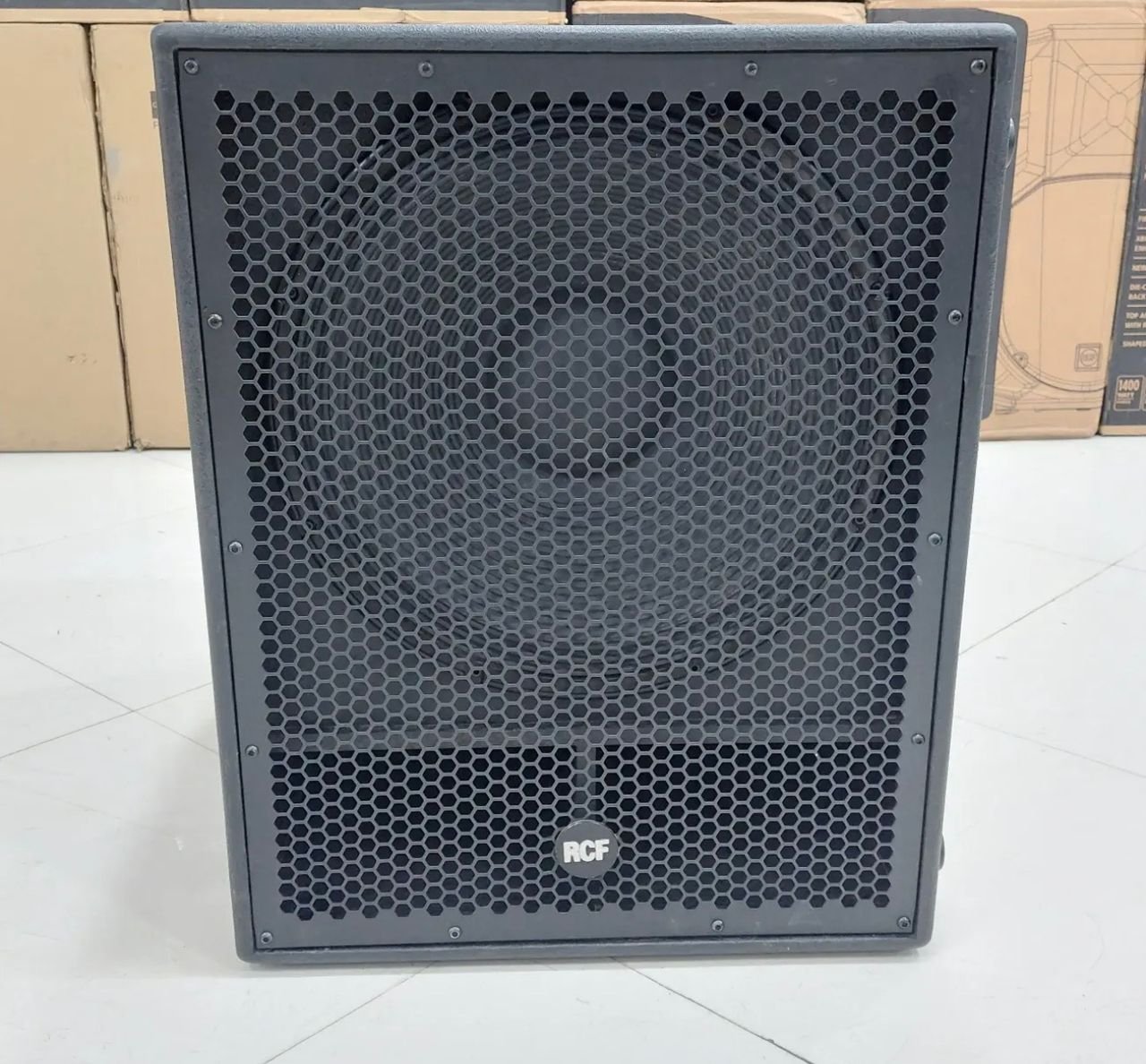

The front of the enclosure features a protective steel grille, while the cabinet is finished in black for a professional appearance.
RCF SUB 8004-AS Dimensions and Weight
The RCF SUB 8004-AS measures 700 mm in height, 558 mm in width and 700 mm in depth.
The total weight of the subwoofer is approximately 56 kg.
These dimensions and weight should be considered when planning transportation, storage, installation and deployment.
RCF SUB 8004-AS Specifications
Product Type: Active high-power subwoofer
Woofer: 1 x 18-inch
Voice Coil: 4-inch
Frequency Response: 30 Hz to 120 Hz
Maximum SPL: 136 dB at 1 metre
Peak Power: 2500 W
RMS Power: 1250 W
Amplifier: Integrated Class-D digital amplifier
Input: Balanced and unbalanced
Input Connector: XLR
Output Connector: XLR
Input Sensitivity: -2 dBu / +4 dBu
High-Pass Frequency: 120 Hz
Low-Pass Frequency: 90 Hz
Protection: Thermal and RMS protection
Limiter: Fast limiter
Controls: Crossover, Phase, Deep/Punch, Output Delay and Cardioid
Cabinet Material: Baltic birch plywood
Dimensions: 700 x 558 x 700 mm
Weight: 56 kg
Color: Black
Professional Applications
The RCF SUB 8004-AS is designed for a wide range of professional audio applications where powerful low-frequency performance is required.
It is suitable for live concerts, touring sound systems, professional PA systems, event production, corporate events, festivals, DJ systems, large venue sound reinforcement, fixed installations and professional rental companies.
Its integrated amplifier and DSP processing make the RCF SUB 8004-AS a practical solution for professional systems that require high output and flexible system configuration.
System Integration
The RCF SUB 8004-AS can be integrated into larger RCF professional sound systems. Its DSP controls allow engineers to configure crossover, phase, delay and other parameters according to the requirements of the complete loudspeaker system.
When designing a complete PA system, the appropriate settings should be selected according to the loudspeaker configuration, acoustic environment and desired coverage.
Why Choose the RCF SUB 8004-AS?
The RCF SUB 8004-AS combines a high-power 18-inch woofer, 2500 W peak amplification, 136 dB maximum SPL and integrated DSP processing in a professional active subwoofer.
Key features include powerful low-frequency output, integrated Class-D amplification, DSP-controlled processing, Deep and Punch modes, phase control, output delay, cardioid functionality and a rugged Baltic birch plywood enclosure.
Buy RCF SUB 8004-AS
If you are looking for a powerful professional RCF SUB 8004-AS for live sound, touring, events, rental production or installation, this 18-inch active subwoofer provides a high-output solution with integrated amplification and DSP processing.
Contact Bsound Pro Audio for current availability, pricing, shipping options and system requirements.
Contact us today to check availability for the RCF SUB 8004-AS.
