Powersoft K20 DSP 2-Channel Professional Power Amplifier

Powersoft K20 DSP Professional Power Amplifier

High-Output Touring Power in a Compact Rack Design

The Powersoft K20 DSP is a high-performance, two-channel professional power amplifier designed for demanding touring sound systems, large-scale live events, and professional audio installations. Combining substantial output capability with integrated digital signal processing, the K20 DSP offers professional sound engineers and rental companies a powerful amplification solution in a compact 1U rack format.

With an output rating of up to 9,000 watts per channel at 2 ohms, the Powersoft K20 DSP is built for applications that require considerable power, reliable system control, and efficient use of rack space. Its high output capability makes it particularly relevant to professional low-frequency reinforcement systems and other compatible loudspeaker configurations that demand substantial amplifier headroom.

At Bsound Pro Audio, we supply professional audio equipment to sound rental companies, touring professionals, production businesses, and audio system integrators. Contact our team to enquire about Powersoft K20 DSP availability, pricing, condition, and delivery options.

Powersoft K20 DSP: Built for Professional Sound Reinforcement

Professional amplification is about more than the advertised wattage. System compatibility, signal processing, operational control, rack space, and power management all influence the suitability of an amplifier for a demanding production environment.

The Powersoft K20 DSP brings these considerations together in a touring-oriented design. Its two-channel architecture supports compatible stereo configurations, while bridge mode provides an alternative arrangement for applications requiring higher output from a single bridged channel pair.

The integrated DSP platform allows sound engineers to configure important system parameters without relying exclusively on external processing equipment. Depending on the installed DSP configuration, available processing functions include crossover filtering, equalisation, delay, and loudspeaker protection limiting.

For production companies managing several amplifier racks, the compact design also helps reduce the amount of rack space required for high-output amplification.

Whether you are expanding an existing inventory or sourcing amplification for a new sound system, the K20 DSP is worth considering when its output capability, processing functions, and compatibility meet the requirements of your loudspeakers.

Key Features of the Powersoft K20 DSP

– Two-channel professional touring power amplifier.
– Up to 9,000 W per channel at 2 ohms.
– Up to 5,200 W per channel at 4 ohms.
– Up to 2,700 W per channel at 8 ohms.
– Bridge-mode operation rated up to 18,000 W at 4 ohms.
– Integrated digital signal processing.
– Compact 1U rack-mountable design.
– Power Factor Correction for improved power-supply efficiency.
– Universal power-supply design.
– Adjustable gain and input sensitivity.
– Integrated amplifier protection functions.
– Monitoring and configuration capabilities.
– Designed for demanding professional touring and sound reinforcement applications.

Output figures are manufacturer specifications measured under stated test conditions. Actual operating performance depends on the load, mains supply, signal, operating conditions, and configuration.

Powerful Amplification for Subwoofers and Touring Systems

The Powersoft K20 DSP is particularly attractive for professional sound systems requiring substantial low-frequency amplification. Its high available output makes it a candidate for compatible high-power subwoofer configurations used in concert touring, festival production, large event venues, and rental inventories.

For companies operating large-format PA systems, amplifier selection has a direct effect on system performance and deployment requirements. A suitable amplifier must provide the required power while operating within the loudspeaker manufacturer’s specified impedance, voltage, and processing limits.

The K20 DSP offers considerable output capability across different load impedances, allowing system designers to evaluate its suitability for a range of compatible configurations.

Before purchasing, confirm that the amplifier’s output capability matches the loudspeaker’s continuous and peak power requirements. The manufacturer’s recommended presets, crossover settings, polarity, and protection parameters should also be observed wherever applicable.

The K20 DSP should not be selected on wattage alone. The correct amplifier configuration depends on the specific loudspeaker model, number of cabinets, wiring arrangement, and intended application.

Integrated DSP for Greater System Control

One of the main advantages of the Powersoft K20 DSP over a basic power amplifier is its integrated digital signal processing.

Depending on the installed configuration, the DSP platform provides tools for adjusting the signal delivered to the loudspeakers. These functions can include equalisation, crossover filtering, delay, and limiting.

Equalisation helps shape frequency response according to the requirements of the sound system and the operating environment. Crossover filtering separates frequency ranges where the system requires different loudspeaker components to reproduce different portions of the audio spectrum.

Delay processing supports time alignment between loudspeakers positioned at different distances. Limiting helps manage output levels and protect compatible loudspeakers when the system is configured correctly.

These tools are particularly useful for professional sound engineers working with complex PA systems, subwoofer arrays, and touring setups that require consistent system configuration.

The availability of specific features depends on the installed hardware and firmware. Buyers should verify the exact DSP configuration of the individual amplifier before purchase.

## Compact 1U Rack-Mountable Construction

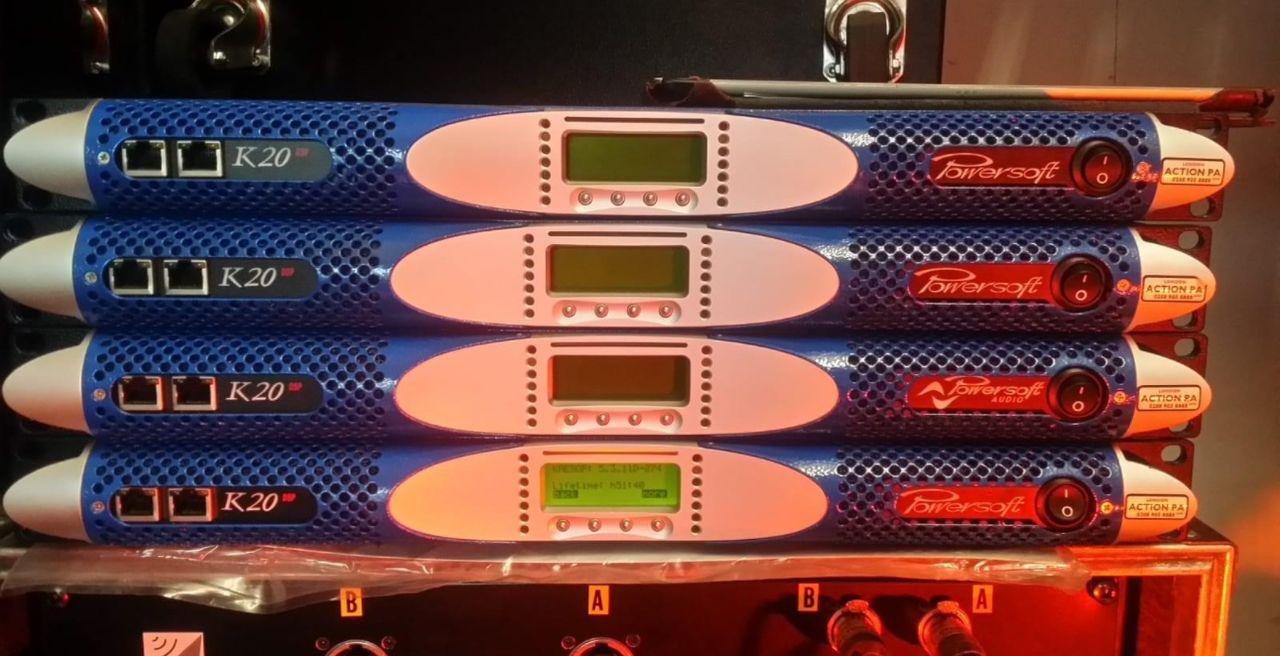

Despite its substantial output capability, the Powersoft K20 DSP occupies just one rack unit.

For touring companies and audio rental businesses, rack space is an important operational consideration. Compact amplification allows equipment racks to be designed around the practical requirements of transport, installation, cable management, and system deployment.

A 1U amplifier can be particularly useful when multiple units are required in a larger production system. The K20 DSP combines its compact rack format with a manufacturer-specified weight of approximately 12 kg, depending on configuration.

Its relatively compact construction can help simplify equipment organisation for touring professionals and rental companies handling frequent load-ins and load-outs.

Proper rack ventilation and clearance remain essential. The amplifier uses temperature-controlled cooling, and its installation should follow the manufacturer’s requirements for airflow and operating conditions.

## Power Factor Correction and Power Management

The Powersoft K20 DSP incorporates Power Factor Correction in its universal switch-mode power supply.

Power Factor Correction helps manage the relationship between current drawn from the mains supply and the power delivered to the amplifier. This is an important consideration for professional touring equipment operating in environments where power distribution and available electrical capacity must be planned carefully.

The amplifier also incorporates functions for managing its operation and protecting the output stages under specified fault or overload conditions.

These include protection against short circuits, DC conditions, excessive temperature, and other potentially damaging operating circumstances.

Protection circuitry is an important part of professional amplifier design, but it should not replace correct system configuration. Loudspeakers must still be operated within their specified limits, and the amplifier must receive an appropriate mains supply.

For larger productions, power distribution should be designed around the expected operating load rather than the amplifier’s idle consumption.

## Monitoring and Operational Control

Professional sound engineers need to monitor equipment status and identify problems efficiently during setup and operation.

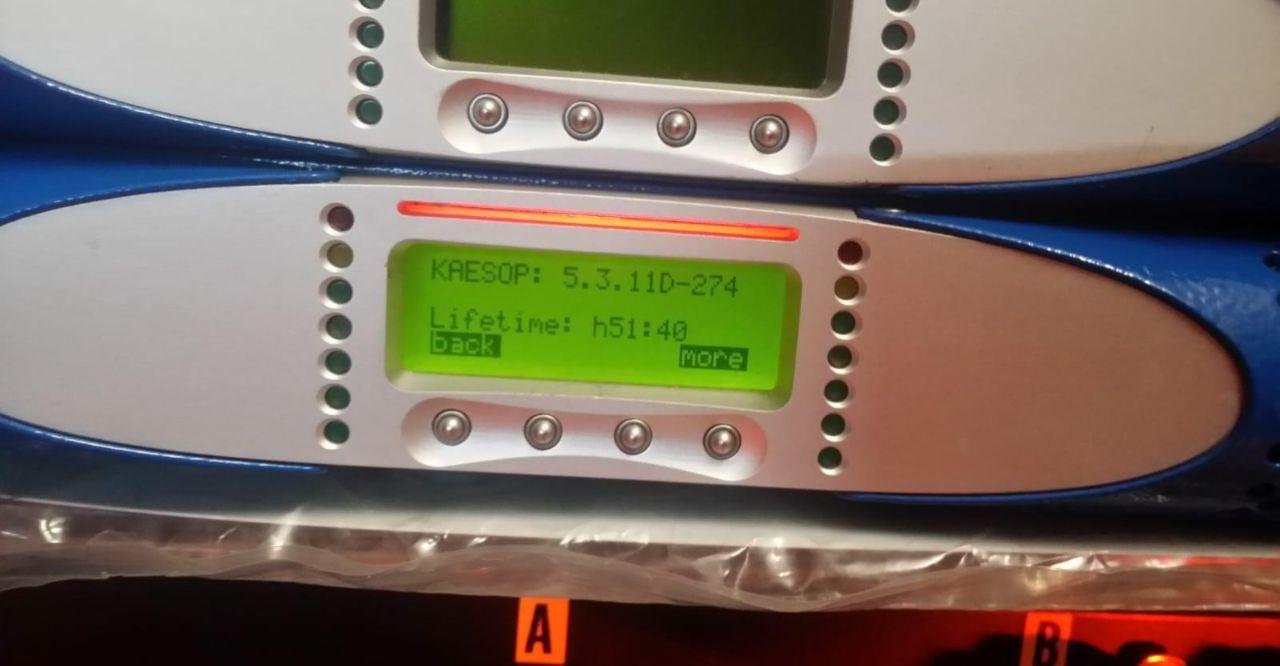

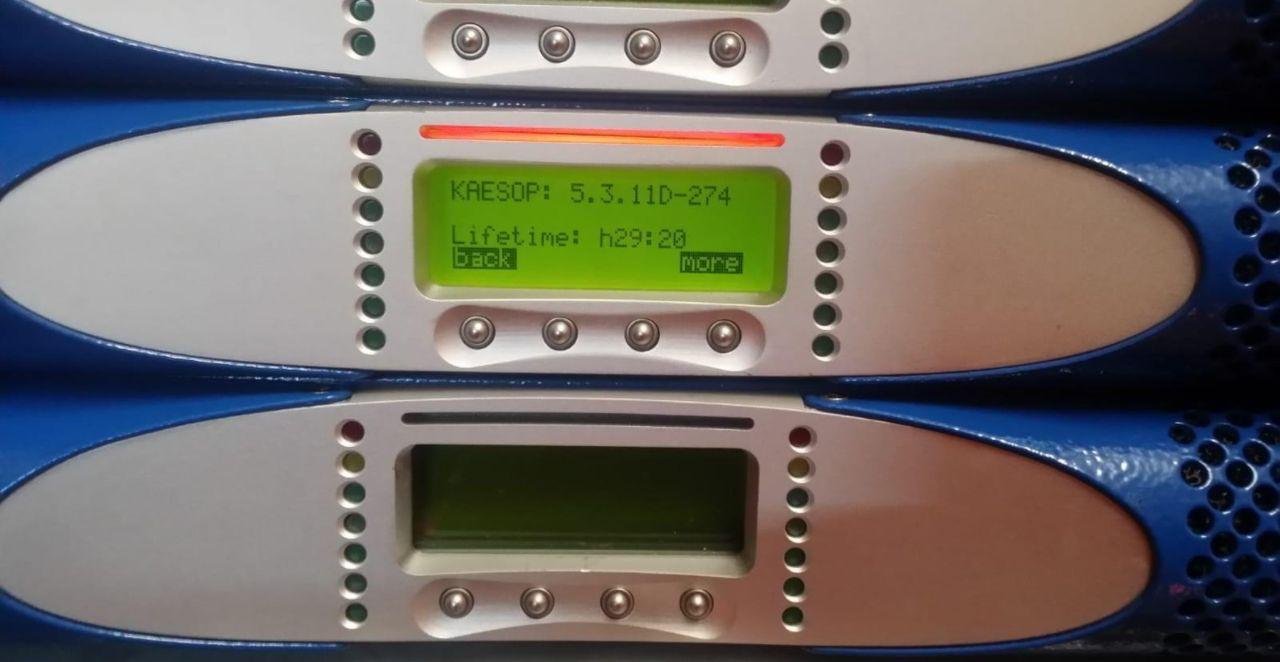

The Powersoft K20 DSP provides front-panel controls and a display for accessing amplifier settings and operational information. The K Series platform also incorporates monitoring and diagnostic functions, including information about operating conditions and output performance.

Depending on the installed configuration, supported interfaces and monitoring functions allow users to access additional information for system management.

These capabilities can help technicians identify operational issues, review amplifier status, and maintain more consistent equipment management across professional sound systems.

For companies operating several amplifier racks, monitoring and diagnostic information can be particularly useful during commissioning, troubleshooting, and routine maintenance.

Buyers should verify the precise networking and remote-control capabilities of the individual unit, especially when those features are essential to the intended installation.

## Technical Specifications

The following specifications are based on Powersoft’s published K20 series documentation.

General specifications

– Brand: Powersoft
– Model: K20 DSP
– Product category: Professional power amplifier
– Amplifier channels: 2
– Rack format: 1U
– Intended applications: Professional touring, live sound reinforcement, and compatible high-power loudspeaker systems

Output power per channel

– 2 ohms: 9,000 W
– 4 ohms: 5,200 W
– 8 ohms: 2,700 W

Bridge-mode output power

– 4 ohms: 18,000 W
– 8 ohms: 10,400 W

Power supply and electrical specifications

– Power-supply type: Universal regulated switch-mode supply
– Power Factor Correction: Yes
– Published operating voltage: 90 V to 264 V
– Nominal mains range: 100 V to 240 V, depending on configuration and specified tolerance
– Mains frequency: 50/60 Hz

Audio connections and processing

– Analogue inputs: Balanced-compatible Neutrik Combo XLR/jack connectors
– Loudspeaker outputs: Neutrik Speakon connectors
– DSP: Integrated, subject to the installed configuration
– Available processing functions: Equalisation, crossover filtering, delay, and limiting, depending on configuration
– Controls: Front-panel display and operating menu

Physical specifications

– Rack format: Standard 19-inch rack
– Height: Approximately 1U, or 4.5 cm
– Depth behind rack-mounting surface: Approximately 47.5 cm
– Weight: Approximately 12 kg, depending on configuration

These ratings should be interpreted according to the manufacturer’s measurement conditions. The actual amplifier in stock should be checked for its exact model designation, DSP configuration, mains connector, firmware, and operating condition before the specifications are used for a purchase decision.

## Why Choose the Powersoft K20 DSP?

The Powersoft K20 DSP is worth considering for professional users who need substantial amplification in a compact format.

Its principal advantages include high output capability, two-channel operation, integrated DSP, and a rack design that can help make efficient use of touring equipment space.

For sound rental companies, the combination of output power and compact construction can be valuable when building systems for concerts, festivals, corporate productions, and other events that require powerful sound reinforcement.

For system integrators, the K20 DSP offers a platform that combines amplification and signal processing in one unit. This can help simplify equipment layouts where its available processing and control functions meet the project’s requirements.

For buyers upgrading an existing amplifier inventory, the most important considerations are compatibility, condition, configuration, and price. An amplifier should be evaluated against the requirements of the intended system rather than selected solely because of its maximum power rating.

The K20 DSP is an older, discontinued model, so prospective buyers should also consider serviceability, replacement parts, available technical support, and the exact condition of the unit.

At Bsound Pro Audio, we encourage customers to confirm their requirements before purchasing professional amplification equipment. Our team can assist with availability enquiries and provide further information about the stock currently offered for sale.

## Buy the Powersoft K20 DSP from Bsound Pro Audio

Looking for a Powersoft K20 DSP professional amplifier?

Bsound Pro Audio supplies professional sound equipment for touring companies, audio rental businesses, production professionals, and system integrators. We work with buyers looking for amplification and loudspeaker equipment for demanding professional applications.

Contact our team to enquire about the current availability and price of the Powersoft K20 DSP. We can discuss the condition and configuration of available units, shipping arrangements, and the information required to help you make an informed purchase.

Before placing an order, buyers should confirm the exact unit configuration, accessories included, electrical compatibility, and any applicable warranty or after-sales arrangements.

If you are building a complete PA system, we can also discuss compatible professional loudspeakers, subwoofers, and other audio equipment according to your requirements.

Enquire today about the Powersoft K20 DSP amplifier and request a current quotation from Bsound Pro Audio
