Complete NEXO STM System

NEXO STM Complete System for Sale

€35,000 Complete NEXO STM System Package

NEXO STM system for sale at €35,000. This complete professional NEXO PA system combines a substantial quantity of STM M46 main modules, B112 bass modules, M28 omni-purpose modules, S118 sub modules and RS18 subwoofers with NEXO NUAR racks and NXAMP amplification.

This package is designed for professional sound companies, touring productions, concert promoters, festival production, large-scale events, rental companies and installation projects requiring a serious NEXO line array system with matching amplification.

Complete Package Inventory

– 48 x NEXO STM M46
– 48 x NEXO STM B112
– 18 x NEXO STM M28
– 36 x NEXO STM S118
– 24 x NEXO RS18
– 7 x NEXO NUAR racks
– 14 x NEXO NXAMP 4×4 installed in the NUAR racks
– 3 x NEXO NXAMP 4×4 MK2
– 7 x NEXO NXAMP 4×4
– 24 NXAMP 4×4 amplifiers in total across the complete package
– Complete package price: €35,000

## NEXO STM M46 Main Modules

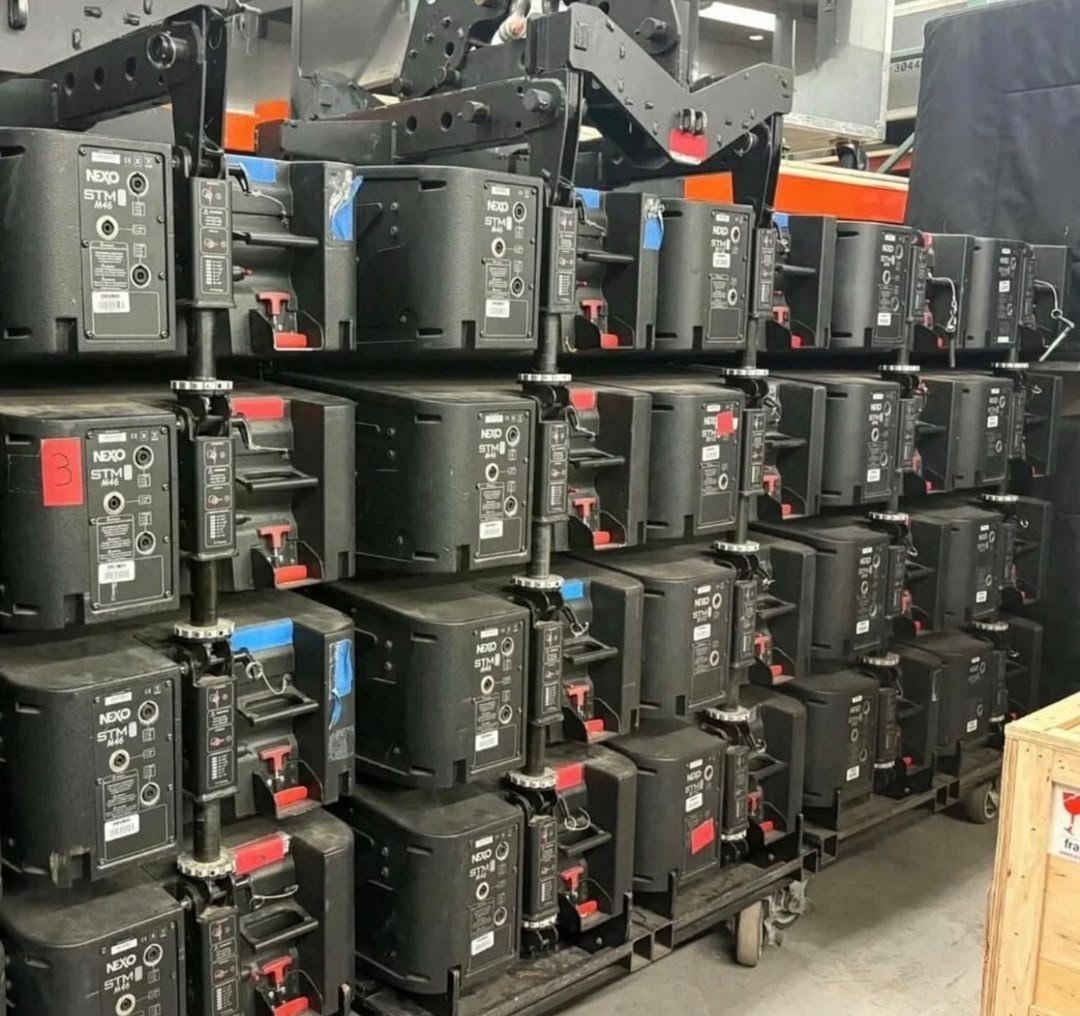

The NEXO STM M46 is the main line array module within the STM system. It was designed as a high-output modular line array element for professional sound reinforcement applications.

The M46 incorporates four 6.5-inch LF/MF drivers and four HF compression drivers. NEXO specifies a nominal peak SPL of up to 145 dB and a horizontal dispersion of 90 degrees, with vertical coverage determined by the array configuration. The published frequency response is 85 Hz to 19 kHz ±3 dB, with a usable range of 80 Hz to 20 kHz at -6 dB. (NEXO)

The STM architecture allows the M46 to be combined with B112 bass modules and S118 sub modules, creating scalable configurations according to the requirements of the venue and production.

With 48 NEXO M46 modules included, this package provides a substantial inventory of main line array elements for large professional deployments.

## NEXO STM B112 Bass Modules

The NEXO STM B112 is the dedicated bass module designed to work as part of the STM modular system.

The B112 uses a 12-inch high-excursion low-frequency driver and is designed to integrate with STM M46 and M28 modules. NEXO lists a frequency response of 63 Hz to 200 Hz ±3 dB, a usable range of 55 Hz to 250 Hz at -6 dB and a nominal peak SPL of 141 dB when operated with the specified NXAMP 4×4 processing and amplification. (NEXO)

This package includes 48 NEXO B112 modules, giving the system a substantial amount of dedicated low-frequency reinforcement within the STM configuration.

The M46 and B112 combination is one of the core building blocks of the STM system, allowing professional users to scale the system according to audience size, venue geometry and required output.

## NEXO STM M28 Omni-Purpose Modules

The NEXO STM M28 is a versatile module within the STM platform. NEXO describes the M28 as an omni-purpose cabinet that can be used as a downfill element or independently to create compact line array systems. It can provide configurable horizontal dispersion from 90 to 120 degrees with vertical splay between modules. (NEXO)

The M28 uses two 8-inch LF drivers and two HF compression drivers. NEXO specifies a frequency response of 65 Hz to 19 kHz ±3 dB and a usable range of 60 Hz to 20 kHz at -6 dB. The M28 can therefore serve an important role in extending coverage and adapting an STM system to different venue layouts. (NEXO)

This package includes 18 NEXO M28 modules, making it possible to configure additional coverage, downfill or compact arrays depending on the production requirements.

## NEXO STM S118 Sub Modules

The NEXO STM S118 provides dedicated sub-bass extension for the STM platform. It is designed to integrate with the STM M46 and B112 system and can be used in different configurations depending on the application.

NEXO’s STM documentation identifies the S118 as the sub-bass module for the STM system and notes that the module extends the system’s low-frequency response down toward 25 Hz. (NEXO)

With 36 NEXO S118 modules included, this package offers a substantial dedicated subwoofer inventory for high-output live sound and touring applications.

The S118 quantity also gives system designers significant flexibility when configuring flown subwoofer arrays, ground-stacked subwoofer configurations or larger low-frequency deployments.

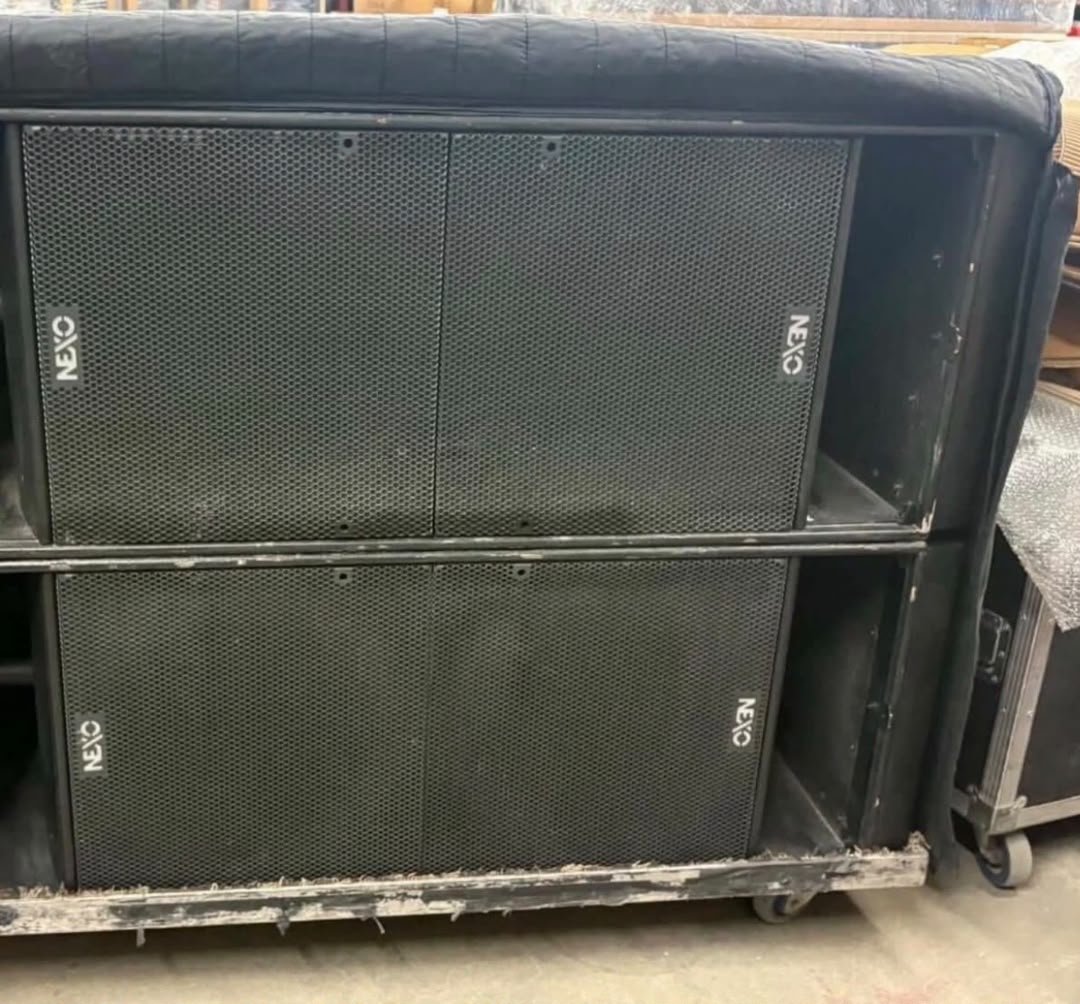

## NEXO RS18 Subwoofers

The package also includes 24 NEXO RS18 subwoofers.

The RS18 can be deployed alongside the STM system as additional low-frequency reinforcement. NEXO has documented STM configurations using RS18 subwoofers together with S118 modules, including large-scale event and stadium applications. (NEXO)

Having both S118 and RS18 inventory available gives the buyer additional flexibility when designing the low-frequency section of a large sound system.

## NEXO NUAR Amplifier Racks

Included in the package are 7 NEXO NUAR racks.

NUAR stands for NEXO Universal Amp Rack. NEXO designed the NUAR concept around the STM system to provide a compact, scalable amplification platform. According to NEXO, a NUAR rack can accommodate NXAMP 4×4 amplification and is designed to power 12 STM modules in different combinations. (NEXO)

The seven NUAR racks in this package contain 14 NEXO NXAMP 4×4 amplifiers, providing an integrated amplification solution for the STM inventory.

In addition to the amplifiers installed in the NUAR racks, the package includes:

– 3 x NEXO NXAMP 4×4 MK2
– 7 x NEXO NXAMP 4×4

This gives the complete package 24 NXAMP 4×4 amplifiers in total, based on the supplied inventory.

## NEXO NXAMP 4×4 Amplification

The NEXO NXAMP 4×4 is an important part of the STM ecosystem. NEXO specifies the NXAMP 4×4 as the amplified controller for STM modules and provides dedicated presets and processing for the system. (NEXO)

Using the intended NEXO amplification and processing allows the STM modules to operate as an integrated system rather than as unrelated loudspeaker components.

For professional rental companies and touring sound providers, having the matching NEXO amplification included with the loudspeaker inventory can significantly simplify system deployment and configuration.

## A Complete NEXO PA System for Professional Applications

This is not a small PA package. The quantity makes this NEXO STM system particularly suited to professional production environments where multiple hangs, large audience areas, substantial subwoofer deployment and system scalability are required.

The package can be considered by:

– Professional audio rental companies
– Touring sound companies
– Concert production companies
– Festival production companies
– Large event production companies
– Corporate event production companies
– Performing arts venues
– Large entertainment venues
– Professional sound system installers
– Production companies expanding their NEXO inventory

The STM platform was specifically developed around modularity. NEXO describes the system as a combination of M46, B112, M28 and S118 modules that can be configured in different combinations according to the application. (NEXO)

This makes the package particularly interesting for a company that needs one substantial inventory capable of being configured for different productions rather than relying on a single fixed PA configuration.

## Proven STM System Architecture

The NEXO STM system has been used in demanding large-scale applications. NEXO’s own published case studies document STM configurations combining M46, B112, M28, S118 and RS18 components with NXAMP amplification for major live events and large venues. (NEXO)

For example, NEXO has documented an STM deployment using M46/B112 main arrays, S118 subwoofers, M28 downfills and RS18 subwoofers, powered by NXAMP 4×4 amplification. (NEXO)

This demonstrates the flexibility of the STM architecture for professional sound reinforcement applications where system coverage, output and scalable configuration are important.

## Why Buy This Complete NEXO STM Package?

Buying a complete system rather than individual loudspeaker components can make sense for professional rental and production companies that need a coherent inventory ready for deployment.

This package brings together the major STM system elements:

Main arrays: 48 x NEXO M46

Bass modules: 48 x NEXO B112

Omni-purpose and downfill modules: 18 x NEXO M28

Sub-bass: 36 x NEXO S118

Additional subwoofers: 24 x NEXO RS18

Amplification: 24 x NEXO NXAMP 4×4 amplifiers across NUAR racks and standalone units

Amplifier racks: 7 x NEXO NUAR

The result is a large-scale NEXO inventory that can be configured around the requirements of different productions.

## NEXO STM System Price

### Complete package: €35,000

The complete NEXO STM package is available for €35,000.

This package price covers the equipment listed above as one complete system package. Buyers interested in acquiring the entire inventory can contact us directly for availability, condition details, photographs, shipping options and purchasing arrangements.

For professional buyers who require only selected components, contact us to discuss individual equipment availability and package options.

## NEXO STM System for Sale in Europe

This complete NEXO STM system for sale is aimed at professional buyers in Europe and international markets.

Whether you are expanding an existing rental fleet, building a touring system or looking for a substantial inventory of NEXO STM components, this package offers a large quantity of matched system equipment in one transaction.

The combination of M46, B112, M28 and S118 modules follows the modular architecture of the NEXO STM platform, while the included NUAR racks and NXAMP amplification provide the system’s dedicated amplification infrastructure. (NEXO)

Contact Bsound Pro Audio

For the complete NEXO STM system at €35,000, contact Bsound Pro Audio for current availability, equipment condition, additional photographs, shipping arrangements and purchasing information.

Serious professional buyers are welcome to contact us directly for further information and package discussions.

## NEXO STM System Specifications at a Glance

| Component | Quantity |
|—|—:|
| NEXO STM M46 | 48 |
| NEXO STM B112 | 48 |
| NEXO STM M28 | 18 |
| NEXO STM S118 | 36 |
| NEXO RS18 | 24 |
| NEXO NUAR Rack | 7 |
| NXAMP 4×4 inside NUAR racks | 14 |
| NXAMP 4×4 MK2 | 3 |
| Additional NXAMP 4×4 | 7 |
| Total NXAMP 4×4 amplifiers | 24 |
| Complete package price | €35,000 |

### Final Note

The NEXO STM platform is built around scalable system design, allowing M46, B112, M28 and S118 modules to be combined according to the requirements of the application. This complete package provides an unusually substantial inventory of STM loudspeakers, subwoofers, NUAR racks and NXAMP amplification for a single purchase.

€35,000 for the complete package.

Contact Bsound Pro Audio for availability,
