L-Acoustics A10 Wide Professional Loudspeaker | Excellent Condition

L-Acoustics A10 Wide Professional Loudspeaker in Excellent Condition

L-Acoustics A10 Wide is a professional 2-way passive loudspeaker designed for demanding live sound, touring, event production and professional sound reinforcement applications. This L-Acoustics A10 Wide is offered in excellent condition and provides the combination of high acoustic performance, controlled directivity, compact dimensions and flexible deployment expected from the L-Acoustics A Series.

The L-Acoustics A10 Wide is designed as a medium-throw loudspeaker that can be used individually as a configurable point source or combined with other A10 enclosures to create a vertical line source. Its 30° enclosure geometry allows compact arrays to be deployed radially, while Panflex technology provides adjustable horizontal directivity for different audience geometries.

With a 10-inch neodymium low-frequency driver and a 2.5-inch neodymium diaphragm compression driver, the L-Acoustics A10 Wide provides a professional solution for applications requiring clear vocal reproduction, controlled coverage and high acoustic output.

The L-Acoustics A10 Wide offers a usable bandwidth of 67 Hz to 20 kHz and a maximum SPL of up to 137 dB under the manufacturer’s specified measurement conditions. Its relatively compact 20 kg enclosure also makes it practical for professional touring, rental and event production environments.

Professional L-Acoustics A10 Wide Loudspeaker

The L-Acoustics A10 Wide is part of the A Series, a family of professional loudspeakers designed to provide flexibility and scalable performance for medium-throw applications.

The A10 Wide uses a 2-way passive constant-curvature WST architecture. This design allows the enclosure to be used in different configurations depending on the requirements of the sound system.

For professional sound companies, this flexibility can be particularly useful because the same loudspeaker platform can be deployed for different types of events. The A10 Wide can be used individually when a point-source configuration is appropriate, or multiple units can be combined to form a vertical line source.

This makes the loudspeaker suitable for applications ranging from small and medium events to larger productions where additional A10 Wide cabinets can be integrated into a scalable system.

2-Way Passive 10-Inch Design

The L-Acoustics A10 Wide uses a 2-way passive design with one 10-inch neodymium cone driver and one 2.5-inch neodymium diaphragm compression driver.

The 10-inch low-frequency driver provides the main low and mid-frequency reproduction, while the 2.5-inch compression driver handles the high-frequency section.

This configuration provides a balance between cabinet size, acoustic output and professional sound quality.

The passive design also allows the loudspeaker to be powered through compatible L-Acoustics amplified controllers. The A10 Wide is specified for amplification with the LA4X, LA8 and LA12X.

Using the correct L-Acoustics amplification and presets is important for achieving the intended system performance and protecting the loudspeaker components.

67 Hz to 20 kHz Usable Bandwidth

The L-Acoustics A10 Wide provides a specified usable bandwidth of 67 Hz to 20 kHz.

This frequency range allows the enclosure to reproduce a broad portion of the audible spectrum and makes it suitable for music, speech, live performance and professional event applications.

For applications requiring deeper low-frequency extension, the A10 Wide can be combined with compatible L-Acoustics subwoofers.

The L-Acoustics KS21, for example, can be used as a companion subwoofer in appropriate system configurations to reinforce the low-frequency range.

Combining the A10 Wide with dedicated subwoofers allows the overall sound system to provide greater low-frequency extension while allowing the main loudspeakers to focus on their intended operating range.

137 dB Maximum SPL

The L-Acoustics A10 Wide is specified with a maximum SPL of up to 137 dB.

This provides the acoustic output required for professional sound reinforcement applications.

The manufacturer’s maximum SPL specification is measured under defined conditions, including free-field measurement at 1 meter using pink noise with the specified crest factor and preset.

Actual performance in a venue can vary depending on system configuration, amplification, processing, acoustic environment, placement and other factors.

For professional rental and production companies, the high output capability of the A10 Wide allows it to be used for demanding live sound applications while maintaining a relatively compact enclosure format.

Panflex Adjustable Horizontal Directivity

A major feature of the L-Acoustics A10 Wide is Panflex technology.

Panflex allows users to adapt the horizontal directivity of the enclosure according to the geometry of the audience area.

The A10 Wide supports horizontal directivity configurations of 70°, 90° and 110° using the L-Fins. The 70° and 110° configurations can be used symmetrically, while the 90° configuration can be configured asymmetrically according to the manufacturer’s specifications.

This flexibility allows system designers to adapt coverage to different venue layouts.

For example, a wider horizontal coverage can be useful when covering a broad audience area, while a narrower configuration can be appropriate when more controlled coverage is required.

This adjustable directivity is one of the characteristics that makes the L-Acoustics A10 Wide suitable for different professional sound reinforcement applications.

30° Vertical Directivity

The A10 Wide has a 30° enclosure angle, which contributes to its ability to function as a constant-curvature line source enclosure.

When used individually, the A10 Wide can provide a 30° vertical coverage pattern.

When multiple A10 Wide enclosures are combined, the 30° enclosure geometry can be used to create compact arrays with controlled vertical coverage.

The exact array configuration should be selected according to the requirements of the venue, audience geometry and intended sound system.

For professional installations and touring applications, system design software and manufacturer-approved configurations can be used to determine the appropriate deployment.

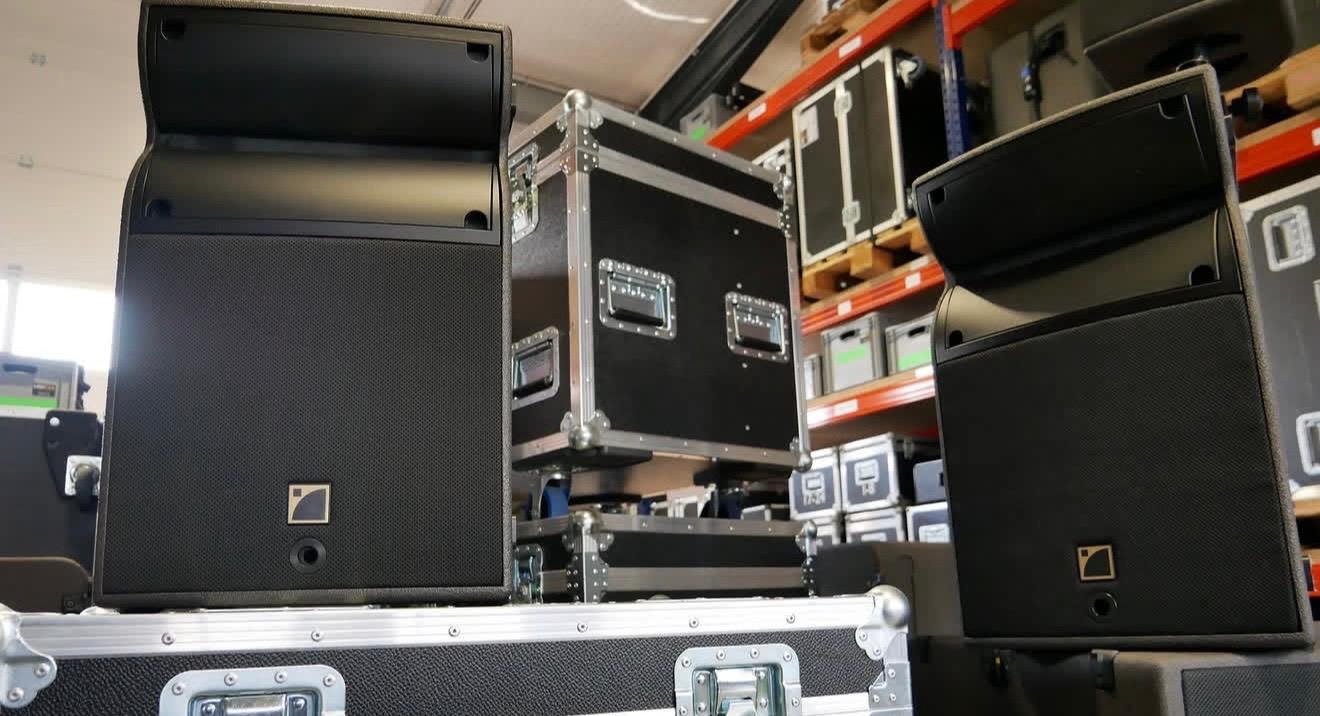

Excellent Condition L-Acoustics A10 Wide

This L-Acoustics A10 Wide is offered in excellent condition.

The loudspeaker is suitable for professional audio companies, rental companies, touring productions, event production businesses, venues and sound engineers looking for high-quality L-Acoustics equipment.

Buying an L-Acoustics A10 Wide in excellent condition can provide a practical way to expand a professional sound inventory while maintaining access to the performance and deployment flexibility of the A Series.

Customers can request additional photographs and availability information before purchase.

For used professional audio equipment, buyers should inspect the cabinet, grille, connectors, rigging components and general physical condition before placing the equipment into professional service.

The condition of the specific unit should always be confirmed before purchase.

Compact 20 kg Professional Enclosure

The L-Acoustics A10 Wide has a net weight of approximately 20 kg, or 44 lb.

This relatively compact weight makes the enclosure practical for professional touring, rental and event production environments where equipment is regularly transported, handled and deployed.

The enclosure measures approximately 581 mm wide, 347 mm high and 367 mm deep.

Its compact physical dimensions allow it to be transported and stored efficiently compared with larger-format professional loudspeakers.

For rental companies, the combination of acoustic output and manageable physical dimensions can be useful when preparing systems for different event sizes.

Professional Rigging and Handling

The L-Acoustics A10 Wide incorporates a flush-fitting 2-point rigging system designed for professional deployment.

The enclosure also includes two handles, eight corner stops, two ground runners and an M8 threaded insert compatible with DIN580 hardware.

The integrated rigging and handling features provide flexibility for flown and stacked configurations.

The A10 Wide can be used in different deployment scenarios depending on the production requirements.

Any flown loudspeaker system should be installed by appropriately qualified personnel using approved rigging components and procedures.

All rigging operations should follow the manufacturer’s documentation and applicable safety requirements.

L-Acoustics A10 Wide for Touring

The L-Acoustics A10 Wide is designed to provide flexible performance for professional production applications.

Touring productions frequently require loudspeakers that can adapt to different venues and audience geometries.

The A10 Wide’s compact enclosure, adjustable directivity and scalable configuration make it suitable for this type of application.

A touring company can use A10 Wide enclosures individually, in compact arrays or together with other A Series loudspeakers depending on the required coverage.

This flexibility allows the system to be adapted to different venue sizes and production requirements.

For larger productions, multiple A10 Wide enclosures can be combined with compatible L-Acoustics subwoofers and amplified controllers to create a complete professional system.

L-Acoustics A10 Wide for Live Events

The L-Acoustics A10 Wide is suitable for a wide range of professional live event applications.

These can include concerts, corporate events, festivals, theaters, houses of worship, conferences, entertainment venues and other professional sound reinforcement environments.

The adjustable horizontal directivity makes it possible to configure the loudspeaker according to the audience geometry.

For events where speech intelligibility is important, controlled coverage can help system designers direct acoustic energy toward the intended audience area.

For music events, the A10 Wide provides the output and frequency range required to operate as part of a professional full-range sound system.

The exact configuration should always be determined according to the venue, audience size and acoustic requirements.

A10 Wide as a Point Source

One of the useful characteristics of the L-Acoustics A10 Wide is its ability to operate individually as a configurable point source.

This allows the loudspeaker to be used in applications where a single enclosure is sufficient for the required coverage.

It can also be used for delay applications or pole-mounted configurations when the appropriate hardware and system design are used.

This provides professional sound companies with another deployment option beyond traditional line source applications.

Instead of requiring a large array for every production, a single A10 Wide can be used where the application calls for a compact high-output loudspeaker with adjustable directivity.

A10 Wide as a Line Source

The L-Acoustics A10 Wide can also be combined with other A10 enclosures to create a vertical line source.

The 30° enclosure geometry allows the cabinets to be deployed in compact configurations.

A10 Wide can also be combined with A10 Focus to create a vertical line source according to the manufacturer’s system configurations.

This makes the A10 Wide a scalable solution for professional sound reinforcement.

A system can therefore be configured according to the required coverage, throw distance and venue geometry rather than relying on a single fixed deployment format.

This flexibility is particularly valuable for rental companies and touring productions working across different venues.

L-Acoustics A10 Wide and A10 Focus

The A10 family includes the A10 Wide and A10 Focus models.

The A10 Wide provides a 30° vertical directivity configuration, while the A10 Focus is designed with a narrower 10° vertical directivity.

Combining the two models can provide additional flexibility when creating a vertical line source.

The appropriate configuration depends on the desired coverage and system design.

For professional sound companies, having access to both A10 Wide and A10 Focus enclosures can allow more precise system configuration across different applications.

L-Acoustics A10 Wide and KS21

The L-Acoustics A10 Wide can be combined with the KS21 subwoofer for systems requiring additional low-frequency extension.

The manufacturer describes the KS21 as a companion subwoofer for the A10 Wide, with the combination extending the system bandwidth to 31 Hz in appropriate configurations.

This type of system allows the A10 Wide to focus on its intended operating range while the subwoofer provides additional low-frequency output.

For concerts and live events, combining professional main loudspeakers with dedicated subwoofers can provide a more complete full-range system.

The number of subwoofers and exact system configuration should be determined according to the venue and production requirements.

Professional L-Acoustics Amplification

The L-Acoustics A10 Wide is designed to be amplified using compatible L-Acoustics amplified controllers.

The manufacturer specifies LA4X, LA8 and LA12X as compatible amplification platforms.

Using compatible amplified controllers allows the loudspeaker to operate with the appropriate processing and system presets.

Professional users should follow the manufacturer’s amplification recommendations and use the appropriate preset for the selected configuration.

Correct amplification and processing are important for achieving the intended performance and maintaining appropriate protection for the loudspeaker.

For rental companies, using compatible L-Acoustics amplification also simplifies integration with other components of a professional L-Acoustics inventory.

Professional Construction

The L-Acoustics A10 Wide enclosure is constructed using premium-grade Baltic beech and birch plywood.

The front of the enclosure uses a coated steel grille with acoustically neutral 3D fabric.

The rigging components are made from high-grade steel with an anti-corrosion coating.

These construction characteristics are designed for professional sound reinforcement environments where equipment may be transported and deployed repeatedly.

The enclosure also has an IP55 rating according to the manufacturer’s specifications.

Professional users should nevertheless follow the manufacturer’s guidance for transportation, storage, weather protection and deployment.

Proper handling and maintenance can help preserve the condition of the equipment over its working life.

L-Acoustics A10 Wide for Rental Companies

The A10 Wide can be a useful addition to a professional rental inventory because of its deployment flexibility.

Rental companies often need loudspeakers that can serve different types of clients and events.

The A10 Wide can be used as an individual loudspeaker, as part of a compact array or as a component of a larger A Series system.

Its adjustable horizontal directivity provides additional flexibility when preparing systems for different venues.

Its approximately 20 kg weight also makes it practical for transportation and handling.

For rental companies already using L-Acoustics equipment, the A10 Wide can complement existing systems and provide additional options for medium-throw applications.

L-Acoustics A10 Wide for Corporate Events

Corporate events often require clear and consistent sound coverage for presentations, speeches, live music and multimedia content.

The A10 Wide can be used in professional corporate sound systems where controlled coverage and compact deployment are important.

Its Panflex technology allows horizontal directivity to be adapted according to the audience layout.

The enclosure can also be used in stacked or flown configurations depending on the venue and system design.

For larger corporate events, multiple A10 Wide loudspeakers can be combined with compatible subwoofers and amplification to create a complete sound reinforcement system.

L-Acoustics A10 Wide for Concerts and Festivals

Concerts and festivals place significant demands on professional loudspeaker systems.

The A10 Wide can be used in applications where medium-throw coverage, high output and scalable deployment are required.

Multiple A10 Wide enclosures can be configured into line source systems, while compatible subwoofers can provide additional low-frequency output.

The 137 dB maximum SPL specification provides substantial acoustic output for professional applications.

For larger outdoor events, the system configuration should be designed according to audience size, venue dimensions, desired coverage and acoustic requirements.

Professional system designers should use the appropriate L-Acoustics design tools and manufacturer-approved configurations when planning larger deployments.

L-Acoustics A10 Wide Specifications

The key specifications of the L-Acoustics A10 Wide include:

Product: L-Acoustics A10 Wide

Type: 2-way passive constant-curvature WST enclosure

Application: Medium-throw professional sound reinforcement

Low-frequency section: 1 × 10-inch neodymium cone driver

High-frequency section: 1 × 2.5-inch neodymium diaphragm compression driver

Usable bandwidth: 67 Hz–20 kHz

Maximum SPL: Up to 137 dB

Horizontal directivity: 70° / 90° / 110°

Vertical directivity: 30°

Nominal impedance: 8 ohms

Acoustical load: L-Vents bass-reflex

HF waveguide: DOSC with Panflex

Amplification: LA4X / LA8 / LA12X

Connectors: 2 × 4-point speakON

Rigging: Flush-fitting 2-point rigging system

Net weight: 20 kg / 44 lb

Dimensions: 581 × 347 × 367 mm

Cabinet: Premium-grade Baltic beech and birch plywood

Front grille: Coated steel grille with acoustically neutral 3D fabric

IP rating: IP55

Condition: Excellent

These specifications are based on the current L-Acoustics A10 Wide product information. Buyers should consult the manufacturer’s latest documentation for the exact specifications and approved system configurations applicable to their deployment.

Why Choose L-Acoustics A10 Wide?

The L-Acoustics A10 Wide combines compact physical dimensions, high acoustic output and flexible directivity in a professional loudspeaker platform.

Its 10-inch low-frequency driver and 2.5-inch high-frequency compression driver provide a balanced 2-way system for professional sound reinforcement.

The 67 Hz to 20 kHz usable bandwidth covers a broad portion of the audible range, while the 137 dB maximum SPL specification provides the output required for demanding applications.

Panflex provides adjustable horizontal coverage, allowing system designers to adapt the loudspeaker to different audience geometries.

The 30° enclosure geometry also allows the A10 Wide to be used as part of a compact vertical line source.

For professional sound companies, this combination of flexibility and performance can make the A10 Wide useful across a wide range of productions.

Buy L-Acoustics A10 Wide in Excellent Condition

If you are looking for an L-Acoustics A10 Wide loudspeaker for a professional sound rental inventory, touring system, event production company or live sound setup, this unit is offered in excellent condition.

The L-Acoustics A10 Wide provides a professional 2-way passive loudspeaker solution with a 10-inch neodymium low-frequency driver, 2.5-inch neodymium compression driver, Panflex adjustable directivity and 67 Hz to 20 kHz usable bandwidth.

Its compact 20 kg enclosure and flexible deployment options make it suitable for professional applications where portability, coverage control and acoustic performance are important.

The A10 Wide can be used individually as a configurable point source or combined with other compatible A Series loudspeakers to create a scalable line source system.

It can also be integrated with compatible L-Acoustics subwoofers and amplified controllers to create a complete professional sound reinforcement system.

Customers can contact BSound Pro Audio for current availability, pricing, additional photographs, shipping options and further information about the specific L-Acoustics A10 Wide units available bsoundpa.com

For complete technical information, system configurations and manufacturer documentation, customers should consult the official L-Acoustics A10 Wide documentation https://www.l-acoustics.com/products/a10-wide

The L-Acoustics A10 Wide is a flexible professional loudspeaker designed for medium-throw applications, offering controlled coverage, high acoustic output and scalable deployment for touring, concerts, festivals, corporate events and professional sound reinforcement.
