d&b audiotechnik MAX2 Stage Monitor

d&b audiotechnik MAX2 Stage Monitor

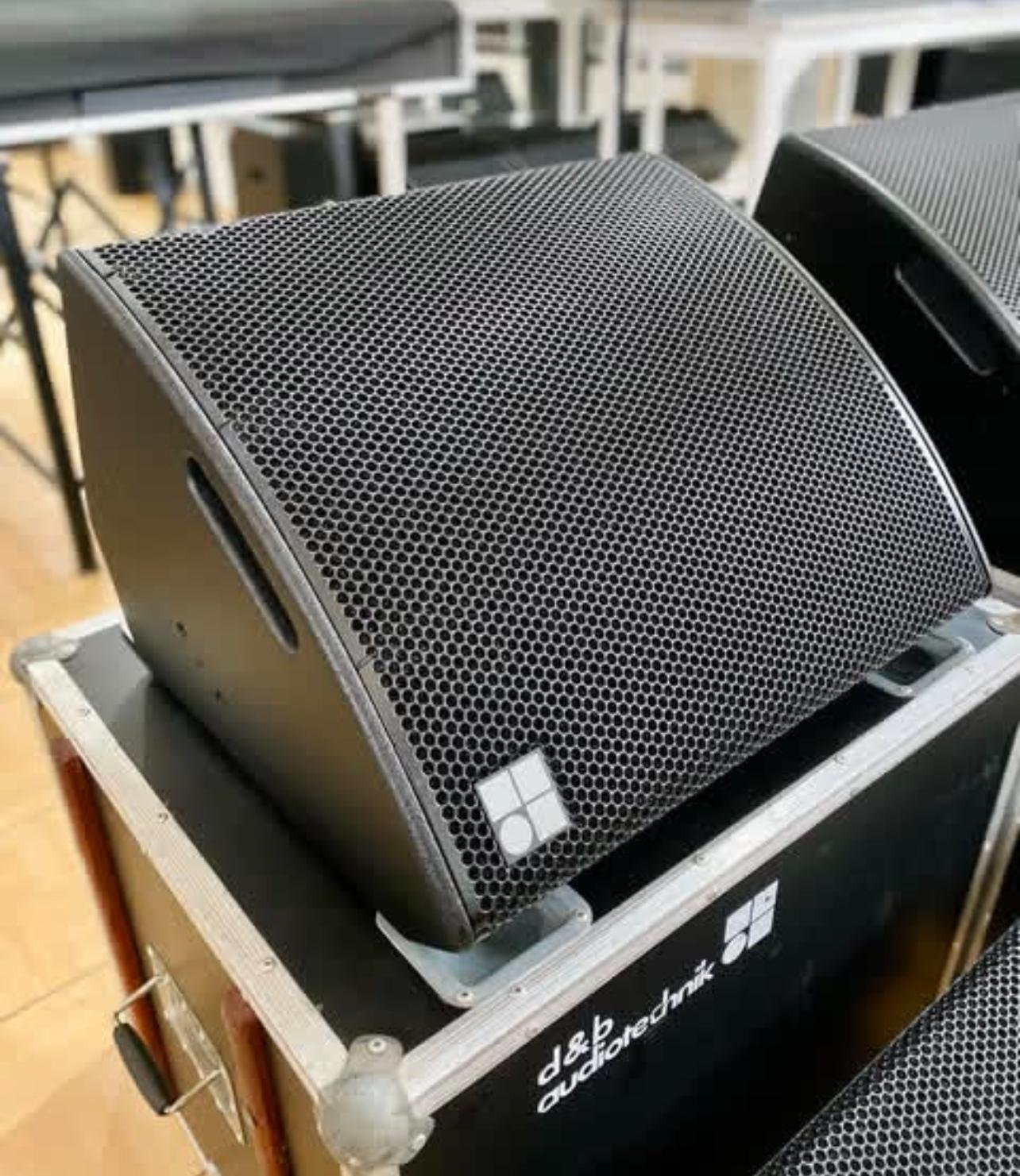

The d&b audiotechnik MAX2 stage monitor is a professional 2-way passive loudspeaker designed for demanding stage monitoring, live performance, touring, installation and small-format sound reinforcement applications. Combining a 15-inch low-frequency driver with a coaxially mounted 1.4-inch high-frequency compression driver, the MAX2 provides a compact monitoring solution with controlled 75° conical directivity, strong vocal presence and high acoustic output.

For professional performers, monitor engineers, production companies and sound rental businesses, a stage monitor must do more than simply produce high sound pressure. It needs to provide a clear and consistent listening area, remain practical to position on stage, withstand the physical demands of repeated use and integrate efficiently with a professional loudspeaker system. The d&b audiotechnik MAX2 has been designed around these requirements.

The MAX2 uses a coaxial driver arrangement in which the 1.4-inch HF compression driver is mounted concentrically with the 15-inch LF driver. According to d&b audiotechnik, this arrangement uses a single magnet assembly and allows the loudspeaker to maintain a compact, low-profile cabinet design while providing 75° constant directivity in the high-frequency range. (dbaudio.com)

The result is a professional stage monitor that can be positioned close to performers without occupying unnecessary stage space. Its relatively low cabinet profile and integrated design make it suitable for applications where clear performer monitoring, controlled coverage and practical stage positioning are important.

Professional 2-Way Stage Monitor Design

At the heart of the d&b audiotechnik MAX2 is a 2-way passive loudspeaker configuration consisting of a 15-inch LF driver and a coaxial 1.4-inch HF compression driver. The passive crossover network is integrated into the loudspeaker, allowing the MAX2 to operate as a complete passive monitor when used with an appropriate amplifier and the correct d&b loudspeaker configuration.

The 15-inch driver provides the low and mid-frequency reproduction required for vocals, instruments and full-range stage monitoring, while the coaxial 1.4-inch compression driver handles high-frequency reproduction from the same acoustic center.

This coaxial architecture is particularly useful for stage monitoring because the high-frequency and low-frequency sources originate from a common location. Rather than relying on separate drivers positioned at different areas of the cabinet, the MAX2 uses a compact coaxial arrangement to produce its intended directivity pattern.

The MAX2 is specified with a nominal 8 Ω impedance and a power handling capacity of 250 W RMS and 1600 W peak over 10 ms according to the current d&b audiotechnik specifications. (dbaudio.com)

75° Conical Dispersion

One of the defining characteristics of the d&b MAX2 is its 75° conical dispersion.

For performers, monitor engineers and production teams, predictable coverage is an important part of building an effective stage monitoring system. The MAX2’s 75° dispersion provides a broad, controlled coverage pattern that can be used to cover the intended performer listening area while maintaining the directional behavior expected from a professional stage monitor.

The coaxial driver configuration contributes to the compact form of the loudspeaker while providing the specified 75° conical directivity. This makes the MAX2 suitable for applications ranging from individual vocal monitoring to monitoring for musicians, bands, presenters and performers.

The controlled coverage also makes the MAX2 practical for professional sound engineers who need to position several monitors across a stage. Correct monitor placement and system configuration remain essential to achieving the best possible gain-before-feedback and tonal performance.

Clear Vocal Presence and Detailed Monitoring

A stage monitor needs to communicate information clearly to the performer. Vocalists need to hear their voice accurately, musicians need to hear their instruments and the monitor engineer needs to provide an intelligible mix without excessive coloration or unnecessary stage spill.

The d&b audiotechnik MAX2 was designed with vocal presence and clarity as important performance characteristics. d&b describes the MAX2 as providing remarkable vocal presence and clarity, while its coaxial design and controlled dispersion contribute to its intended monitoring performance. (dbaudio.com)

The official current specification gives the MAX2 a frequency response of 55 Hz to 20 kHz (-5 dB, standard configuration with floor coupling). (dbaudio.com)

This broad frequency range allows the MAX2 to reproduce vocals and instruments across a substantial portion of the audible spectrum. Depending on the application, system configuration and program material, the MAX2 can be used as an individual stage monitor or as part of a larger professional sound system.

High Output for Professional Stage Applications

The d&b MAX2 is designed for applications where performers need substantial acoustic output from a compact stage monitor.

The current d&b audiotechnik specification lists maximum sound pressure levels of 131 dB with the 10D amplifier and 135 dB with D25/25D, D40, D80, D90 or 40D amplification under the manufacturer’s stated measurement conditions. (dbaudio.com)

This output capability makes the MAX2 appropriate for demanding live environments where monitoring must remain audible in the presence of loud stage sources, amplified instruments and other sound reinforcement systems.

The actual acoustic level achieved in a venue depends on amplifier configuration, DSP settings, distance, acoustic environment, program material and other system variables. For this reason, the manufacturer’s specified SPL values should be understood within the measurement conditions provided by d&b audiotechnik.

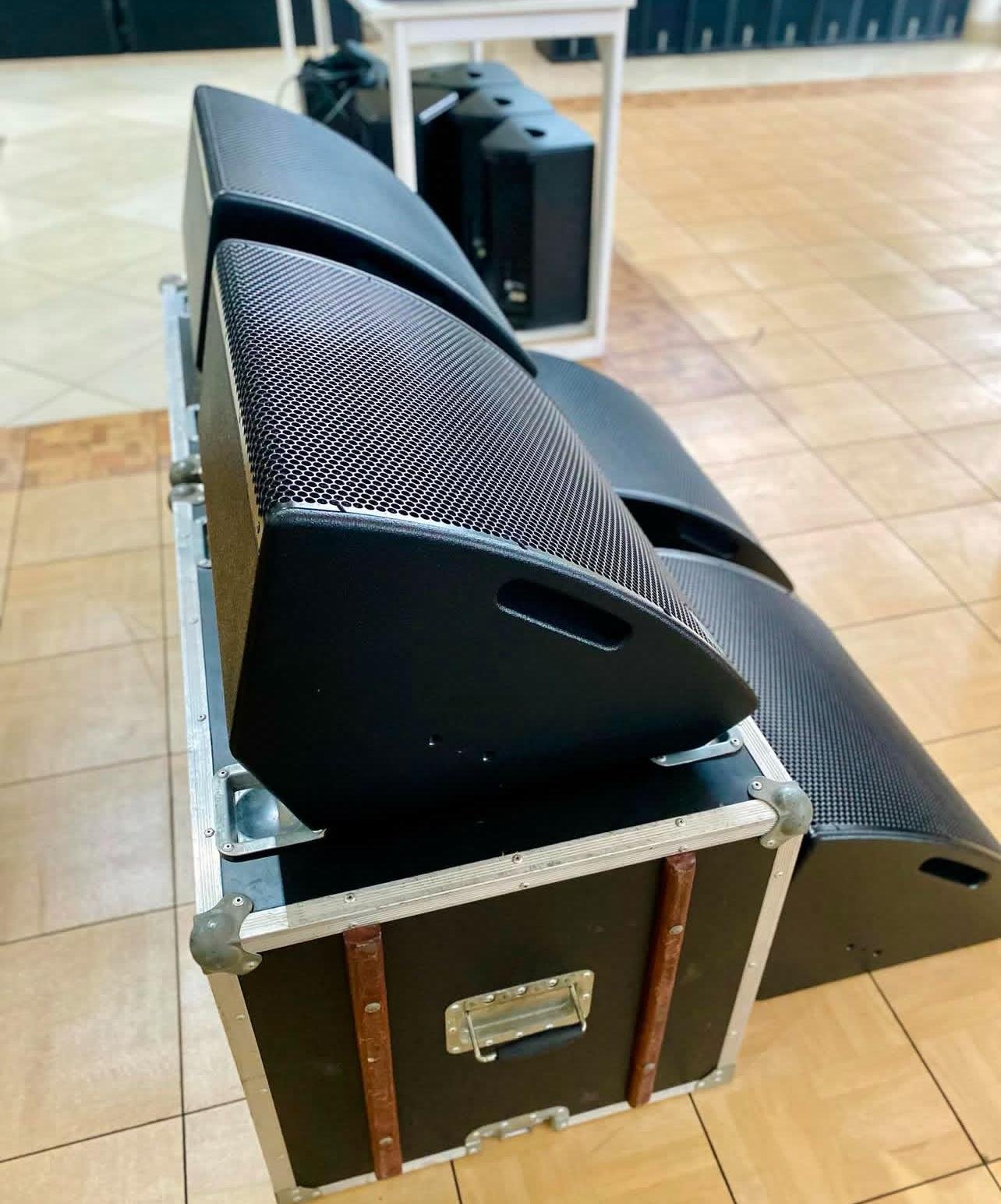

Compact Low-Profile Cabinet

Despite its 15-inch LF driver, the MAX2 has been designed around a relatively compact low-profile enclosure.

The current cabinet dimensions are approximately 354 mm high x 580 mm wide x 496 mm deep, with a listed weight of 23 kg / 50 lb. (dbaudio.com)

The compact enclosure is particularly useful for stage applications where equipment needs to remain visually unobtrusive and where available stage space is limited.

A lower-profile monitor can also be easier to integrate into a stage layout because it occupies less visual space than many conventional full-size loudspeaker cabinets. This makes the MAX2 suitable for professional concerts, touring productions, corporate events, houses of worship, clubs, theatres and other performance environments.

Rugged Marine Plywood Construction

Professional stage equipment must be capable of handling repeated transportation, setup and teardown. The MAX2 cabinet is constructed from marine plywood and finished with an impact-resistant paint. The front of the cabinet is protected by a rigid metal grille backed by acoustically transparent foam. (dbaudio.com)

This construction approach is designed for the realities of professional sound reinforcement. Stage monitors can be exposed to frequent handling, transportation, stage traffic and repeated setup cycles, making cabinet protection an important consideration for rental companies and touring productions.

The rigid front grille helps protect the loudspeaker components while allowing acoustic energy to pass through the cabinet’s front protection.

Practical Handling Features

The d&b MAX2 incorporates recessed handles into the cabinet design to assist with transportation and positioning.

At approximately 23 kg, the monitor is substantial enough for professional high-output applications while remaining manageable for stage crews and audio technicians.

The bottom of the cabinet also incorporates recessed runners. These help protect the cabinet from direct contact with the stage surface and help reduce unwanted movement when the monitor is positioned on the floor. (dbaudio.com)

These practical features are important for professional users because stage monitoring equipment is frequently moved between positions during setup and soundcheck.

Integrated Pole Mount

The MAX2 includes an integrated pole mount incorporated into one of its side panels.

This expands the possible applications beyond conventional floor monitoring. The loudspeaker can be used as a stand-mounted full-range system in suitable applications, allowing the MAX2 to function as a versatile loudspeaker rather than being restricted exclusively to floor monitoring.

d&b audiotechnik specifically identifies the MAX2 as suitable for use as an individual stage monitor, as a stand-alone full-range system and, when combined with d&b subwoofers, as a drumfill. (dbaudio.com)

This flexibility can be valuable for production companies and rental businesses that need loudspeakers capable of serving multiple roles within different events.

Full-Range and Drumfill Applications

Although the primary role of the MAX2 is stage monitoring, its design allows it to be used in additional professional sound reinforcement applications.

When used as a stand-alone loudspeaker, the MAX2 can provide full-range reproduction for appropriate smaller-format applications. When additional low-frequency output is required, the MAX2 can also be combined with suitable d&b subwoofer systems.

For larger stage productions, a MAX2 combined with a suitable d&b subwoofer can serve as a drumfill solution. This makes it possible to provide musicians with additional low-frequency energy in areas of the stage where conventional floor monitors may not provide sufficient bass extension or impact.

The exact configuration should always be designed according to the requirements of the application and the manufacturer’s recommended system configurations.

Designed for d&b Amplification

The MAX2 is designed to integrate with d&b audiotechnik amplifier systems.

Current compatible d&b amplifiers listed by the manufacturer include the D40, D80, D90 and D25 in mobile applications, as well as the 10D, 40D and 25D for installation applications. (dbaudio.com)

Using a compatible d&b amplifier provides access to the manufacturer’s loudspeaker-specific processing and system configuration approach. d&b states that specific setups in its amplifiers are used to provide the intended performance and headroom for the loudspeaker. (dbaudio.com)

The MAX2 can also be driven by an appropriate linear amplifier, according to d&b documentation. However, professional users should ensure that amplifier selection, DSP configuration, gain structure, limiter settings and wiring are appropriate for the loudspeaker.

Efficient System Integration

The MAX2 is rated at 8 Ω nominal impedance and the current manufacturer specification allows up to two MAX2 cabinets per amplifier channel under the stated configuration. (dbaudio.com)

This can help professional sound companies build efficient monitor systems where multiple cabinets need to be deployed across a stage.

The appropriate amplifier configuration should always be determined from the current d&b documentation and the specific amplifier being used. Heritage amplifier compatibility may differ from current amplifier compatibility, so users working with older d&b equipment should consult the relevant amplifier firmware release notes and manufacturer documentation.

Professional Live Sound Applications

The d&b audiotechnik MAX2 is suitable for a wide range of professional applications.

Typical applications include:

* Concert stage monitoring
* Touring productions
* Live bands
* Vocal monitoring
* Theatre productions
* Corporate events
* Houses of worship
* Nightclubs
* Performance venues
* Sporting venues
* Multipurpose event spaces
* Rental and production companies
* Small-format PA systems
* Drumfill applications
* Full-range stand-mounted applications

Its combination of a 15-inch LF driver, coaxial 1.4-inch HF compression driver, 75° dispersion and compact enclosure makes it suitable for applications where a professional monitor must provide both high output and practical stage integration.

Ideal for Touring and Rental Companies

For professional rental companies, equipment versatility is an important consideration.

A loudspeaker that can perform multiple roles can be deployed across different productions without requiring a completely different inventory for every application. The MAX2 can function as a stage monitor, stand-mounted full-range loudspeaker or component of a drumfill configuration when used with suitable d&b subwoofers.

Its rugged marine plywood cabinet and impact-resistant finish are also appropriate for professional production environments where equipment may be transported and handled frequently.

The integrated handles, pole mount, protective grille and recessed runners further contribute to its practical design.

Suitable for Vocal Monitoring

The MAX2 is particularly relevant for vocal monitoring applications where clarity and controlled coverage are important.

A vocalist needs to hear their own voice with sufficient level and intelligibility while avoiding unnecessary acoustic energy being directed into microphones. The MAX2’s 75° conical directivity and coaxial driver arrangement provide the characteristics required for a professional stage monitoring solution.

As with any monitor system, microphone selection, placement, stage volume, equalization, system orientation and room acoustics all influence feedback stability and overall performance. The MAX2 should therefore be integrated as part of a complete professional monitor system rather than treated as an isolated solution.

Suitable for Musicians and Live Performers

The MAX2 can be used for monitoring a broad range of performers and musicians.

It can be positioned for vocalists, guitarists, keyboard players, presenters and other performers who require a dedicated monitor mix.

Its 15-inch low-frequency driver provides the low and mid-frequency foundation needed for a wide range of program material, while the coaxial HF section provides high-frequency information necessary for vocal intelligibility, instrument definition and monitoring detail.

The broad 55 Hz to 20 kHz (-5 dB) frequency response specified by d&b makes the MAX2 capable of reproducing a substantial full-range spectrum when configured appropriately. (dbaudio.com)

Professional Build Quality

The d&b audiotechnik MAX2 reflects the company’s professional approach to loudspeaker design, combining acoustic performance with practical mechanical construction.

The enclosure uses marine plywood rather than a lightweight consumer-style cabinet construction. Its impact-resistant finish, rigid front grille, acoustic foam protection and integrated handling features are designed around professional production environments.

For a touring or rental inventory, these considerations can be just as important as the acoustic specifications because loudspeakers are frequently transported, installed, removed and stored.

MAX2 for Houses of Worship and Installed Applications

The MAX2 can also be used in houses of worship and other fixed or semi-permanent applications where performer monitoring is required.

Its compact footprint allows it to be positioned around stages without unnecessarily dominating the visual appearance of the performance area.

The monitor can also be integrated into broader d&b system designs using compatible installation amplification such as the 10D, 25D and 40D listed by d&b audiotechnik. (dbaudio.com)

For permanent installations, system designers should select mounting hardware and installation methods according to the manufacturer’s documentation and the requirements of the venue.

Mounting and Rigging Options

The MAX2 cabinet incorporates four M10 threaded inserts for connection to suitable flying or mounting hardware. d&b lists accessories including the Z5043 MAX Horizontal Bracket, Z5044 MAX Bracket Connector and Z5025 and Z5020 flying adapters. (dbaudio.com)

The availability and suitability of individual accessories depend on the intended installation. Any overhead or flown application should be engineered and installed using approved hardware and appropriate safety procedures.

For standard stage monitoring, the cabinet can be placed directly on the floor using its intended monitor orientation.

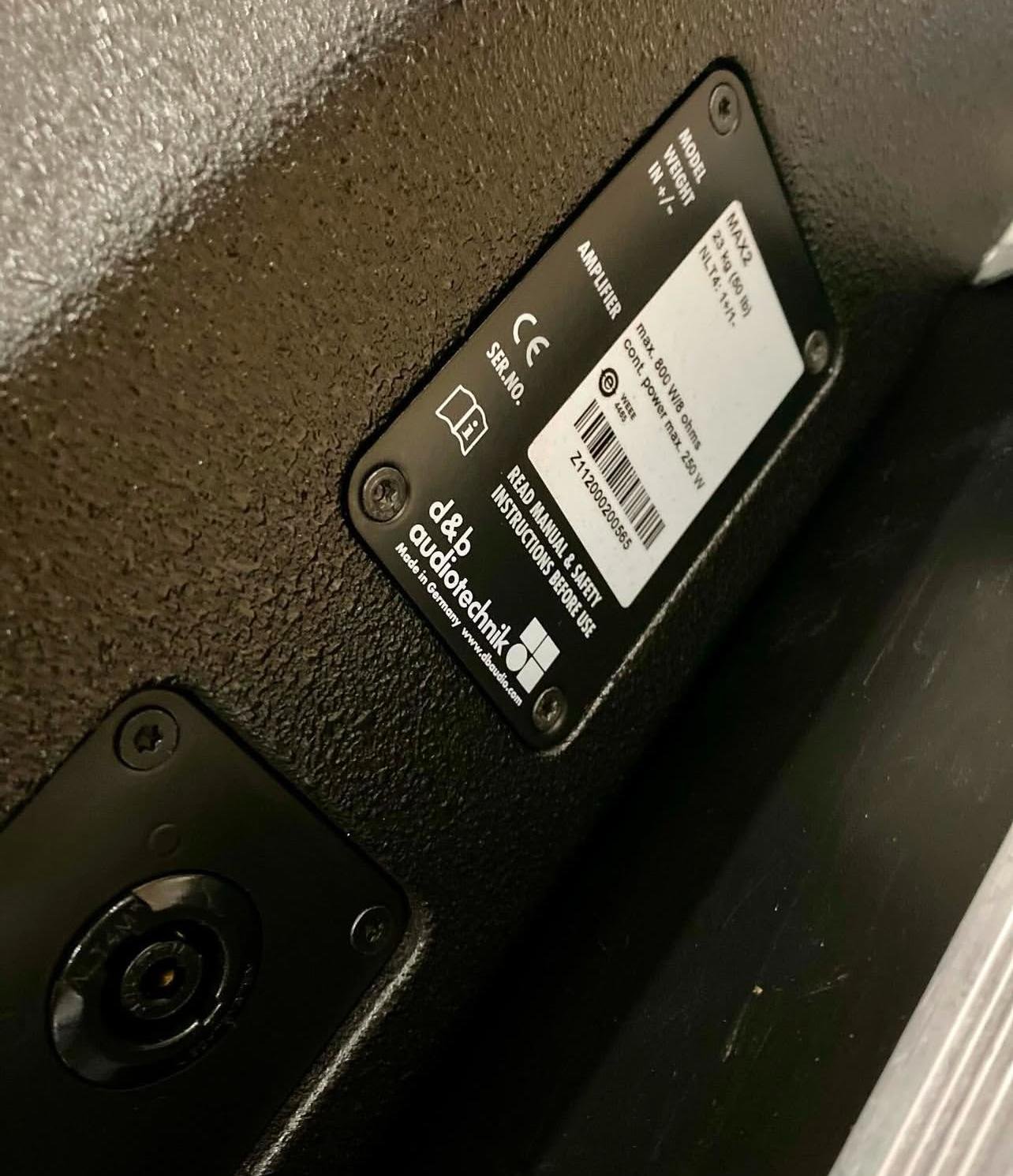

Connections

The current MAX2 specification lists 2 x NLT4 F/M connections, with 2 x NL4 available as an optional connection configuration. (dbaudio.com)

These professional loudspeaker connections provide the connectivity required for integration into professional touring and installation systems.

Before purchasing or installing a MAX2, buyers should confirm the exact connector configuration of the specific units being offered, particularly when purchasing used or pre-owned equipment.

MAX2 Technical Specifications

The current d&b audiotechnik specifications include:

Product: d&b audiotechnik MAX2
Configuration: 2-way passive stage monitor
LF driver: 15-inch driver with ferrite magnet
HF driver: Coaxial 1.4-inch exit compression driver
Crossover: Passive crossover network
Nominal impedance: 8 Ω
Power handling: 250 W RMS / 1600 W peak, 10 ms
Nominal dispersion: 75° conical
Frequency response: 55 Hz–20 kHz (-5 dB, standard with floor coupling)
Maximum SPL: Up to 135 dB depending on amplifier configuration
Dimensions: 354 x 580 x 496 mm
Weight: 23 kg / 50 lb
Connections: 2 x NLT4 F/M, optional 2 x NL4
Pole mount: Integrated
Cabinet: Marine plywood
Front protection: Rigid metal grille with acoustically transparent foam
Rigging/mounting: Four M10 threaded inserts

These specifications are based on the current information published by d&b audiotechnik. (dbaudio.com)

Why Buy a d&b audiotechnik MAX2 Stage Monitor?

The MAX2 is designed for buyers who require a professional stage monitor capable of delivering high acoustic output while maintaining a practical physical footprint.

Its 15-inch low-frequency driver provides substantial low-frequency capability, while the coaxial 1.4-inch HF compression driver provides high-frequency reproduction from the same acoustic center.

The 75° conical dispersion provides controlled coverage, while the compact marine plywood enclosure provides a practical solution for professional stage environments.

For rental companies, touring productions, venues, production companies and professional sound engineers, the MAX2 can also provide flexibility because it is not limited exclusively to floor monitoring. It can be used as a stage monitor, stand-mounted full-range system or as part of a drumfill configuration when paired with suitable d&b subwoofers.

Buy d&b audiotechnik MAX2 Stage Monitors

If you are looking for professional d&b audiotechnik MAX2 stage monitors for live sound, touring, installation or production use, the MAX2 offers a combination of high output, controlled 75° dispersion, coaxial driver technology and rugged professional construction.

The MAX2 is especially suitable for professional audio companies that need dependable monitoring equipment for concerts, festivals, corporate productions, theatres, houses of worship, clubs and touring applications.

When purchasing professional loudspeakers, it is important to verify the exact condition, connector configuration, included accessories and amplifier requirements before completing your order. For used or pre-owned MAX2 monitors, buyers should also confirm the physical condition of the cabinet, grille, drivers, connectors and mounting points.

At Bsound Pro Audio, you can contact our team to discuss available d&b audiotechnik MAX2 stage monitors, quantities, condition, accessories, amplifier compatibility and shipping options.

Whether you are upgrading an existing monitor inventory or building a complete professional sound reinforcement system, the d&b MAX2 provides a versatile platform for professional stage monitoring and small-format sound reinforcement.

Contact Bsound Pro Audio today to check current availability, pricing and delivery options for d&b audiotechnik MAX2 stage monitors.

For additional technical information, always refer to the manufacturer’s current documentation and specifications from d&b audiotechnik.

Frequently Asked Questions About the d&b audiotechnik MAX2

What is the d&b audiotechnik MAX2?

The d&b audiotechnik MAX2 is a 2-way passive stage monitor featuring a 15-inch low-frequency driver and a coaxially mounted 1.4-inch high-frequency compression driver. It is designed for professional stage monitoring, live performance and additional sound reinforcement applications. (dbaudio.com)

What size drivers are used in the MAX2?

The MAX2 uses a 15-inch LF driver and a coaxial 1.4-inch HF compression driver. The LF driver uses a ferrite magnet and the HF driver is mounted coaxially with the LF driver. (dbaudio.com)

What is the dispersion of the MAX2?

The d&b MAX2 has a nominal 75° conical dispersion. (dbaudio.com)

What is the frequency response of the MAX2?

The current manufacturer specification lists a frequency response of 55 Hz to 20 kHz at -5 dB under the standard floor-coupled measurement condition. (dbaudio.com)

How loud is the d&b MAX2?

Maximum SPL depends on the amplifier and system configuration. d&b lists 131 dB with the 10D and up to 135 dB with D25/25D, D40, D80, D90 or 40D under its specified measurement conditions. (dbaudio.com)

What is the impedance of the MAX2?

The MAX2 has a nominal impedance of 8 Ω. (dbaudio.com)

What is the power handling of the MAX2?

The MAX2 is specified at 250 W RMS / 1600 W peak for 10 ms. (dbaudio.com)

What amplifiers can power the MAX2?

Current d&b amplifier options listed for the MAX2 include the D40, D80, D90 and D25 for mobile applications, plus the 10D, 40D and 25D for installation applications. (dbaudio.com)

Can the MAX2 be used without a d&b amplifier?

d&b documentation states that the MAX2 can also be driven by an appropriate linear amplifier. However, professional users should ensure that the amplifier provides suitable power and that the system is configured correctly for the loudspeaker. (dbaudio.com)

Can the MAX2 be used as a PA speaker?

Yes. The MAX2 can be used as a stand-alone full-range system in suitable applications. Its integrated pole mount allows it to be used on a loudspeaker stand where appropriate. (dbaudio.com)

Can the MAX2 be used as a drumfill?

Yes. d&b identifies the MAX2 as suitable for drumfill applications when combined with appropriate d&b subwoofers. (dbaudio.com)

How much does the MAX2 weigh?

The MAX2 weighs approximately 23 kg / 50 lb. (dbaudio.com)

What are the dimensions of the MAX2?

The current manufacturer specification lists dimensions of approximately 354 x 580 x 496 mm. (dbaudio.com)

Does the MAX2 have a pole mount?

Yes. The MAX2 incorporates a pole mount into one of its side panels, allowing suitable stand-mounted applications. (dbaudio.com)

Is the MAX2 suitable for touring?

The MAX2 is designed for professional sound reinforcement and includes a marine plywood cabinet, impact-resistant finish, recessed handles and protective grille. These features make it suitable for professional touring and rental environments when transported and handled correctly. (dbaudio.com)

What type of connector does the MAX2 use?

The current specification lists two NLT4 F/M connections, with an optional two NL4 configuration. Buyers should confirm the exact connector configuration on the units being purchased. (dbaudio.com)

Is the MAX2 a passive or active monitor?

The MAX2 is a 2-way passive stage monitor. It uses an integrated passive crossover network and is powered from an external amplifier. (dbaudio.com)

Is the MAX2 suitable for vocals?

Yes. The MAX2 was designed for stage monitoring and is specified by d&b with characteristics including vocal presence and clarity. Its 75° conical dispersion and coaxial driver arrangement make it suitable for professional vocal monitoring applications. (dbaudio.com)

Who should buy the d&b MAX2?

The MAX2 can be suitable for professional sound rental companies, touring productions, venues, theatres, houses of worship, live bands, production companies, monitor engineers and other professional users requiring a high-output passive stage monitor.

Order Your d&b audiotechnik MAX2

The d&b audiotechnik MAX2 stage monitor combines a 15-inch LF driver, coaxial 1.4-inch HF compression driver, 75° conical dispersion, professional construction and flexible deployment options in a compact enclosure.

If you need MAX2 monitors for a touring rig, rental inventory, live venue, installation or professional production system, contact Bsound Pro Audio for current availability, pricing, quantities and shipping information.

Request a quotation today and speak with our sales team about your d&b MAX2 requirements.
